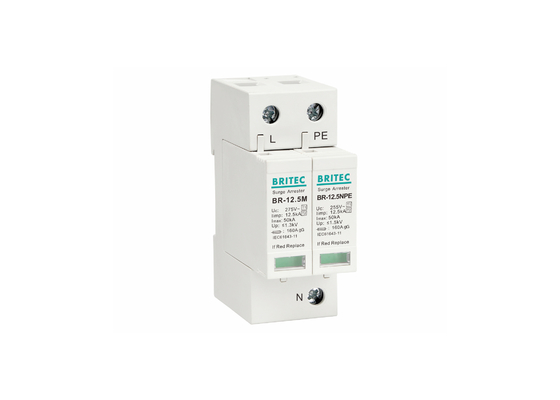

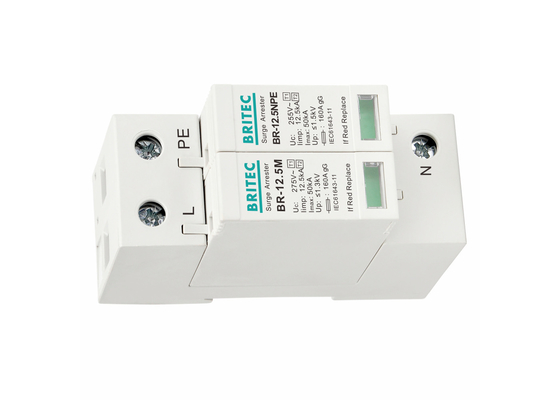

Single Phase Low Voltage Lightning Protection Surge Arrester AC SPD

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-12.5M 275 1+1

Payment & Shipping Terms:

Minimum Order Quantity:	500 Piece/Pieces
Price:	USD 2.5-5 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Product Name:	Surge Arrester	Type:	Low Voltage
Material:	Thermal Plastic	Uc:	275V
Iimp:	12.5kA	In:	20kA
Imax:	50kA	Application:	Single Phase
For Mounting On:	35mm Din Rail	Class:	Type 1+2
Highlight:	lightning protection device , lightning surge protector

High Quality Single Phase Low Voltage Lightning Surge Arrester AC275 SPD Power

Single Phase Low Voltage Lightning Surge Arrester Feature:

• Plug design, easy maintenance.

• Nanosecond level speed of response.

• High security performance.

• Green light in notice window indicates normal; red indicates broken, replacement notice, which is clear and easy distinguished.

• Optional remote signaling monitoring interface.

Single Phase Low Voltage Lightning Surge Arrester Technical data:

	BR-12.5M 275 1+1
SPD classification according to EN61643-11	Type 1 + Type 2
Max. continuous operating a.c. voltage Uc	275V
Lightning impulse current (10/350us) Iimp	12.5kA
Nominal discharge current (8/20us) In	20kA / 40kA
Max. discharge current (8/20us) Imax	50kA / 70kA
Voltage protection level Up	≤1.3kV / ≤1.5kV
Operating state / fault indication	green / red
Remote signal contacts	Optional
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
For mounting on	35mm Din rail
Note	Max.Continuous operating voltage optional: 150V, 275V and 320V

Dimension:

Single Phase Low Voltage Lightning Protection Surge Arrester AC SPD 0

Single Phase Low Voltage Lightning Surge Arrester Application:

Applied to equipotential bonding of the main low voltage distribution boxes in the building, providing overvoltage protection arising from the class B+C lightning strike to power supply system or disoperation.

Workshop:

Single Phase Low Voltage Lightning Protection Surge Arrester AC SPD 1

Company Information:

Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

Single Phase Low Voltage Lightning Protection Surge Arrester AC SPD 2

FAQ:

Q1: How long is your products warranty?
A: The warranty period of our products is 2 Years.

Q2: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.

Q3: Are you trading company or manufacturer?
A: We are factory.
