Place of Origin: | China |
Brand Name: | BRITEC |
Model Number: | BR-25GR 4P |
Minimum Order Quantity: | 100 Piece/Pieces |
---|---|
Price: | USD 45-120 Piece/Pieces |
Packaging Details: | EXPORT PACKING |
Delivery Time: | Shipped in 15 days after payment |
Payment Terms: | T/T |
Supply Ability: | 50000 Piece/Pieces Month |
Type: | Ac Surge Protector | Material: | Plastic |
---|---|---|---|
Item Name: | Surge Protective Device | Pole Number: | 1P,2P,3P,4P,1+1,3+1 |
Uc: | 385V | Iimp: | 25kA |
Tu: | -40℃-80℃ | Brand Name: | BRITEC |
Application: | Surge Arrester Is Suitable For Three-phase TN-S System | Certificate: | TUV/SEMKO/CB/CE/ROHS/ISO9001 Approved Standard |
Highlight: | industrial surge protection devices,ac surge protection device |

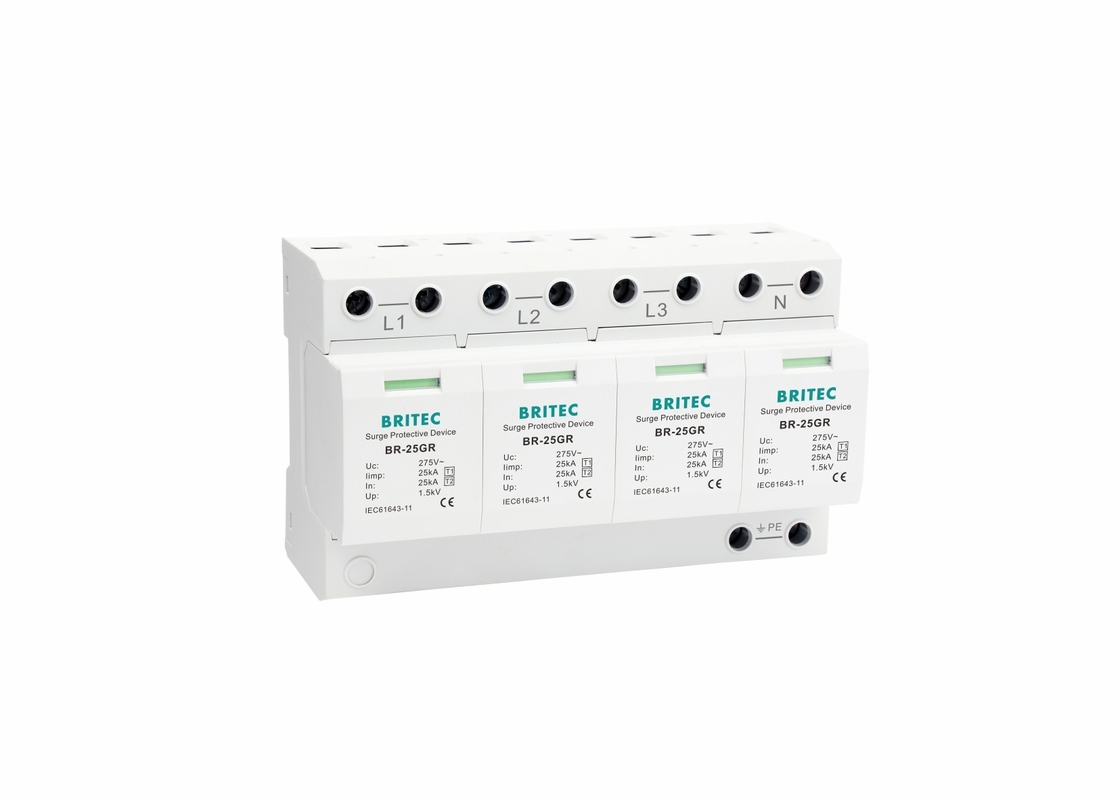

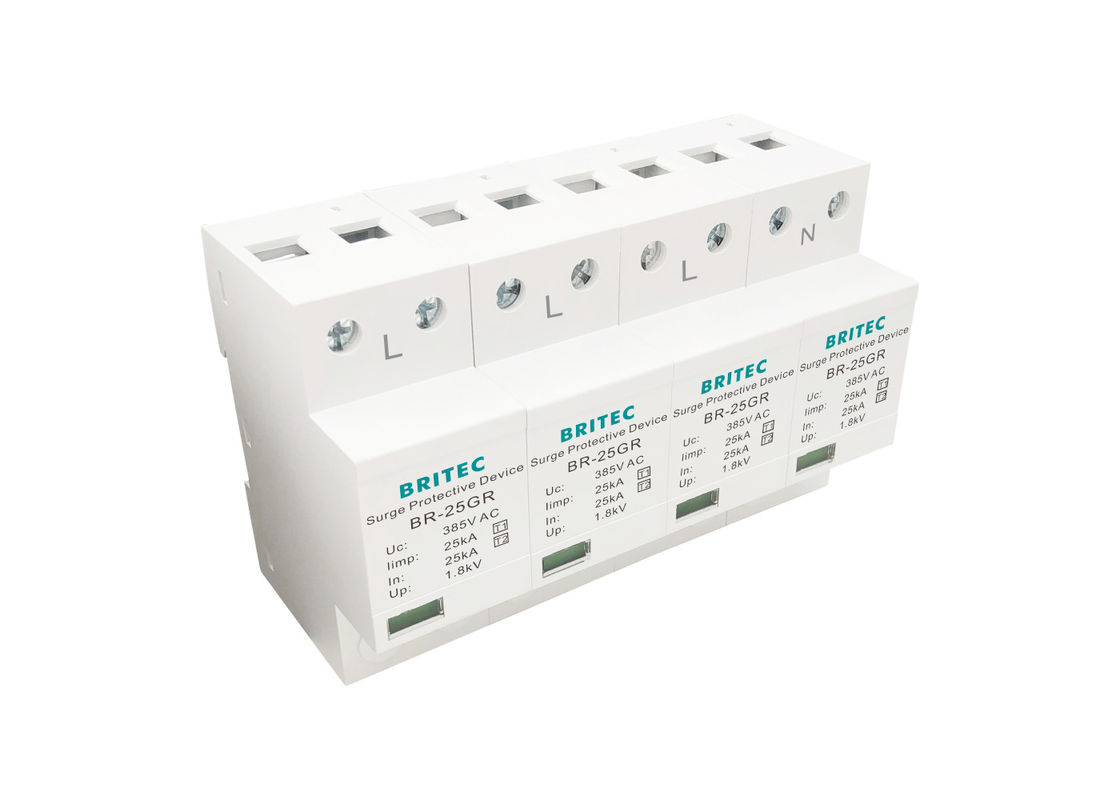

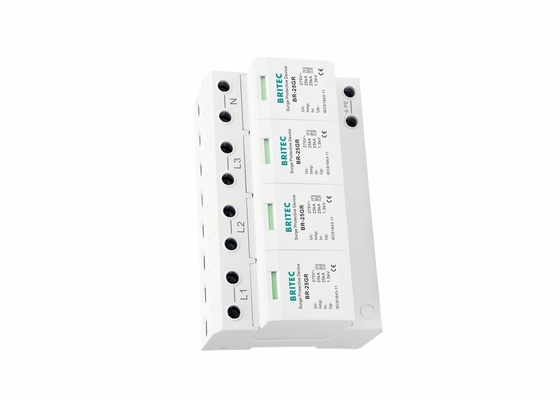

25kA Three Phase 4P Type 1 Class I Lightning Surge Protector Product characteristics:
Specification | BR-25GR 4P |
Item name | Surge Arrester |
SPD dassification according to EN61643-11 | Type 1 |
SPD dassification according to IEC61643-11 | Class I |
Max continuous 0perating a.c. voltage Uc | 385V |
Lightning impulse current (10/350µs) limp | 25kA |
Norminal discharge current (8/20µs) In | 25kA |
Voltage protection level Up | ≤1.8kV |
Follow current extinguishing capability a.c. lifi | 25kA rms |
Max. backup fuse | 315A gG |
Response time tA | ≤100ns |
For mounting on | 35mm Din rail |
Degree of protection | IP20 |
Operating temperature range Tu | -40℃—80℃ |
Cross-section area (Min.) | 4mm² |
Cross-section area (Max.) | 35mm² |
Enclosure material | Thermal plastic UL94-V0 |
Dimension:
Production line:
Britec owns international advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer,that is why technical level of our products can be reached to the domestic advanced,we also can help customer OEM/ODM.
Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
Britec Offering over 30 kinds of SPD products which has CE, RoHS,TUV certification.The company pass the approval of ISO9001 already.
Q1: How about your experience?
A1: We have our own professional factory and R&D department & more than 17 years producing experience.
Q2: What's your advantage?
A2: We can make by ourselves from the inside to outside. It greatly increase efficiency and save the cost.
Q3: What's the standard of package?
A3: Inner box and out carton are made as per international standard and we can make special design according to customer's need.
Q4: Could you do OEM for us?
A4: Sure, we accept OEM order, please supply with the brand letter of Authorization.
Q5: How about warranty?
A5: According to the actual situation. Each product will be different warranty, please contact us.
Q6: Could I buy 1pc sample first and small order?
A6: Of course, support sample order and small order, especially for new customers under certain condition.
Q7: How long make a sample?
A7: If we have stock, weI'll send you at once.
Q8: How does your company do regarding the quality control?
A8: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packing and shipping.
