| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV |
| Model Number: | BR-25GR 385 1P |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protective Device | Material: | Plastic |
|---|---|---|---|
| Pole Number: | 1P | UC: | 385V |
| Limp: | 25kA | In: | 25kA |
| Up: | 2.0kV | Type: | Ac Surge Protector |
| Certificate: | TUV/CE/ROHS/ISO9001 | Brand Name: | Britec |
| Highlight: | industrial surge protection devices,type 1 surge protector |
||

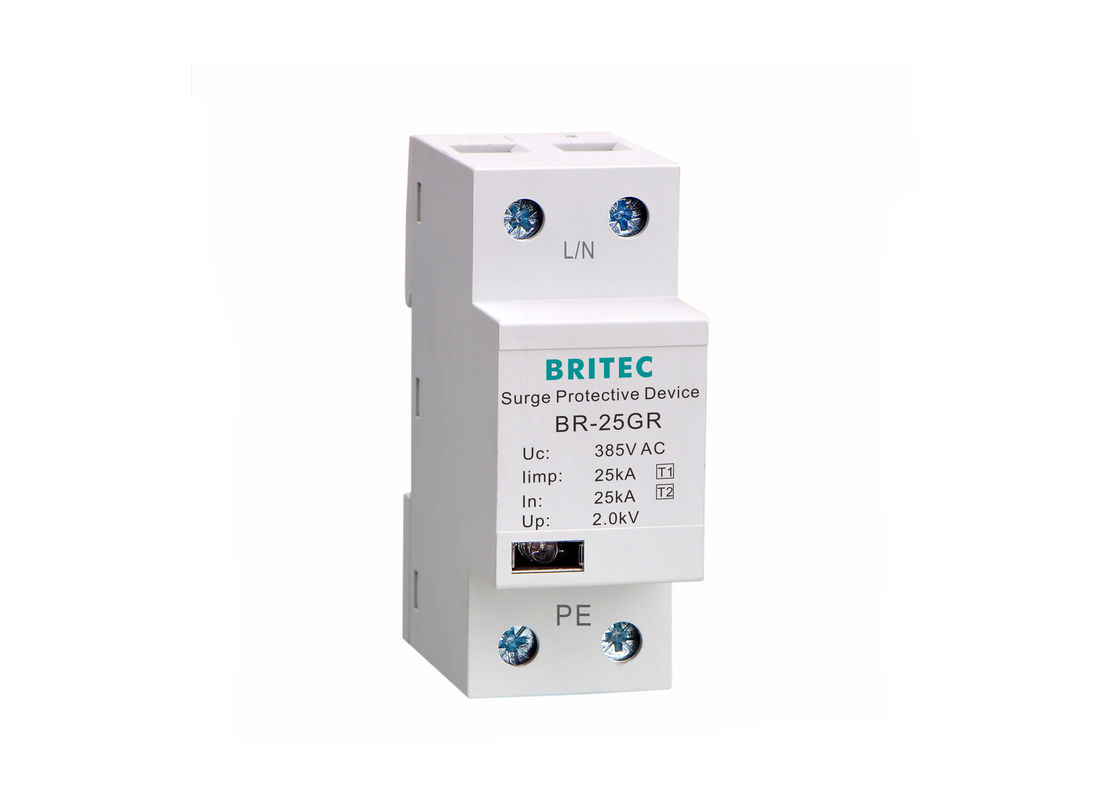

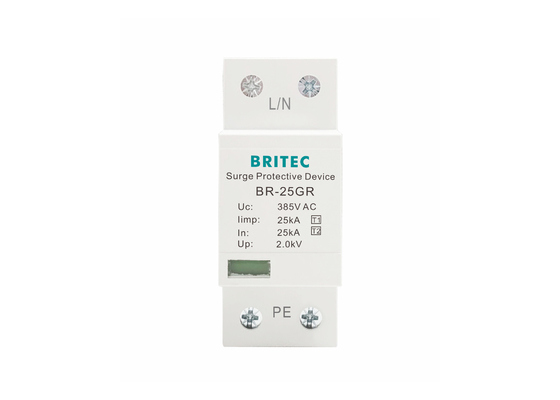

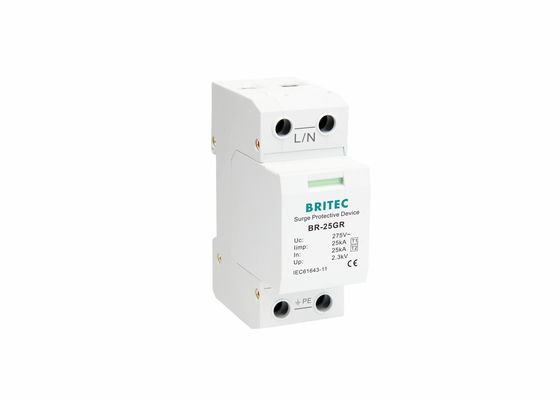

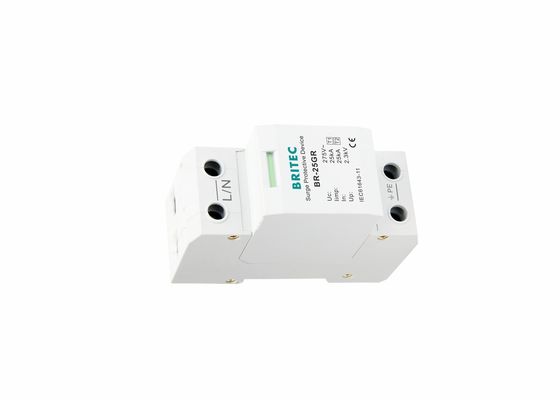

25KA Low Voltage Surge Protector 1 P Plastic Lightning Surge Arrester One Phase
25KA Low Voltage Surge Protector Technology characteristic:
| Specification | BR-25GR 1P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 |
| SPD dassification according to IEC61643-11 | Class I |
| Max continuous 0perating a.c. voltage Uc | 385V |
| Lightning impulse current (10/350µs) limp | 25kA |
| Norminal discharge current (8/20µs) In | 25kA |
| Voltage protection level Up | ≤2.0kV |
| Follow current extinguishing capability a.c. lifi | 5kA rms |
| Max. backup fuse | 315A gG |
| Response time tA | ≤100ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm² |
| Cross-section area (Max.) | 35mm² |
| Enclosure material | Thermal plastic UL94-V0 |
Dimension:
25KA Low Voltage Surge Protector Application:
|
Wenzhou Britec Electric Co., Ltd.
• Headquarters add: Yueqing city, Zhejiang province.
• Produce: Low voltage surge arrester.
• Found in 2003.
• Market: Europe, Southeast Asia, Africa, Mid-east regions, South America etc. |
|
Q1. What's the payment term?
A. We accept TT, 30% deposit and 70% balance before shippment.
Q2. How's the delivery time?
A. Usually it will take about 20 days for production.
Q3. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do OEM.
Q4.Where is your market?
A. Our products are popular in Spain, UK, France, Brazil, Bolivia, Malaysia and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q5. What kind of certificate you have?
A. Our company already achieve ISO9001, and for products, we have CE, CB, and TUV etc.
