| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV |
| Model Number: | BR275-10DP 3P+NPE |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Arrester | Type: | Ac Surge Protector |
|---|---|---|---|
| Material: | Plastic | Pole Number: | 3P+NPE |
| Brand Name: | Britec | Certificate: | TUV/CE/ROHS/ISO9001 |
| Tu: | -40℃-80℃ | Uc: | 275V |
| Imax: | 10kA | Up: | 1.1kV |
| Highlight: | type 3 surge protector,ac surge protector |
||

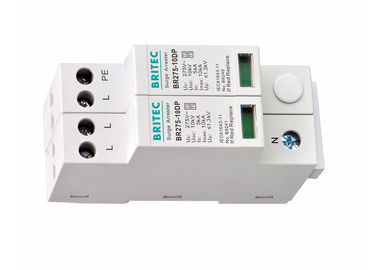

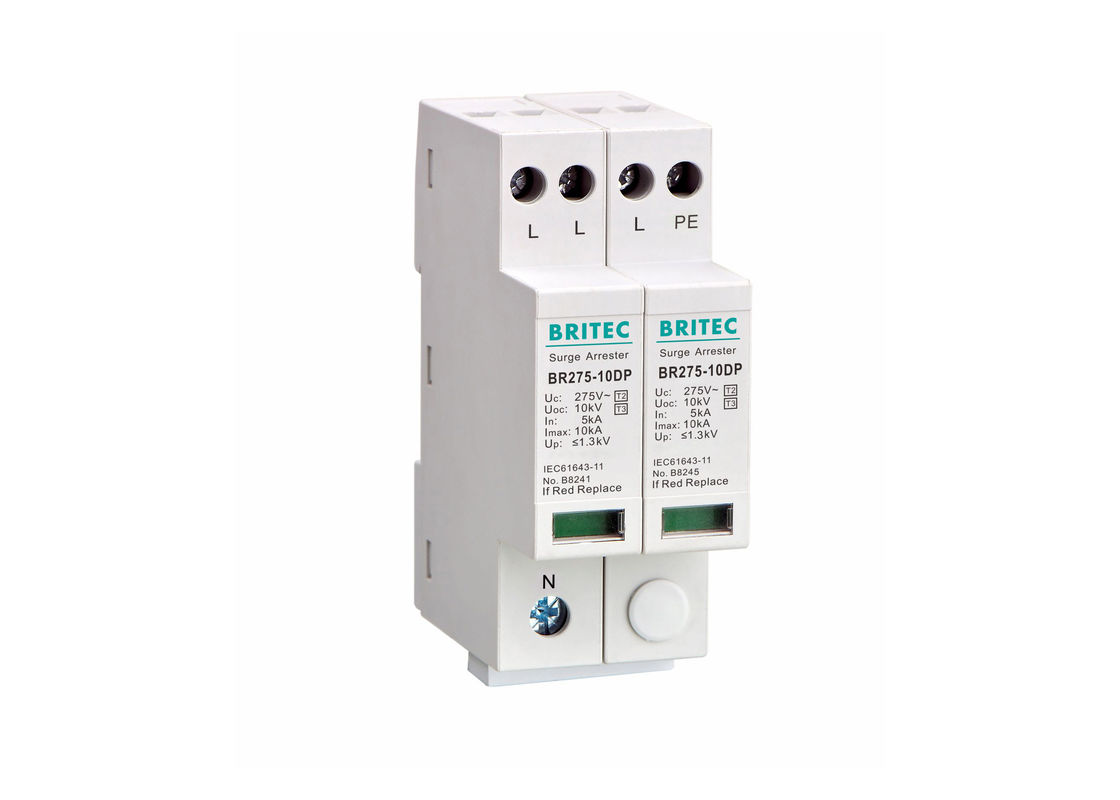

275V Single Phase Type 3 Surge Protection Device TUV certificated BR275-10 3P+NPE
Protecting low-voltage consumers' installations against indirect lightning discharges.
High performance varistor with thermal disconnection tripping device.
Protection class: Type 3, Class III.
Pole number: 3P+NPE.
Surge areeare used to guard sensitive equipments from voltage spike.
Three Phase Surge Protective Device Technology characteristic:
| Specification | BR275-10DP 3P+NPE |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 3 |
| SPD dassification according to IEC61643-11 | Class III |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Norminal discharge current (8/20µs) In | 5kA |
| Combined impulse Uoc | 10kV |
| Voltage protection level Up | ≤1.1kV |
| Response time tA | ≤25ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 2.5mm² |
| Cross-section area (Max.) | 16mm² |
| Enclosure material | Thermal plastic UL94-V0 |
Company information:
Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
Certificate:
Shipping & payment:
Test equipment:
Workshop:
FAQ:
Q1: Are you a manufacturer?
A: Yes, we are a professional manufacturer of SPD.
Q2: What is MOQ of this product in your company?
A: MOQ is 100 pcs. If less, please contact us first.
Q3: What is the delivery time in your company for this product?
A: In general, the delivery time is 20 days. If tight, please contact us. We will arrange production for you as per mutual benefit.
Q4: What is the payment in your company?
A: By TT. Other payment can be accepted after confirmed.
Q5: Can you pack this product with our brand logo?
A: Customized brand logo is welcome with design in CDR form.
Q6: Can we design our special package for this product?
A: Customized package is welcome.
Q7: What shipment is it to our destination?
A: In general, we ship the goods by sea, air, or express.
Q8: Could you provide the OEM product?
A: Yes, we offer all kinds of OEM services.
