Home ProductsPower Surge Protection Device

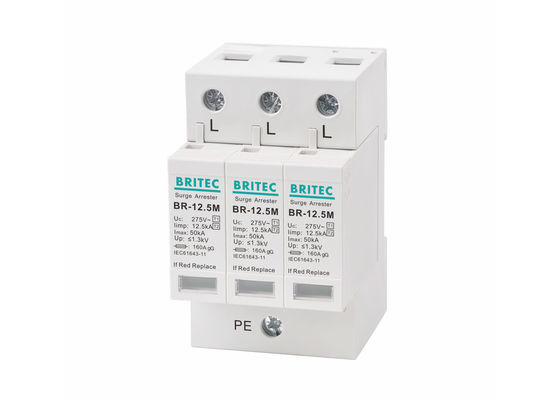

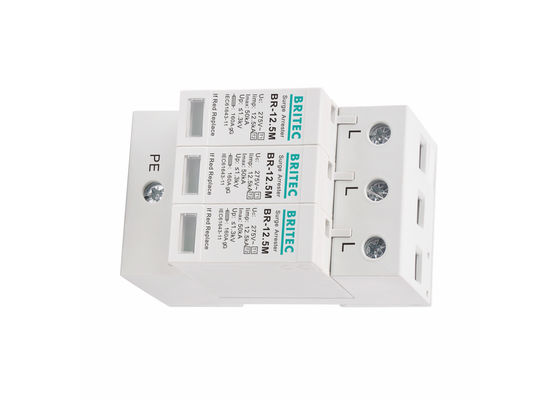

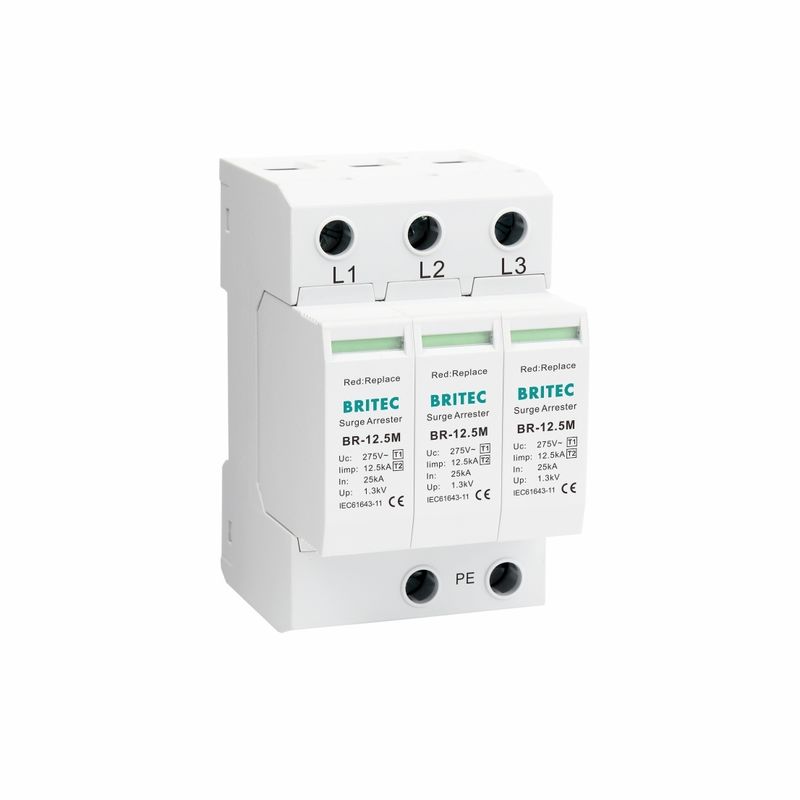

275Vac 12.5kA 3 Poles Spd For Lightning Protection Type 1+2/ Class I+II

275Vac 12.5kA 3 Poles Spd For Lightning Protection Type 1+2/ Class I+II

275Vac 12.5kA 3 Poles Spd For Lightning Protection Type 1+2/ Class I+II
275Vac 12.5kA 3 Poles Spd For Lightning Protection Type 1+2/ Class I+II
275Vac 12.5kA 3 Poles Spd For Lightning Protection Type 1+2/ Class I+II
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-12.5M 3P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protection Place Of Origin: Zhejiang, China (Mainland)
Brand Name: BRITEC Model Numbers: BR-12.5M 3P
Uc: 275V Safety Standard: IEC61643-1
Pole Number: 3P Iimp: 12.5kA
In: 20kA Imax: 50kA
Highlight:

lightning protection device

,

power surge arrester

Lightning System 275Vac 12.5kA 3Poles SPD Surge Protection Type 1+2/Class I+II



275Vac 12.5kA 3 Poles Spd For Lightning Protection Features:



• Pluggable module.
• Three-phase protection for TN-C system.
• Selection of high-quality varistors, stable and reliable performance.
• High lightning current capability, fast response speed.
• Failure detection indication, green window will change when fault.
• Optional remote signaling.
• 35mm rail mounting, standard modular design.
• Easy installation, no special maintenance.



275Vac 12.5kA 3 Poles Spd For Lightning Protection Technology characteristic:



  BR-12.5M 275 3P
Max. continuous operating a.c. voltage                       Uc 275V
Lightning impulse current (10/350us)                        Iimp 12.5kA
Nominal discharge current (8/20us)                              In 20kA
Max. discharge current (8/20us)                               Imax 50kA
Voltage protection level                                               Up ≤1.3kV
Response time                                                              tA ≤25ns
Max. backup fuse 160A
Operating temperature range                                       Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                   Thermal plastic UL94-V0
Dimension 3mods
Test standards IEC 61643-1



Dimension:



275Vac 12.5kA 3 Poles Spd For Lightning Protection Type 1+2/ Class I+II 0



275Vac 12.5kA 3 Poles Spd For Lightning Protection Application:



• Protecting low voltage equipment from surge damages.
• Applied in modular SPD Class I+II (Class B+ C) for TN-C power supply system.

Shipping:

275Vac 12.5kA 3 Poles Spd For Lightning Protection Type 1+2/ Class I+II 1

Certifications:

275Vac 12.5kA 3 Poles Spd For Lightning Protection Type 1+2/ Class I+II 2

FAQ:


Q1. What's the payment term?

  A. We accept T/T, Paypal etc.



Q2. What's the delivery time?

  A. Usually it would take about 20 days for production.



Q3. What is the standard of package?

  A. Export standard package or special package according to customer requirement.



Q4. What kind of product quality your factory offer?

  A. We offer most competitive prices with best quality.





Tag:

lightning surge protector,

lightning protection device,

power surge arrester
