| Place of Origin: | China |
| Brand Name: | BRITEC |
| Model Number: | BR-10DP 2P |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Lightning Protector | Material: | Plastic |
|---|---|---|---|
| Pole Number: | 2P | Protection: | IP20 |
| Un: | 230V | Uc: | 275V |
| In: | 5kA | Uoc: | 10kV |
| Tu: | -40℃-80℃ | Usage: | Low Voltage |
| Highlight: | lightning surge protector,power surge arrester |
||

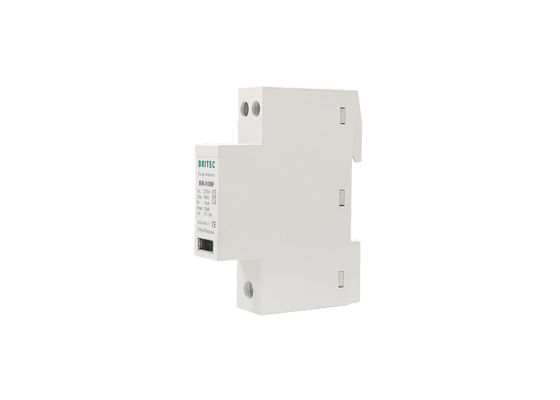

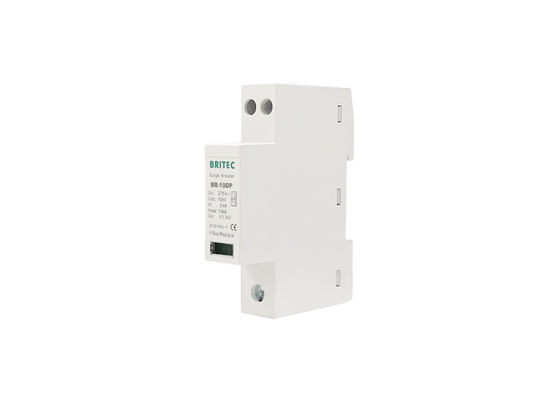

AC One Module 2 Poles SPD Lightning Protector for Power Supply System
• One module-2 poles lightning arrester.
AC One Module 2 Poles SPD Lightning Protector Technology characteristic:
| BR275-10DP 2P | |
| Max. continuous operating a.c. voltage Uc | 275V |
| Nominal discharge current (8/20us) In | 5kA |
| Voltage protection level Up | ≤1.1KV |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 2.5mm2 |
| Cross-section area (Max.) | 16mm2 |
| For mounting on | 35mm Din rail |
| Enclosure materail | Thermal plastic UL94-V0 |
| Test standard | IEC61643-1 |
| Class | Class III |
| Combinded impulse Uoc | 10kV |
| Norminal a.c. voltage Un | 230V |
| Degree of protection | IP20 |
Dimension:
AC One Module 2 Poles SPD Lightning Protector Application:
• Suitable for power supply systems such as equipment end protection, terminal distribution box and internal information front section.
AC One Module 2 Poles SPD Lightning Protector Installation:
The surge protection device installation at LPZ2 and LPZ3, protecting low voltage equipment against lightning and surge damages.
