Name: Type 1+2 Surge Protector Against Lightning AC Power 4 Pole Surge Suppressor
Brand: Britec Electric Co., Ltd.
SKU: BR-12.5M 320 4P
Price: Negotiable USD
Availability: InStock

Home Products Power Surge Protection Device

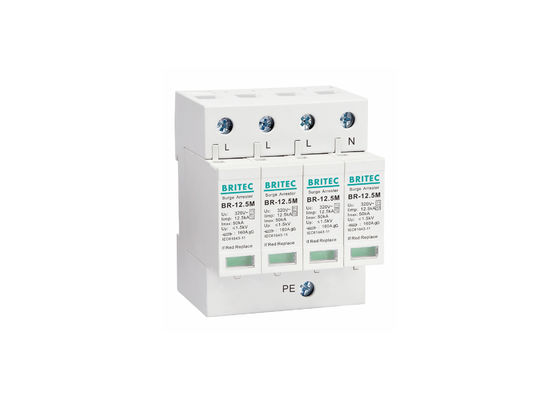

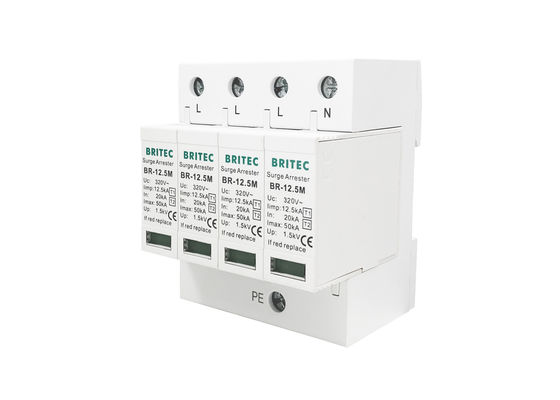

Type 1+2 Surge Protector Against Lightning AC Power 4 Pole Surge Suppressor

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-12.5M 320 4P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Lightning Protector	Material:	Thermal Plastic
Pole Number:	4P	Protection:	IP20
Uc:	320V	Iimp:	12.5kA
In:	20kA	Imax:	50kA
Tu:	-40℃-80℃	Usage:	Low Voltage
Highlight:	lightning protection device , power surge arrester

Best Price Type 1+2 Lightning Protector AC Power 4 Pole Surge Suppressor

Type 1+2 Surge Protector Features:

• Uc 320V can be achieved.

• Pole number: 4P.

• Time of response <25ns.

• The color of visible window shows operating status, green means normal, red means abnormal.

Type 1+2 Surge Protector Technology characteristic:

	BR-12.5M 320 4P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1 + Type 2
SPD dassification according to IEC61643-11	Class I + Class II
Max. continuous operating a.c. voltage Uc	320V
Lightning impulse current (10/350us) Iimp	12.5kA
Nominal discharge current (8/20us) In	20kA
Voltage protection level Up	≤1.5kV
Max. backup fuse	160A
Response time tA	≤25ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²

Dimension:

Type 1+2 Surge Protector Against Lightning AC Power 4 Pole Surge Suppressor 0

Type 1+2 Surge Protector Application:

• Used in the TN-S power supply system of AC 50/60HZ.

• Suitable for system power protection, such as power distribution cabinet, switch cabinet, AC distribution board etc.

• To protect from direct and indirect lightning impulse and other transient over voltage.

Workshop:

Britec owns international advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the domestic advanced, we also can help customer OEM/ODM.

Company Information:

Wenzhou Britec Electric Co.,Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences. We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

Certifications:

Britec offering over 30 kinds of SPD products which has CE, CB, and TUV certification. The company pass the approval of ISO9001 already.

FAQ:

Q1. What's your lead time and shipment?
A1: 20 days which depends on the order items and quantity. We can ship the goods by express like TNT, DHL, UPS, Fedex etc. Or by air and by sea with cargo company.

Q2. What's your MOQ?
A2: MOQ 100pcs for our items; MOQ 500pcs for OEM order.

Q3. How about the Quality?
A3: We have the professional and experienced engineer team and strict QA and QC system.

Q4. What is the payment you accept?
A4: T/T or Paypal. 30% deposit and 70% before shipment.

Q5. Do you accept OEM or ODM?
A5: Yes, we can customed other special specifications as your requirement.
