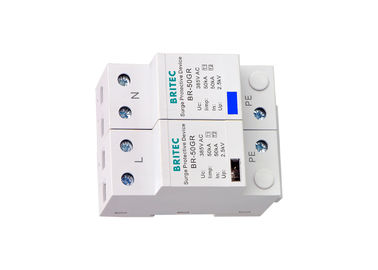

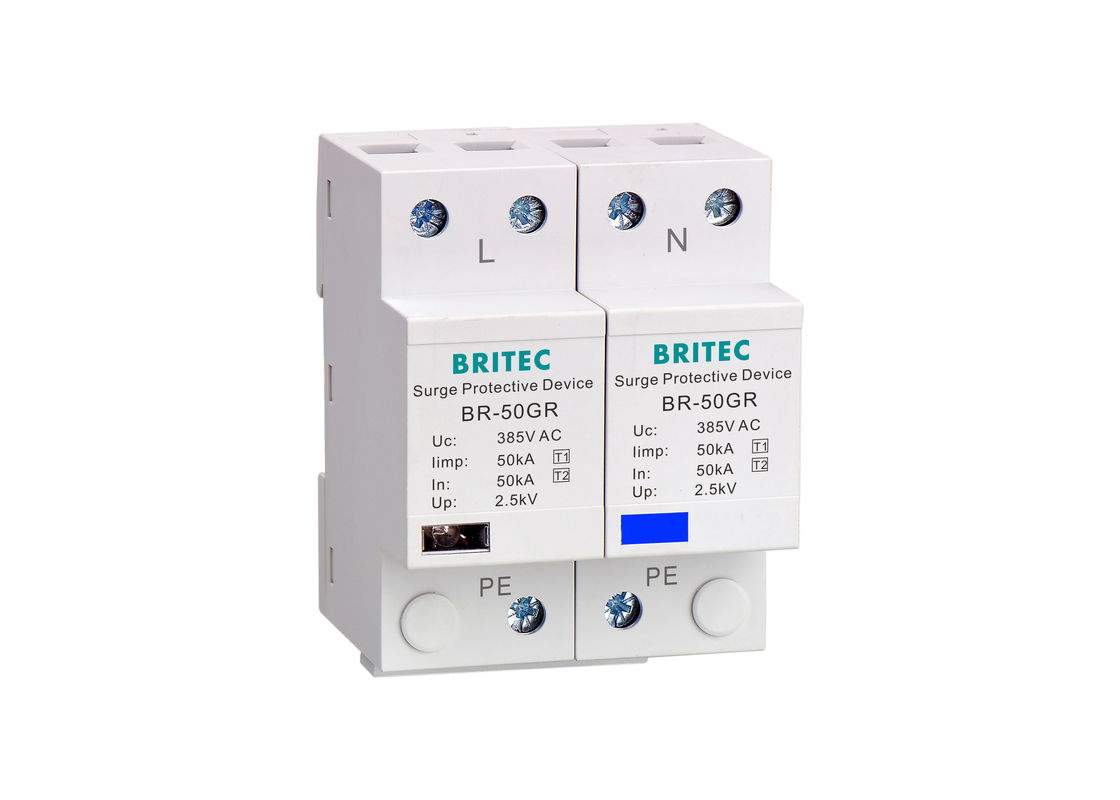

Name: Low Voltage AC SPD Single Phase Lightning Protection Surge Arrester CE Passed
Brand: Britec Electric Co., Ltd.
SKU: BR-50GR 2P
Price: Negotiable USD
Availability: InStock

Home Products Power Surge Protection Device

Low Voltage AC SPD Single Phase Lightning Protection Surge Arrester CE Passed

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-50GR 2P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Arrester	Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	BRITEC	Type:	Type 1
Material:	Thermal Plastic	Type Item:	SPD
Uc:	385v	Iimp:	50kA
Usage:	Low Voltage	Delivery Time:	20Days
Highlight:	lightning surge protector , power surge arrester

High Quality Low Voltage AC 385 SPD Single Phase Lightning Surge Arrester

Low Voltage AC 385 SPD Single Phase Lightning Surge Arrester Feature:

• Protection class: Type 1,Class I.

• Pole number: 2P.

• High security performance.

• Easy maintenance.

• Red indicates broken, replacement notice, which is clear and easy distinguished.

• Optional remote signaling, realizable remote monitoring.

• Assembled 1P, 2P, 3P, 4P etc. modes, applied to various electric network systems.

Low Voltage AC 385 SPD Single Phase Lightning Surge Arrester Product detail:

	BR-50GR 2P
No. of poles	2P
Power supply system	TN system
SPD classification according to IEC61643-11	Class I
Max. continuous operating a.c. voltage Uc	385V
Voltage protection level Up	≤2.5kV
Nominal discharge current (8/20us) In	50kA
Maximum discharge current (8/20us) Imax	160kA
Lightning impulse current (10/350us) Iimp	50kA
Status indication	LED
Response time tA	≤100ns
Operating temperature range Tu	-40℃—80℃
Relative humidity	On condition that room temperature 30% to 90%
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
For mounting on	35mm Din rail
Test grade	IEC61643-1 standards

Dimension:

Low Voltage AC 385 SPD Single Phase Lightning Surge Arrester Application:

• Protecting low-voltage consumers' installations against indirect lightning discharges.

• Used to guard sensitive equipment from voltage spike.

• Applied to equipotential bonding of the main low voltage distribution boxes in the building, providing overvoltage protection arising from the class B lightning strike to power supply system or disoperation.
