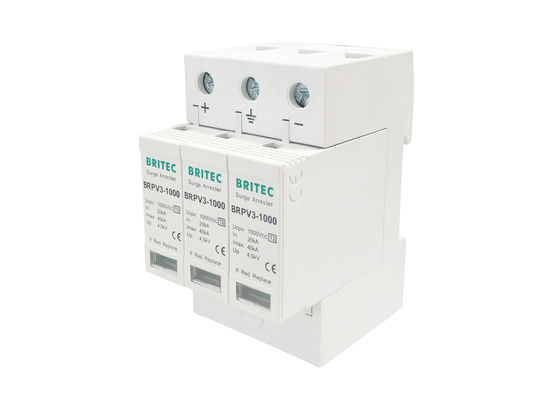

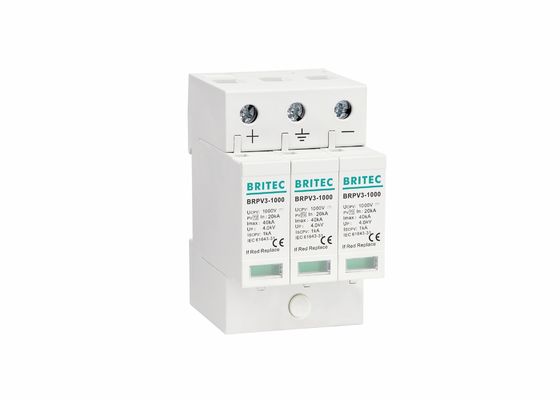

Name: PV 1000V 3 Pole DC Surge Protection Device For Photovoltaic Applications
Brand: Britec Electric Co., Ltd.
SKU: BRPV3-1000
Price: Negotiable USD
Availability: InStock

Home Products DC Surge Protection Device

PV 1000V 3 Pole DC Surge Protection Device For Photovoltaic Applications

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BRPV3-1000

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Place Of Origin:	Zhejiang, China (Mainland)	Type:	Type2
Model Number:	BRPV3-1000	Item Name:	DC Surge Protector
Material:	Thermoplastic UL94-V0	Ucpv:	1000V
Pole Number:	3P	Tu:	-40℃-80℃
Imax:	40kA	Standard:	IEC61643-31
Highlight:	12v dc surge protector , dc surge suppressor

PV 1000V 3 Pole DC Surge Protector For Photovoltaic Applications

PV 1000V 3 Pole DC Surge Protection Device Characteristic:

• DC surge protection device.

• Compliant with IEC/EN 61643-31.

• Maximum discharge current Imax = 40 kA.

• Type 2 surge arresters for photovoltaic applications.

• Remote signaling contact for control device optional.

• Fault indication via red mark in the inspection window.

• The maximum continuous operating voltage DC 1000V.

• The core parts are metal oxide varistor components with high discharge capacity.

PV 1000V 3 Pole DC Surge Protection Device Product detail:

3 Mod	BRPV3-1000
SPD classification according to EN61643-31	Type 2
SPD classification according to IEC61643-31	Class II
Max. continuous operating dc voltage Ucpv	1000V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤4.0kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20
Remote signal function	Can also picking

Dimension:

PV 1000V 3 Pole DC Surge Protection Device For Photovoltaic Applications 0

PV 1000V 3 Pole DC Surge Protection Device Application:

• Used for photovoltaic system.

• To prevent the risks linked to lightning.

• Protect sensitive electrical equipment like: DC inverters and PV panels.

• Suitable for the new energy solar photovoltaic power generation systems or other dc power supply system of lightning protection.

• Mainly used to protect equipment from lightning and surge currents entering through solar PV roof top systems and power plants.

• Meant to protect against the overvoltage coming from the lightning strikes of the PV inverter direct current input, and of the photovoltaic panels.

PV 1000V 3 Pole DC Surge Protection Device Advantage:

• Reliable control.

• The thermal disconnector will open before their destruction.

• Withdrawable Surge Arresters allow damaged cartridges to be replaced quickly.

PV 1000V 3 Pole DC Surge Protection Device Installation:

• Installation position in the dc power supply system.

• It should be installed in a switchboard inside the building. If the switchboard is located outside, it must be weatherproof.
