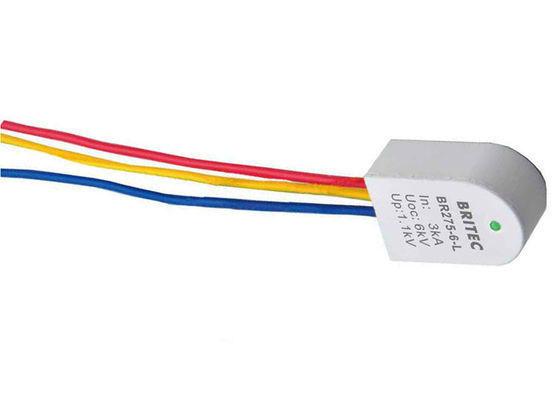

Name: LED Power Surge Protector SPD 5kA 10kA Street Lamp Power Surge Protection
Brand: Britec Electric Co., Ltd.
SKU: BR275-6-L
Price: Negotiable USD
Availability: InStock

Home Products LED Surge Protection Device

LED Power Surge Protector SPD 5kA 10kA Street Lamp Power Surge Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR275-6-L

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Item Name::	LED Surge Protective	In:	5kA
Imax:	10kA	Tu:	-40℃-80℃
Un:	230V	Uoc:	10kV
Highlight:	rcd residual current device , miniature circuit breaker

LED Power Surge Protector SPD 5kA 10kA Street Lamp Power Surge Protection

Product Description:

• For use with 230V LED drivers and fixtures.

• Protection for 10kV/5kA.

• Features a thermally protected transient over-voltage circuit.

• 3-wire, single phase surge protector.

Product Details:

	BR275-6-L
SPD classification according to EN61643-11	Type 3
SPD classification according to IEC 61643-11	Class III
Nominal a.c. voltage Un	230V
Max. continuous operating a.c. voltage Uc	275V
Max. continuous operating d.c. voltage Uc	300V
Nominal discharge current (8/20us) In	5kA
Combined impulse Uoc	10kV
Voltage protection level Up	≤1. 0kV
Response time tA	≤25ns
Operating temperature range Tu	-40°C~ +80°C
Operating state / fault indication	LED
Enclosure materail	Thermal plastic UL94-V0
Degree of protection	IP20

Dimension:

LED Power Surge Protector SPD 5kA 10kA Street Lamp Power Surge Protection 0

Application:

• Protect AC electrical current.

• For industrial, commercial, and residential applications.

Installation:

• Installation and service must be performed by qualified personnel.

• Remove all electrical power before installation or service.

• Keep wires from the luminaire’s terminal block to the AC/DC power supply as short as possible so

that SPD is close to the AC/DC power supply.

• Do not cross/overlap protected wires (after SPD, AC or DC) with unprotected wires (before SPD, AC).

• Ensure electrical connections and mountings are correct before energizing the circuit.

Packaging & Shipping:

• Each item packed in inner white box, and into a strong brown carton.

• Can supply special package if customer required.

• Shippment can be made by sea, by air, and by courier service.

LED Power Surge Protector SPD 5kA 10kA Street Lamp Power Surge Protection 1

Company Information:

Britec Electric Wenzhou Co., Ltd. Professional Manufacturer of SPDs. Established in Year 2003,

17 Years OME Experience. Have R&D Deparment, Making Moulds by Our Own Facotry. Main

Market: Malaysia, Canada, South Africa, Jordan, India, Bolivia, Brazil, Spain, UK, France, Italy,

and many other countries.

Certificate:

Our company has ISO9001 certificate, our products have passed CE, CB, TUV type test.

FAQ:

Q1: Are you a manufacturer or trading company?
A: We are a manufacturer of SPDs with more than 17 years experience.

Q2: Do you have any MOQ for order?
A: MOQ is 100pcs.

Q3: What's your terms of payment?
A: 30% T/T, balance before shipment.

Q4: Can you customize my products or put my logo on your products?
A: Yes, we offer OEM and ODM services. Please inform us formally before production.

Q5: What's the lead time?
A: Usually, sample orders takes 7-10 business days. For mass production, it largely depends on

order quantity. Please let us know your requirement, we will do our best to deliver the goods

in time.
