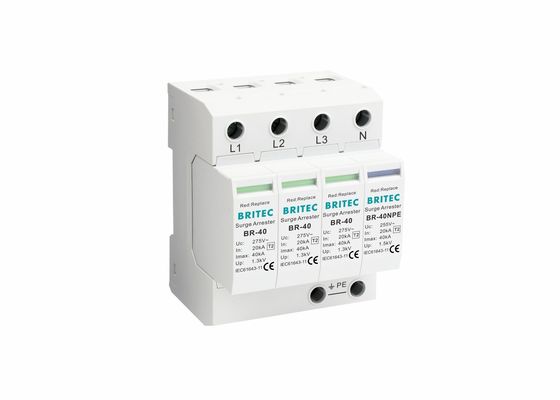

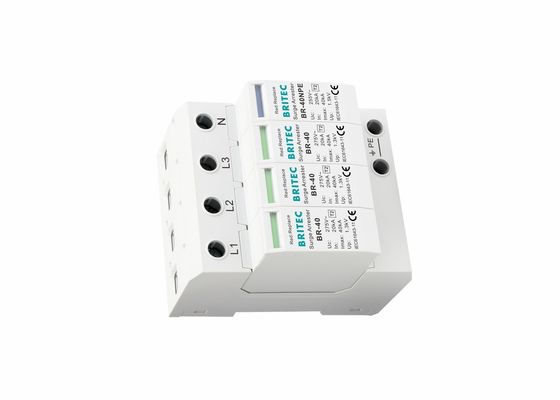

Name: 3p + NPE Imax 40kA Type 2 SPD Surge Protection Low - Voltage Arrester Device
Brand: Britec Electric Co., Ltd.
SKU: BR-40 3P+NPE
Price: Negotiable USD
Availability: InStock

Home Products Type 2 Surge Protection Device

3p + NPE Imax 40kA Type 2 SPD Surge Protection Low - Voltage Arrester Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-40 3P+NPE

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Uc:	150V / 275V / 320V / 385V / 440V
Uc(N-PE):	255V	In:	20kA
Imax:	40kA	TA:	≤25ns
Pole No.:	3P+NPE	Tu:	-40℃...+80℃
Class:	Type 2	Item:	SPD
Highlight:	lightning surge arrester , 2 pole surge protector

3p+N Imax 40kA SPD Surge Protection Low-voltage Arrester Device

3p + NPE Imax 40kA Type 2 SPD Surge Protection Feature:

• Class II, Type 2, 40kA

• 40kA maximum surge current

• The surge arrestors BR-40 3P+NPE meet the type 2 requirement class according to IEC 61643-11

• Consisting of a base part and 4 plug-in protection modules.

• Type 2 surge protector is the best way to keep every kind of voltage surges away from low-voltage switching to make sure the complete protection of secondary panel.

3p + NPE Imax 40kA Type 2 SPD Surge Protection Product Details:

	BR150 40 3P+NPE	BR275 40 3P+NPE	BR320 40 3P+NPE	BR385 40 3P+NPE	BR440 40 3P+NPE
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Max. continuous operating a.c. voltage[N -PE] Uc	255V	255V	255V	255V	255V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Voltage protection level [N-PE] Up	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV
Follow current extinguishing capability[ N-PE]a.c.Ifi	100Arms	100Arms	100Arms	100Arms	100Arms
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Response time [N-PE] tA	≤100ns	≤100ns	≤100ns	≤100ns	≤100ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20
Order Code	B8451	B8453	B8455	B8457	B8249
Order Code (With remote signaling)	B8452	B8454	B8456	B8458	B8250

Dimension:

3p + NPE Imax 40kA Type 2 SPD Surge Protection Low - Voltage Arrester Device 0

3p + NPE Imax 40kA Type 2 SPD Surge Protection Application:

• These devices protect low-voltage consumer systems from overvoltages of all types

• Protection of AC Power System

• Protection of power distribution system

• Protection of terminal devices

• For using in the lightning protection zones concept at boundary 1-2

• Used for protection against electrical transients

• This product series of modular surge protection devices provide protection for equipment connected to incoming low voltage AC power supplies against the damaging effects of transient over voltages caused by local lightning strikes.

3p + NPE Imax 40kA Type 2 SPD Surge Protection Advantage:

• Low leakage current, fast response time, low residual voltage.

• Status indicators visually verify protection level

• Available with optional remote signaling

• Easy installation with Din rail mounting

• The different combination wiring methods could be selected according to the different power supply system.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Company Information:

Wenzhou Britec Electric Co., Ltd. founded in 2003, has been committed to the field of lightning protection, the company is located in Yueqing, Zhejiang. The company is committed to the development and application of lightning protection. The company has gathered a group of experienced industry elites and marketing management personnel. They have accumulated more than ten years of industry experience, mastered exquisite product development technology and practical application experience, and can provide targeted scientific industry solutions.

3p + NPE Imax 40kA Type 2 SPD Surge Protection Low - Voltage Arrester Device 1

Certificate:

3p + NPE Imax 40kA Type 2 SPD Surge Protection Low - Voltage Arrester Device 2

Installation:

• The line of surge arresters includes a full range of compact protectors for installation on DIN rail

• When the fault indication window turns from green to red please replace the cartridge as soon as possible

• After the installation is complete, check that the protection unit is plug in place, close the automatic circuit breaker (fuse) switch, check the working status is normal.
