Type 2 + Type 3 AC Surge Protector 4 Pole Imax 40kA With Remote Indication

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-40DP 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Uc:	275V
In:	20kA	Imax:	40kA
Material:	Thermal Plastic UL94-V0	TA:	≤25ns
Mounting On:	35mm Din Rail	Tu:	-40℃...+80℃
Class:	Type 2 + Type 3	Item:	AC Surge Protector
Highlight:	type 3 surge protector , ac surge protector

Type 2 + Type3 AC Surge Protector 4 Pole Imax 40kA With Remote Indication

Type 2 + Type 3 AC Surge Protector Feature:

• Type 2 + Type 3 Surge Protector.

• Discharge currents : In : 20 kA / Imax : 40 kA.

• DIN rail compatible.

• Remote Signalling in option.

• IEC 61643-11 and EN 61643-11 compliance.

• Visible fault indication:Green on: Normal; Green off: Fault.

• BR-40DP series is combined Type 2+3 / Class II+III devices for discharging voltage surges while providing a very fine voltage protection level.

Type 2 + Type 3 AC Surge Protector Product Details:

	BR 275 40DP 4P
SPD classification according to EN61643-11	Type 2 + Type 3
SPD classification according to IEC61643-11	Class II + Class III
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	20kA
Max. discharge current(8/20μs) Imax	40kA
Voltage protection level Up	≤1.3kV
Voltage protection level 5kA Up	≤1.0kV
Combined impulse Uoc	10kV
Max. backup fuse	125A gG
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	2.5mm²
Cross-section area (Max.)	16mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
Order Code	B8220
Order Code (With remote signaling)	B8221

Dimension:

Type 2 + Type 3 AC Surge Protector Application:

• For protection of power supply systems.

• For the protection of low voltage distribution systems against transient overvoltage caused by indirect lightning stroke and switching operations.

• For using in the lightning protection zones concept at boundary 2-3.

• Applied to power supply protection of equipment system in areas with high lightning risk.

Type 2 + Type 3 AC Surge Protector Advantage:

• High discharge current.

• Indication window for clear display of SPD status.

• Remote controlling function.

• Visual inspection window.

• Easy to operate.

• Long service life.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

Company information:

Wenzhou Britec Electric Co., Ltd.ltd is located Yueqing, Wenzhou, China. There is the largest low-voltage electrical appliance market in China and about 15Km far away from Wenzhou Airport and Railway, the transportation is very convenient. Our Company is specialized in manufacturing SPDs. Our company takes the repuation as the large supplier of surge protection device, OEM or ODM projects are available. The most important is our products pass the lab.test and obtained the approvals: CE, CB, and TUV.

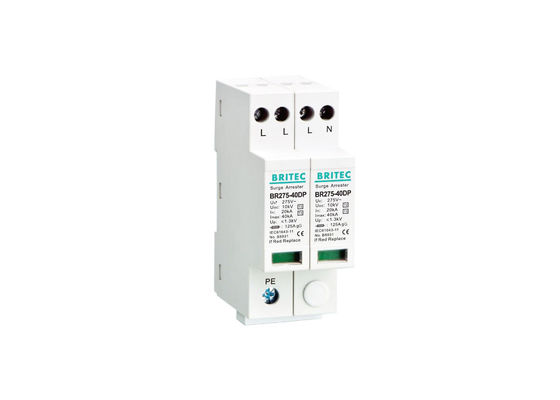

Type 2 + Type 3 AC Surge Protector 4 Pole Imax 40kA With Remote Indication 1

Certificate:

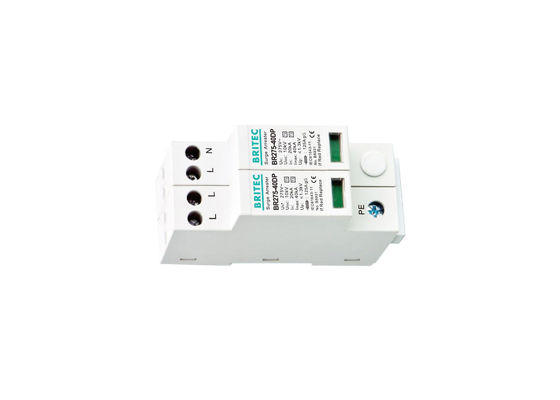

Type 2 + Type 3 AC Surge Protector 4 Pole Imax 40kA With Remote Indication 2

Shipment:

Installation:

• Suitable as the final stage of protection in panels with Type 2 protection devices installed upstream.

• These SPDs should be installed as close as possible to the equipment being protected.

• Installed at a minimum conductor length of 10 meters (30 feet) from the electrical service panel to the point of utilization, for example cord connected, direct plug-in, receptacle type SPDs installed at the utilization equipment being protected. The distance (10 meters) is exclusive of the conductors provided with or used to attach SPDs.
