Name: Electric Surge Protective Device Type 3 275V 40kA Lightning Surge Protector
Brand: Britec Electric Co., Ltd.
SKU: BR-40DP 2P
Price: Negotiable USD
Availability: InStock

Home Products Surge Protective Device Type 3

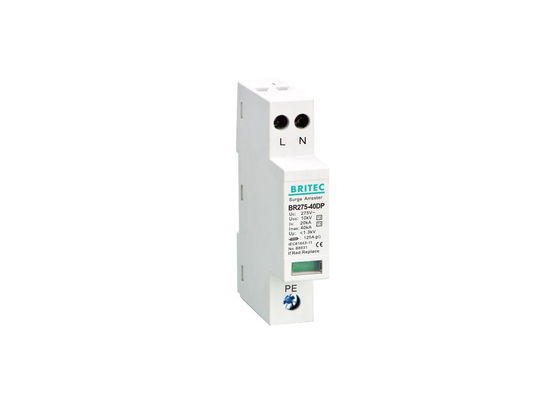

Electric Surge Protective Device Type 3 275V 40kA Lightning Surge Protector

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-40DP 2P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Uc:	275V
In:	20kA	Imax:	40kA
Material:	Thermal Plastic UL94-V0	TA:	≤25ns
Mounting On:	35mm Din Rail	Tu:	-40℃...+80℃
Item:	Electric Surge Protective Device	Class:	Type 3
Highlight:	type 3 surge protector , ac surge protector

Type 3 Electric Surge Protective 275V 40kA Lightning Surge Protection Devices

Electric Surge Protective Device Feature:

• Discharge currents : In : 20 kA / Imax : 40 kA.

• Rated Operating Voitage(UC):275V.

• Ressponse time: ≤25ns.

• Remote Signalling in option.

• UL 94 V-0 Thermoplastic Housing.

• IEC 61643-11 and EN 61643-11 compliance.

• With the power status indication, indicating the working state of surge protector.

Electric Surge Protective Device Product Details:

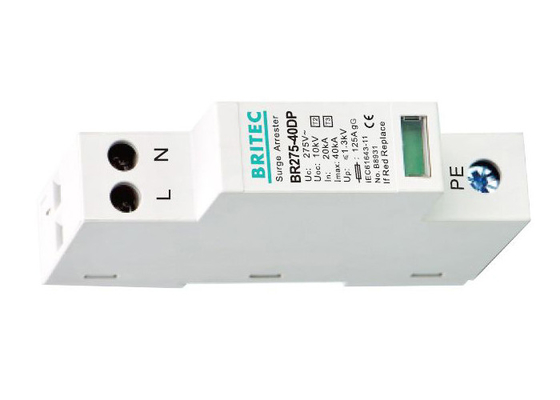

	BR 275 40DP 2P
SPD classification according to EN61643-11	Type 2 + Type 3
SPD classification according to IEC61643-11	Class II + Class III
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	20kA
Max. discharge current(8/20μs) Imax	40kA
Voltage protection level Up	≤1.3kV
Voltage protection level 5kA Up	≤1.0kV
Combined impulse Uoc	10kV
Max. backup fuse	125A gG
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	2.5mm²
Cross-section area (Max.)	16mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
Order Code	B8241
Order Code (With remote signaling)	B8242

Dimension:

Electric Surge Protective Device Application:

• Provides security protection for all kinds of electronic devices, instruments and communication lines.

• It is mainly used to limit overvoltage and discharge electric current.

• For the protection of low voltage equipment against transient voltage and current surges mainly from atmospheric origin (lightning) and transient produced by switching characteristics such as in switching of distribution networks, transformers, motors, etc.

Electric Surge Protective Device Advantage:

• Advanced production process and beautiful appearance.

• Compact DIN rail design.

• High discharge current performance.

• Long service life.

• Visual inspection window.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

What is surge arrester?

In the equipment system, the inductive or capacitive coupling voltage is caused by the lightning shock and the switching operation of the upstream power supply system. Therefore, the surge may damage the photovoltaic modules and inverters and other devices. This will cause serious consequences for the operation of the system. The surge protector is a power defense specially designed for this purpose.

Working principle:

Once the high voltage is present and the insulation of the protected equipment is endangered, the lightning arrester acts immediately and leads the high voltage impact current to the earth, thus limiting the amplitude of the voltage and protecting the insulation of the equipment. When the overvoltage is gone, the arrester is restored to its original state quickly, so as to protect the power equipment.

Company profile:

Wenzhou Britec Electric Co.,Ltd. was founded in 2003, it's a professional manufacturer in SPDs. We are specialized in developing and marketing of high quality surge arresters, including AC surge protector, DC surge protection device, data surge protective, LED lightning protection in the market. Welcome all customers over the world to contact us for future business relationship and achieving mutual success!

Electric Surge Protective Device Type 3 275V 40kA Lightning Surge Protector 1

Certificate:

Payment & Shipping:

FAQ:

Q1: When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.

Q2: Do you provide samples? Is it free or extra?
A: Yes, we could provide the sample, but it is not free.

Q3: How's the delivery? Because I really need them is urgently?
A: Samples cost 7 days. Bulk order cost 20 days.

Q4: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal etc.

Q5: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes, we have product catalogue. Please contact us on line or send an Email to sending the catalogue.
