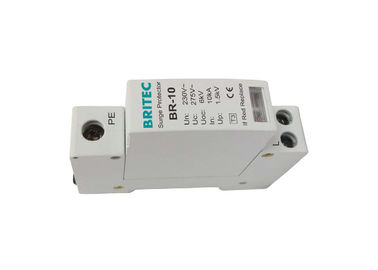

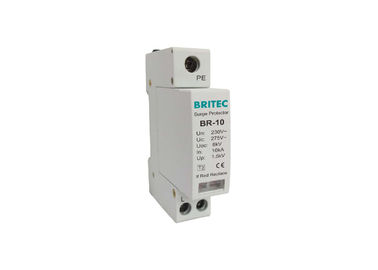

Name: 230V Surge Protective Device Type 3 10kA 1- Pole + NPE With Remote Signalling
Brand: Britec Electric Co., Ltd.
SKU: BR-10
Price: Negotiable USD
Availability: InStock

Home Products Surge Protective Device Type 3

230V Surge Protective Device Type 3 10kA 1- Pole + NPE With Remote Signalling

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-10

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	EN61643-11	Un:	230V
In:	10kA	Uoc:	6kV
Material:	Thermal Plastic	TA:	≤25ns
Mounting On:	35mm Din Rail	Tu:	-40℃...+70℃
Item:	Surge Protective Device	Class:	Type 3
Highlight:	type 3 surge protector , ac surge protector

230V Type 3 10kA 1-pole + NPE With Remote Signalling Surge Protection Device

230V Surge Protective Device Feature:

• Pluggable device protection.

• According to type 3 / class III EN61643-11.

• 3-conductor system: L1, N, PE.

• With remote indication contact.

• With optical function display.

• Designed for 35 mm DIN rails.

• Operating Temperature: -40° to +80° C.

• Thermoplastic Housing.

230V Surge Protective Device Product Details:

	BR-10
SPD classification according to EN61643-11	Type 3
Nominal a.c. voltage Un	230V
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	10kA
Combined impulse Uoc	6kV
Max. discharge current (8/20us) Imax	20kA
Voltage protection level Up	≤1.3kV
Max. backup fuse	25A gG
Response time tA	≤25ns
Operating temperature range Tu	-40℃-70℃
Operating state / fault indication	Non / red
Cross-section area (Min.)	2.5mm²
Cross-section area (Max.)	6mm² / 25mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic
Degree of protection	IP20
Dimension (LxWxH)	90x70x18mm

Dimension:

230V Surge Protective Device Type 3 10kA 1- Pole + NPE With Remote Signalling 0

230V Surge Protective Device Application:

• It is applied in SPD Type 3 (Class III) for power supply system.

• Protects against surges and direct lightning strikes.

• For lightning current equipotential.

• Provide fine protection for single-phase power of low power supply system.

• For protection of the power supply of industrial electronic equipment against transient surges in switchgears.

• Used for lightning protection equipotential bonding in buildings which also have external lightning protection of Classes III and in standard distributor housings.

230V Surge Protective Device Advantage:

• Varistor-based device protection.

• Pluggable, easy to replace.

• Optical status indicator via LED.

• Compact DIN rail design comprising of base.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

What is voltage surge?

Voltage surges, often referred to as spikes or transients are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. The worst voltage surges are usually caused by lightning and can reach up to 6000V, with current surges of over 3000A.

Installation instruction:

• Type 3 surge arrester is installed right before the protected equipment.

• Mount the SPD on 35 mm DIN rail.

• Regularly inspect the operating status, once the SPD’s fault appear, electrician should check/replace the SPD.

Company information:

Wenzhou Britec Electric Co., Ltd.ltd is located Yueqing, Wenzhou, China. There is the largest low-voltage electrical appliance market in China and about 15Km far away from Wenzhou Airport and Railway, the transportation is very convenient. Our Company is specialized in manufacturing SPDs. Our company takes the repuation as the large supplier of surge protection device, OEM or ODM projects are available. The most important is our products pass the lab.test and obtained the approvals: CE, CB, and TUV.

230V Surge Protective Device Type 3 10kA 1- Pole + NPE With Remote Signalling 1

Workshop:

Certification:

Shipment & Payment:

FAQ:

Q1. What advantages do you have?
A1. Britec are the direct Manufacturer in Wenzhou China from 2003, we have professional developing, marketing & production team to offer you the most competitive price and best service.

Q2. What’s your main product?
A2. We have four product project, AC SPDs, PV(solar) surge protector, data surge protection device and LED lightning arrester.

Q3. Could you print our own logo?
A3. Yes, our company are available for Retail & Wholesale & OEM & ODM.

Q4. How long is the quality guarantee?
A4. 2 years warranty, our products are 100% inspection.

Q5. How long is the deliver time?
A5. It usually takes about 7 working days for sample order and 20 days for big order.
