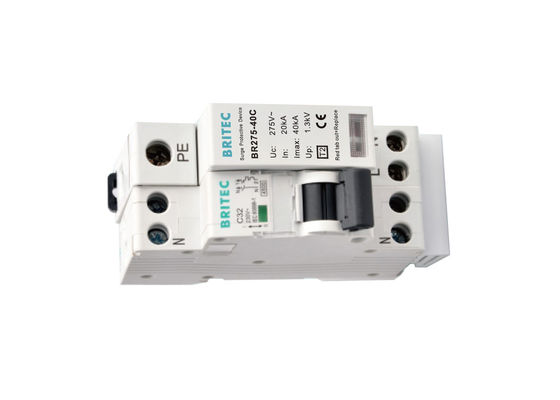

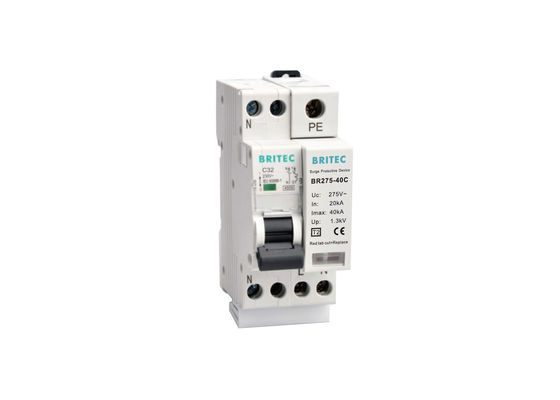

Name: Compact Type 2 Surge Protection Device Combined With Mini Circuit Breaker
Brand: Britec Electric Co., Ltd.
SKU: BRCB-15/30/40
Price: Negotiable USD
Availability: InStock

Home Products Type 2 Surge Protection Device

Compact Type 2 Surge Protection Device Combined With Mini Circuit Breaker

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRCB-15/30/40

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	EN61643-11 / IEC61643-11	Uc:	275V
In:	5kA / 15kA / 20kA	Imax:	15kA / 30kA / 40kA
Material:	Thermal Plastic UL94-V0	TA:	≤25ns
Mounting On:	35mm Din Rail	Tu:	-40℃...+80℃
Class:	Type 2	Item:	Surge Protection Device
Highlight:	lightning surge arrester , 2 pole surge protector

Type 2 Surge Arrester Combined With Mini Circuit Breaker For 35mm Din Rail

Compact Type 2 Surge Protection Device Combined With Mini Circuit Breaker Feature:

• Class II, Type 2.

• Max. discharge current(8/20us):15kA / 30kA / 40kA.

• Conforms to IEC 61643-11 and EN61643-11.

• This series is surge protection combined with MCB.

• Simple DIN rail mounting IP20 Protection.

• Remote signaling selectable.

• BRCB combined surge arrester can provide surge protection for TN system.

Compact Type 2 Surge Protection Device Combined With Mini Circuit Breaker Product Details:

	BRCB-15	BRCB-30	BRCB-40
SPD classification according to EN61643-11	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II
Norminal a.c. voltage Un	230V	230V	230V
Max. continuous operating a.c. voltage Uc	275V	275V	275V
Mcb rated current	16A	20A	32A
Nominal discharge current (8/20us) In	5kA	15kA	20kA
Max. discharge current (8/20us) Imax	15kA	30kA	40kA
Voltage protection level Up	≤1.1kV	≤1.3kV	≤1.3kV
Response time tA	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red
Cross-section area (Min.)	2.5mm²	2.5mm²	2.5mm²
Cross-section area (Max.)	16mm²	16mm²	16mm²
For mounting on	35mm Din rail	35mm Din rail	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20
Order Code	B8460	B8462	B8464
Order code(With remote signal)	B8461	B8463	B8465

Dimension:

Compact Type 2 Surge Protection Device Combined With Mini Circuit Breaker Application:

• In case of surge current or voltage caused by lightningstrike or similar, SPD functions quickly to conduct the surge voltage/current to earth and thus effectively prevent the downstream equipments of its protected line from destruction.

• This surge protection devices are recommended for locations having a high exposure to lightning, for example, light entrances to buildings protected by lightning rods or powered by aerial lines.

Compact Type 2 Surge Protection Device Combined With Mini Circuit Breaker Advantage:

• Special design, combined with MCB.

• Quick response less than 25ns.

• Mechanical status indicator.

• With remote signal.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Why do we need surge protection?

There are not many areas of the world today that do not experience surge-related incidents. Lightning is only one of the many causes of transient surge related problems. Today's modern electronic equipment is much smaller, much faster, and much more susceptible to transient related problems than was the last generation of equipment. The sheer number of control and communication devices interlinked together in today's networks make their susceptibility many times greater. These are new problems that were not nearly as frequent with previous generations of control equipment.

Company information:

Wenzhou Britec Electric Co.,Ltd. is founded in 2003, which is a professional SPD manufacturer. And through the unremitting efforts of company leaders and employees, it has formed a one-stop service enterprise integrating technology, research and development, design, production and sales, and is committed to creating high-quality surge protection products. Our products have been tested and certified by testing agencies and hold certification certificates.

Certificate:

FAQ:

Q1: Are you a trade company or a manufacturer?
A: We are a over 17years manufacturer specialized in surge arrester.

Q2: What is your terms of payment?
A: We accept many payment terms: T/T(30% deposit, 70% before shipment).

Q3: Can I have a sample order?
A: Yes. We welcome sample order to test and check quality.

Q4: Can you do OEM&ODM?
A: Yes. We do OEM&ODM orders. Just send us your design, we will make samples for you soon.

Q5: What is your delivery time?
A: Sample lead time: 7 working days; Mass production: 20days; For big orders, honestly, it depends on the order quantity and design.
