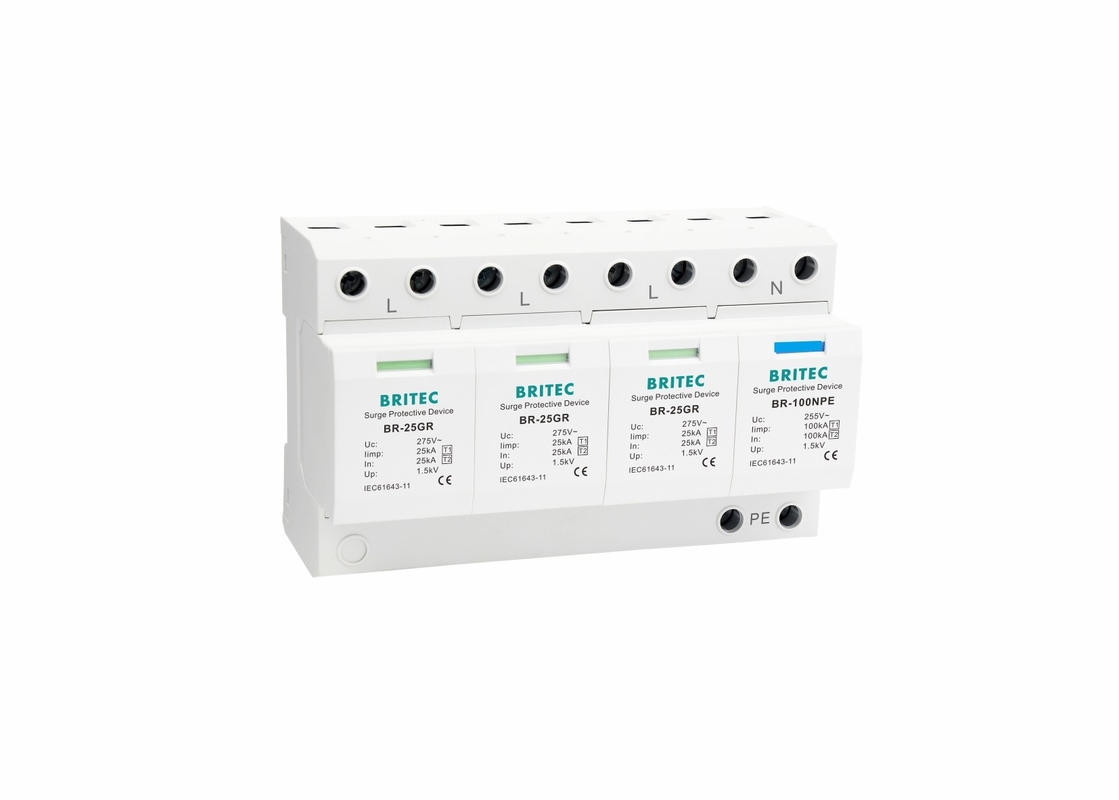

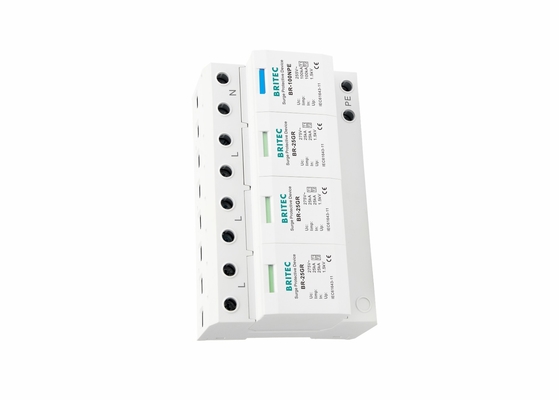

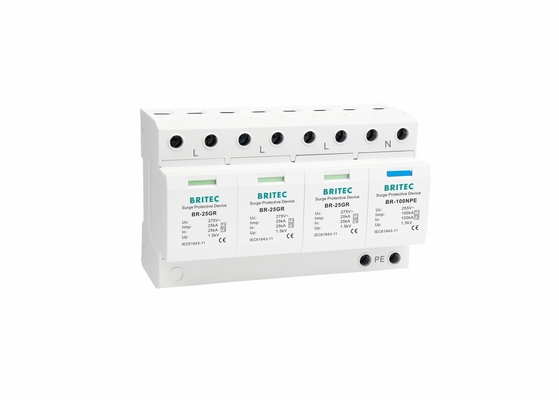

Name: House Arrester TT BR-25GR 3+1 Electrical Surge Protector
Brand: Britec Electric Co., Ltd.
SKU: BR-25GR 3+1
Price: Negotiable USD
Availability: InStock

Home Products Surge Protection Device

House Arrester TT BR-25GR 3+1 Electrical Surge Protector

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR-25GR 3+1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Protector	Type:	Low-voltage
Uc:	150V/275V/350V	Iimp:	25kA
Pole Number:	3P+NPE	Enclosure:	Thermoplastic UL94-V0
Tu:	-40℃-80℃	Material:	Plastic
Protection:	IP20	Certificate:	TUV/CE/ROHS/ISO9001 Approved Standard
Highlight:	BR-25GR 3+1 electrical surge protector , BR-25GR 3+1 lightning surge protector , 385V electrical surge protector

3P+NPE Surge Protector 25KA Low-voltage House Protective Arrester

Low-voltage House Protective Arrester Product introduction:

Surge protector is the lightning protection measures adopted by Wenzhou Britec Electric Co., Ltd. for the electrical system. It is widely used in home, third industry and industrial fields to protect sensitive lines and protect the surge of lightning and direct lightning or other instantaneous overvoltage.

Low-voltage House Protective Arrester Technology characteristic:

Specification	BR-25GR 3+1
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1
SPD dassification according to IEC61643-11	Class I
Max continuous 0perating a.c. voltage Uc	275V/255V
Lightning impulse current (10/350µs) limp	25kA/100kA
Norminal discharge current (8/20µs) In	25kA/100kA
Voltage protection level Up	1.5kV
Short-circuit current rating a.c. Isccr	25kA rms/100A rms
Max. backup fuse	315A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40 ℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermoplastic UL94-V0

Dimension:

House Arrester TT BR-25GR 3+1 Electrical Surge Protector 0

Low-voltage House Protective Arrester Structure and Principle:

SPD is a port, shocking protection, and indoor-mounted installation, voltage-limited. SPD hold disconnector inside, when SPD breakdown failure by overheating, the disconnector can remove from the power grid automatically, and show indication signal. It display red when it breakdown and disconnect. 3P+NPE SPD consist of 3P SPD+NPE zero ground protection module, apply to TN-S, TT and other power supply system.

Low-voltage House Protective Arrester Working principle of product:

The lightning arrester can effectively protect the power equipment. Once the abnormal voltage appears, the lightning arrester will play a protective role. When the protected device is running under normal working voltage, the arrester will not work, and it will be regarded as a circuit for the ground.

Once the high voltage is present and the insulation of the protected equipment is endangered, the lightning arrester acts immediately and leads the high voltage impact current to the earth, thus limiting the amplitude of the voltage and protecting the insulation of the electrical equipment. When the overvoltage is gone, the arrester is restored to its original state quickly, so that the system can be supplied normally.

The main function of the arrester is to reduce the voltage value of the protected equipment by the action of parallel discharge gap or nonlinear resistance, so as to protect the power equipment.

Low-voltage House Protective Arrester Product features:

1. Core components are strictly screened, stable performance and reliable operation.

2. Using the latest arc extinguishing technology to avoid fire completely

3. Module is designed and installed conveniently.

Notice of product:

1. Grounding lines should be short, thick and straight, so as to reduce the influence of distributed inductors on the ability of lightning electromagnetic pulse.

2. It should match the working voltage of the protected equipment. Please install according to the installation sketch.
