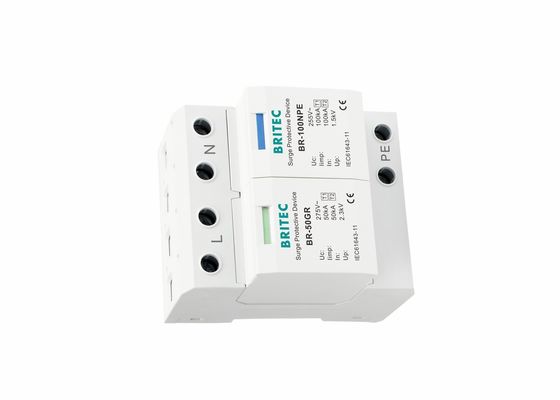

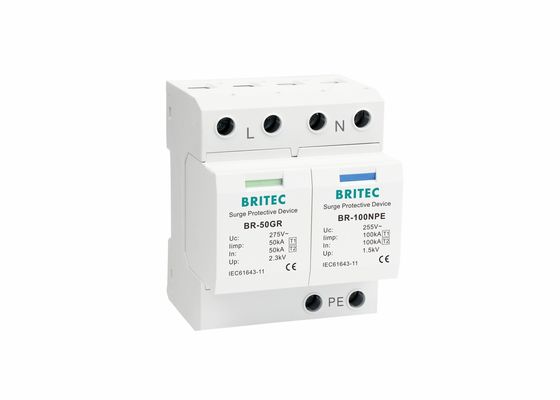

Name: Anti Lightning Type 1 1P+NPE IP20 IEC61643-11 Surge Protection Device
Brand: Britec Electric Co., Ltd.
SKU: BR-50GR 1+1
Price: Negotiable USD
Availability: InStock

Home Products Surge Protection Device

Anti Lightning Type 1 1P+NPE IP20 IEC61643-11 Surge Protection Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR-50GR 1+1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Din Rail Anti-lightning Protective Arrester	Brand Name:	BRITEC
Class:	Type 1	Pole Number:	1P+NPE
Uc:	275V/255V	Iimp:	50kA/100kA
In:	50kA/100kA	Material:	Plastic
Protection:	IP20	Tu:	-40℃-80℃
Highlight:	IEC61643-1 Surge Protection Device , IEC61643-1 lightning surge arrester , IP20 Surge Protection Device

AC 50KA/100kA Din Rail Anti-lightning Protective Arrester 1P+NPE

Din Rail Anti-lightning Protective Arrester Brief introduction:

BR-50GR series surge protective device (hereinafter called SPD) is suitably used in the TT, TN-S and other power supply system of AC 50/60Hz, rated voltage up to 275V, to protect from direct and indirect lightning impulse and other transient over voltage. As per the conditions of IEC61643-1:1998-02 standard, Class I surge protective device, it is category B surge protective device. SPD is in compliance with GB18802.1/IEC61643-1 standards.

Din Rail Anti-lightning Protective Arrester Technical parameter:

Specification	BR-50GR 1+1
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1
SPD dassification according to IEC61643-11	Class I
Max continuous 0perating a.c. voltage Uc	275V/255V
Lightning impulse current (10/350µs) limp	50kA/100kA
Norminal discharge current (8/20µs) In	50kA/100kA
Voltage protection level Up	≤2.3kV
Follow current extinguishing capability a.c. lfi	25kA rms/100A rms
Max. backup fuse	315A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermoplastic UL94-V0

Dimension:

Anti Lightning Type 1 1P+NPE IP20 IEC61643-11 Surge Protection Device 0

Din Rail Anti-lightning Protective Arrester Operation Elements:

• SPD indoor fixedly mounted, limiting voltage.

• SPD has built-in disconnector, when SPD is invalid due to overheating or breakdown, the disconnector can automatically separate SPD from the network, meanwhile send an indication signal. If to be separated from network, the visible window will show red color.

• Max discharging current of each wire: up to 200KA.

Din Rail Anti-lightning Protective Arrester Installation:

• Adopts 35mm standard mounting rail. The cross sectional area of multi-strand soft copper conductor: 4 ~ 35 mm2.

• Generally it shall be mounted in the incoming side of main distribution panel or box.

• In order to eliminate the influence on normal service of power network due SPD is invalid, it shall add fuse or breaker to be connected in line. (NB: selected according to standard current In).

Certification:

Anti Lightning Type 1 1P+NPE IP20 IEC61643-11 Surge Protection Device 1

Company profile:

We have own factory. Most of staff have worked for our company for over 21 years. We have own designer, accept OEM & ODM, we can offer design service, high quality picture, video and so on. Our sale team members have several years' experience on the global trading. We have our own models of over hundreds until now.

Anti Lightning Type 1 1P+NPE IP20 IEC61643-11 Surge Protection Device 2

Factory:

Anti Lightning Type 1 1P+NPE IP20 IEC61643-11 Surge Protection Device 3

Shipping:

FAQ:

Q1: Are you Factory?
A: Yes, we are a 21 years factory with SPDs.

Q2: What’s the MOQ and Lead Time?
A: Our MOQ is 100pcs/Model. And the lead time is 20 days after confirmed the payment.

Q3: What is the payment and shipping?
A: We accept T/T, Paypal, L/C etc. And the shipping: DHL, FedEx, TNT, EMS, UPS ect.

Q4: What should I do if I can not find the model in your shop?
A: We have more than 100+ models including AC surge arrester, solar surge protector, data lightning protector and LED lightning arrester. Please contact our team for more models.

Q5: How about the after sale service?
A: If any crack on delivering, we would try best to help to solve it, refund, resend goods, or other ways.
