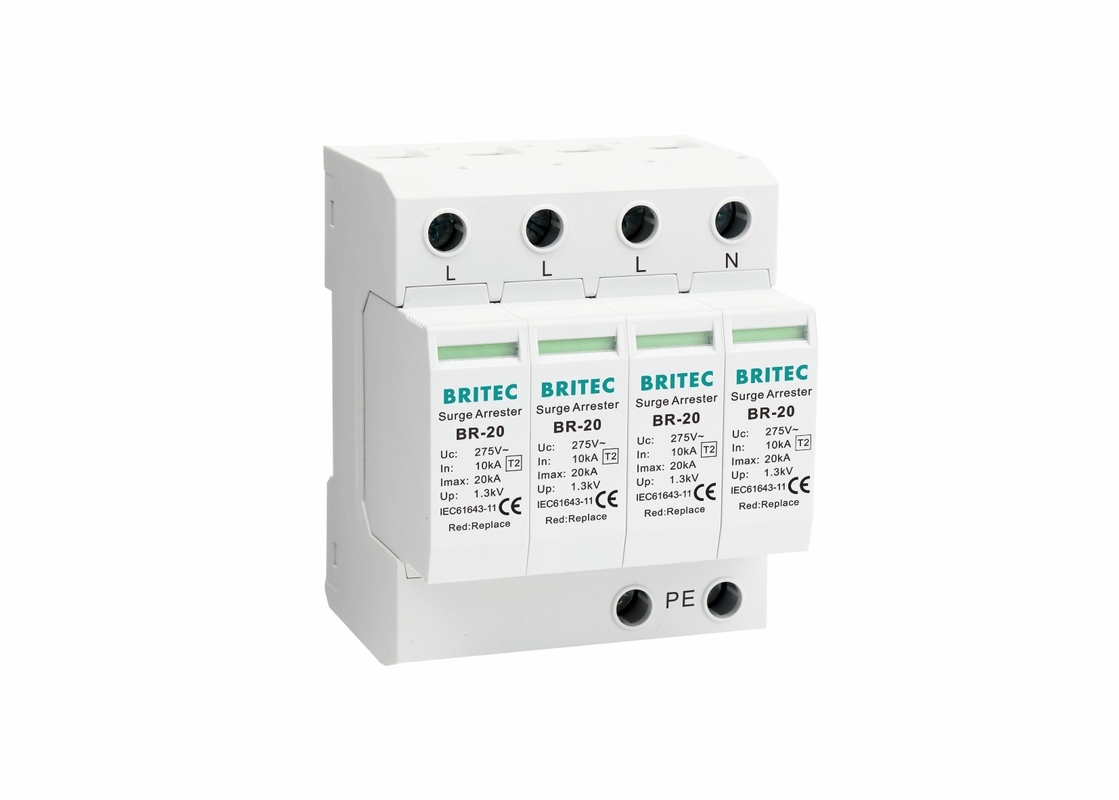

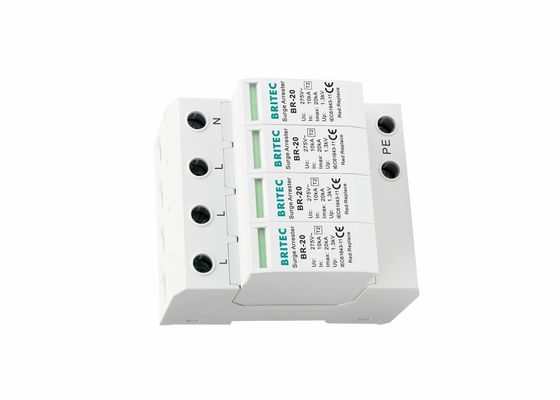

CE 20kA 4P Din Rail Class C Surge Protection Device Surge Arrester

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-20 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Item:	Surge Arrester	Test Standards:	IEC 61643-11 / EN61643-11
Uc:	150V / 275V / 320V / 385V / 440V	Class:	Type 2
In:	10kA	Imax:	20kA
Poles No.:	4P	TA:	≤25ns
Installation:	Din Rail	Application:	Power Plants
Highlight:	4P class c surge protection device , 20kA class c surge protection device , 4P din rail surge protector

Class C AC Imax (20KA) Three Phase AC Power Surge Protector Device - Din Rail Mountable –275V SPD

Class C AC Imax (20KA) Three Phase AC Power Surge Protector Device Product Description:

• With our sustained efforts & dedicated management, we have been able to offer qualitative Class C Surge Arrester.

• Protection of heavy-loaded electrical circuits from overload

• Surge protector.

• Used to protect not only particular consumers/circuits, but also the whole panel

• Precisely designed, this surge arrester is generally used in electrical industry.

• On-Off indicating window: Green: normal function; Red: functionless, immediate replacement required.

• Surge arrestor.

• Provided surge arrester is not only manufactured from excellent quality raw material and the latest technology but also properly checked on diverse parameters.

• Din Rail mountable.

Class C AC Imax (20KA) Three Phase AC Power Surge Protector Device Product Details:

	BR-20 150 4P	BR-20 275 4P	BR-20 320 4P	BR-20 385 4P	BR-20 440 4P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	10kA	10kA	10kA	10kA	10kA
Max. discharge current(8/20μs) Imax	20kA	20kA	20kA	20kA	20kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Max. backup fuse	63A gG	63A gG	63A gG	63A gG	63A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

Technology characteristic:

CE 20kA 4P Din Rail Class C Surge Protection Device Surge Arrester 0

Class C AC Imax (20KA) Three Phase AC Power Surge Protector Device Features:

• Application specific design.

• The product, using metal oxide varistor, designed to protect both phase and neutral line, is of high electricity resistance under normal operations.

• Protects from surge.

• Plug-in type function unit makes easy replacement On-off indicating window

• Excellent strength.

• Quick response less than 25ns

• The product is manufactured in China.

• Pole No. : 1P, 2P, 3P, 4P, 1+1, 3+1

• Simple installation.

• Frequency: 50/60Hz.

• It is a reliable product.

Class C AC Imax (20KA) Three Phase AC Power Surge Protector Device Application:

• BR-20 series surge protective devices are suitable for C grade surge protection, which protects the electrical network not shocked by the thunder.

• BR-20 Surge protective Devices (referred as SPD) provide protection against surge current resulted from direct or indirect lightning strike or similar surge voltage.

• The Britec BR-20 series surge protection devices are usually installed in low voltage main distribution box connected to the incoming end of the buildings.

• SPD is applicable to circuit with rated frequency 50/60Hz.

• In case of surge current or voltage caused by lightning strike or similar, SPD functions quickly to conduct the surge voltage/current to earth and thus effectively prevent the downstream equipment of its protected line from destruction. SPD resume its high electricity resistance to secure normal operation of the protected power network without presence of the surge voltage.

Why Choose Us:

- Professional surge protective device supplier in China for over 17 years, established in 2003;

- Good reputations from clients.

- ISO 9001 Certified.

- High quality products with TUV, CE, CB certificate;

- Powerful and advanced testing equipment;

- OEM, ODM available

Shipping:

About Us:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing city, Zhejiang province, is a comprehensive international manufacturer & trading company for SPD products. Most of our products are sold to Sweden, Denmark, Germany, United Kingdom, French, Italy, Spain, France, Hungary, Slovakia, Croatia, Canada, Mexico, Brazil, Argentina, Australia, New Zealand, South Korea, Hongkong, Japan, Singapore, Malaysia, Thailand, Indonesia, Israel, other countries and regions. Our business principle is to satisfy our customers with honest, surefooted and considerate service. We sincerely and warmly expect customers and friends from the world to cooperate with us for mutual development and more prosperous future.

CE 20kA 4P Din Rail Class C Surge Protection Device Surge Arrester 2

Workshop:

CE 20kA 4P Din Rail Class C Surge Protection Device Surge Arrester 3

Certifications:

CE 20kA 4P Din Rail Class C Surge Protection Device Surge Arrester 4

FAQ:

Q1: What is the MOQ of each item?
A: Usually the MOQ is 100 pcs. If this product we have in stock, there is no limitation for MOQ.

Q2: Do you have any guarantee for products?
A: Yes, sure. All the product have two years guarantee. Any problem feel free to contact us.

Q3: Are you a factory or a trading company?
A: We are a factory with trading lines. We have in SPD field for more than 17 yeas. We have full experience of producing surge protection.

Q4: How to control the quality?

A: Each New product must be test before shipment. Our production line full with professional skills and strict stardars.

Q5: How long does it take to delivery?
A: If have stock, within one week we can finished all the delivery. If no have stock, normally around 3 weeks. It is depends on order's quantity.
