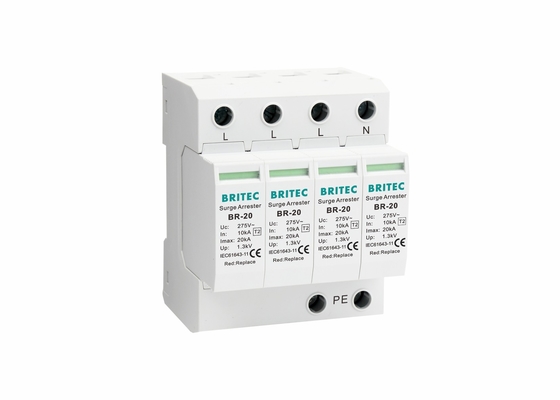

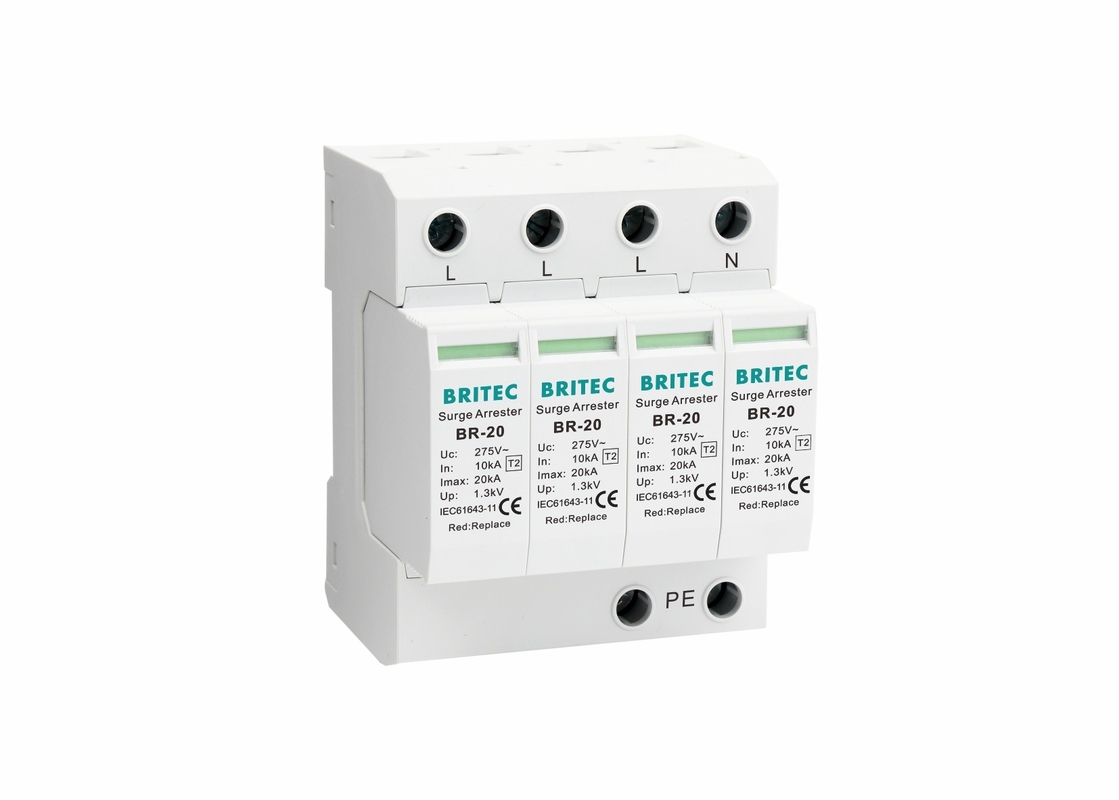

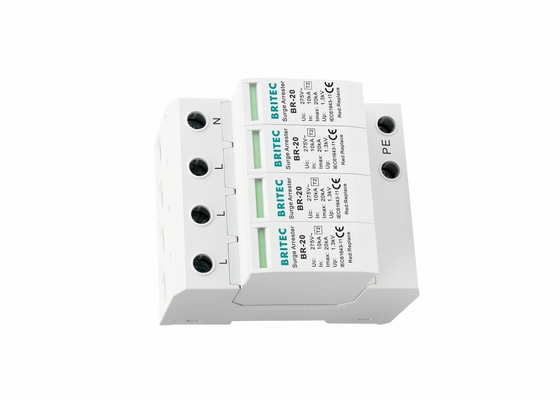

Name: 20ka 4P Anti Thunder Protection Device Ac Power Surge Protector
Brand: Britec Electric Co., Ltd.
SKU: BR-20 4P
Price: Negotiable USD
Availability: InStock

Home Products Surge Protection Device

20ka 4P Anti Thunder Protection Device Ac Power Surge Protector

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE/CB/TUV/ISO9001
Model Number:	BR-20 4P

Payment & Shipping Terms:

Minimum Order Quantity:	100 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Item:	Power Surge Protector	Test Standards:	IEC 61643-11 / EN61643-11
Voltage:	AC 230/400V	Uc:	150V / 275V / 320V / 385V / 440V
Class:	Type 2	In:	10kA
Imax:	20kA	Poles No.:	4P
Transport Package:	Box/carton	Installation:	35 Mm Din Rail
Highlight:	thunder protection device , 4P ac power surge protector , 20ka ac power surge protector

20ka Surge Protection Device 4P AC Anti‑Thunder Modular Appliances Safe and Reliable

20ka Surge Protection Device 4P AC Anti‑Thunder Modular Specification:

• Item Type: Surge Protection Device.

• The internal components have accurate chips, precise accuracy, strong conductivity and better thunder protection.

• Rated Current: 10ka

• Setting Current: 20ka

• With strict quality control and quality assurance, high safety factor, can be used with peace of mind

• Installation Method: Rail installation

• Using high‑quality materials, strong and durable, has a long service life

• Rated Voltage: 150V/275V/320V/385V/440V

• Small size, easy to carry and store, convenient to use and with good performance.

• Number of Main Contacts: 4P

• Adopt plug‑in module setting, simple maintenance and convenient use

• Scope of Application: Electrical

• Anti-thunder protection design, the product can prevent the home power system from being damaged due to excessive impact during thunder.

• Wiring Method:3-phase 4-wire

• Fastened rail snap design, like claws, tightly clamped rails which are not easy to loose. Fault alarm indication, green indicates normal operation, red indicates failure

• Protection Type: Level 2

• Flame retardant shell, fire proof, safe to use

• Response Time: 25ns.

20ka Surge Protection Device 4P AC Anti‑Thunder Modular Product Details:

	BR-20 150 4P	BR-20 275 4P	BR-20 320 4P	BR-20 385 4P	BR-20 440 4P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	10kA	10kA	10kA	10kA	10kA
Max. discharge current(8/20μs) Imax	20kA	20kA	20kA	20kA	20kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Max. backup fuse	63A gG	63A gG	63A gG	63A gG	63A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

Dimension:

20ka 4P Anti Thunder Protection Device Ac Power Surge Protector 0

20ka Surge Protection Device 4P AC Anti‑Thunder Modular Application:

• Widely used in workshops, outdoor monitoring boxes, companies, households, etc.

• BR-20 series surge arrester mainly applies at power line of AC 50Hz/60Hz, rated operational voltage 230V and 400V to limit instantaneous over-voltage (lightning induction and switching over-voltage).

• Prevent the danger of thunder strikes; protect the circuit safety, quick response, and good thunder protection effect.

• It makes the protected electrical device and parts lower one level at occasion of higher over-voltage category, and lower down the voltage further when applied at terminal to protect devices.
