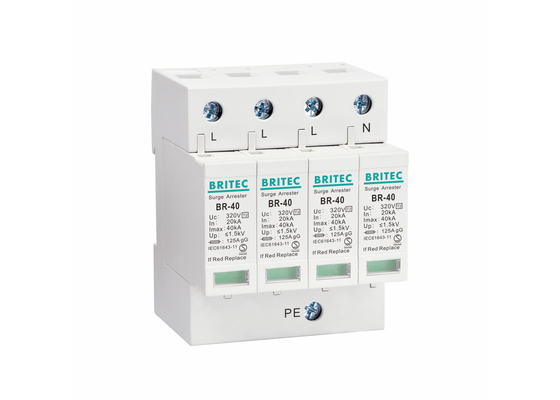

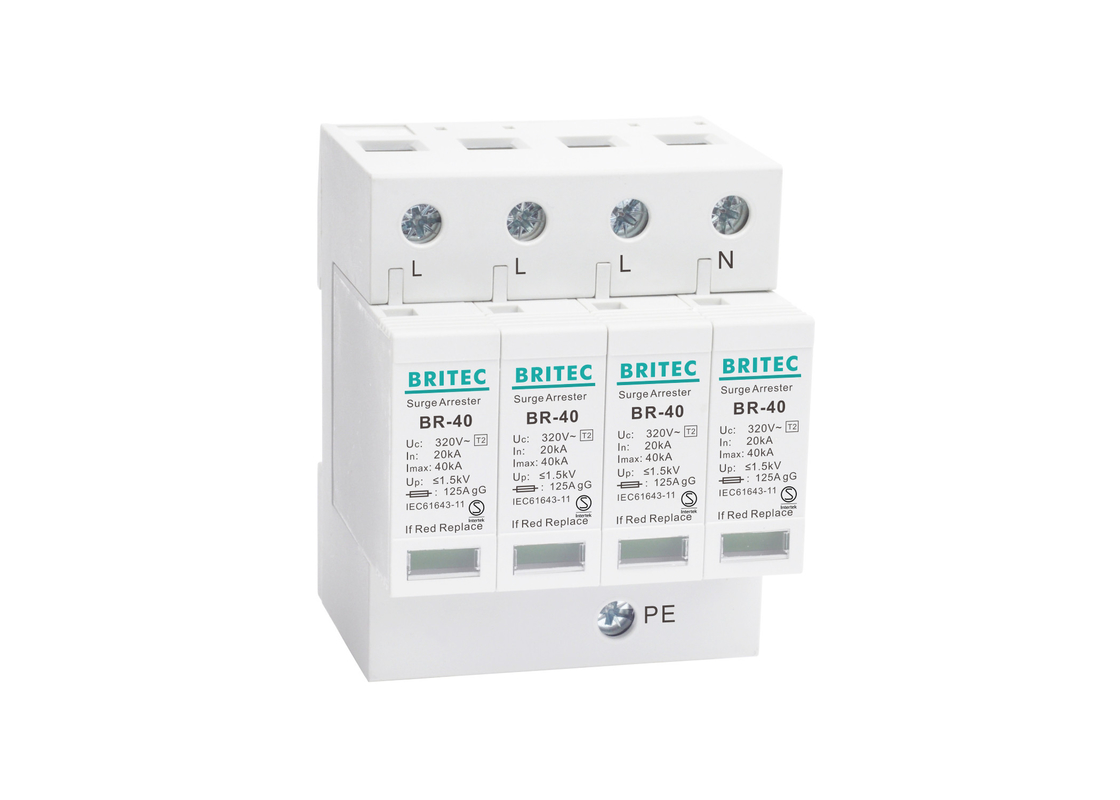

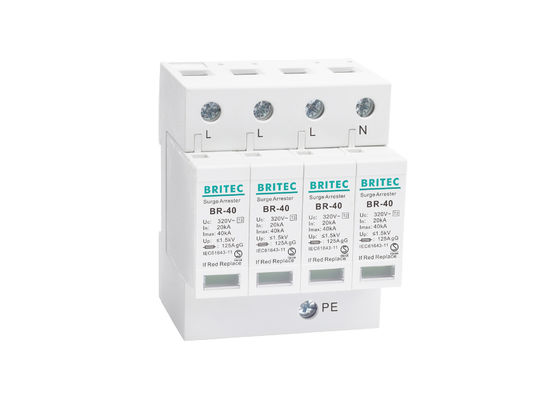

Name: IEC61643 40KA 4 Poles AC Electrical Surge Protector Lightning Protection
Brand: Britec Electric Co., Ltd.
SKU: BR-40 4P
Price: Negotiable USD
Availability: InStock

Home Products Surge Protection Device

IEC61643 40KA 4 Poles AC Electrical Surge Protector Lightning Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CE/CB/ISO9001
Model Number:	BR-40 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Product Type:	Type 2
Uc:	150V / 275V / 320V / 385V / 440V	In:	20kA
Imax:	40kA	Poles Number:	4 Poles
TA:	≤25ns	Mounting On:	35mm Din Rail
Application:	AC Electrical Surge Protector	Item:	Surge Arrester
Highlight:	40KA Electrical Surge Protector , IEC61643 Electrical Surge Protector , 40KA ac surge protector

20 kA to 40 kA Surge Protective Device Plastic 4 Poles Electrical Surge Protector

20 kA to 40 kA Surge Protective Device Product Description:

• Type: Protection Device.

• This high quality AC SPD is a surge protection device suitable for power supply system of AC 50/60 Hz

• Features: Durable, Stable Performance.

• It is designed according to IEC61643-1, GB18802.1 standards.

• Protection: Low Voltage.

• There is a failure release mounted on the module of surge protection device.

• AC SPD - Britec Make.

• When the SPD fails in breakdown, for over heat and over current, the failure release will help electrical equipment to separate from the power supply system and give the indication signal, green or red.

• 3 Phases – BR-40 Compact.

• Surge protective device, plug.

• All IEC Certificates Available

20 kA to 40 kA Surge Protective Device Product Details:

	BR150 40 4P	BR275 40 4P	BR320 40 4P	BR385 40 4P	BR440 40 4P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

Dimension:

20 kA to 40 kA Surge Protective Device Characteristic:

• The visual window color said protector working state; green (normal), red (fault).

• Protects electric systems and on-loading electrical apparatus from indirect lightning surges and instantaneous over voltage.

• Hot melt flow double protection.

• High energy surge protection, ns response speed

• The configuration remote communication interface, can realize remote control.

20 kA to 40 kA Surge Protective Device Product Highlights:

1. Safety super wide electrical spacing and creepage distance, high voltage withstands voltage, meet high altitude area use requirement.

2. Remote alarm interface

3. No load current is considered; plug and pull design, easy to maintain.

4. High flame retardant, anti-corrosion

5. Built-in temperature control circuit technology, high safety performance, no after flow.

6. Pluggable module design

7. Indicates that the green color of the window is normal and any red indicates failure. Clear and easy to distinguish.

8. The built-in flash interrupter device

9. Optional remote monitoring interface can be used for remote monitoring.

10. Connectable lightning current and surge arrestor

11. High working voltages, high pass flow, high safety performance and high stability.

Our Services:

• 21 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

Installation:

• The type 2 arresters must install into sub-distribution boards after main distribution boards containing type 1 arresters.

• For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.

• In areas where storms are frequent, it is strongly recommended to install additional protection systems.

Certificate:

Company profile:

Wenzhou Britec Electric Co., Ltd is a manufacturer and trading company located in Yueqing city, Zhejiang province, we have more than 21 years experiences in SPD producing. Our factory is equipped with advanced machinery, also we created much experience in new product development, so can customize products per your requirements. We know that cooperation, support and service is most important and hence employed experienced and customer friendly sales, this ensures a good understanding of your requirements, on time delivery and ultimately a satisfied customer base. We are not just thriving, but growing day by day, we always provide our customers with highly quality products in affordable cost; we sincerely hope to have you as our esteemed customer and friend.

IEC61643 40KA 4 Poles AC Electrical Surge Protector Lightning Protection 2

Laboratory equipment:

IEC61643 40KA 4 Poles AC Electrical Surge Protector Lightning Protection 3

Shipping:

FAQ:

1. How can I get a quotation?

--Kindly provide us your details request, leave us an inquiry or email and we will response promptly!

2. How to pay for order?

--T/T, Paypal, L/C, ect.

3. How can I trust you and your company?

--We are focusing on the long term relationship with customers, we have worked with thousands of customers since company built 21 years ago, customers always make highly complimentary remarks

4. What’s the process of order?

--Send us Inquiry→get quotation→payment done→mass production.

5. When can I expect the customized product to be finished?

--Sample: 10 working days (Standard).

--Bulk order: 20 working days (Standard).

6. Delivery & Shipment

--Air shipping, Couirer (DHL, UPS, FEDEX, TNT, EMS, ect ), Sea shipment(FCL/LCL).
