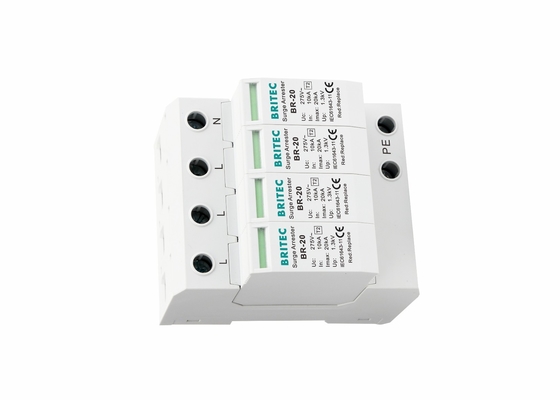

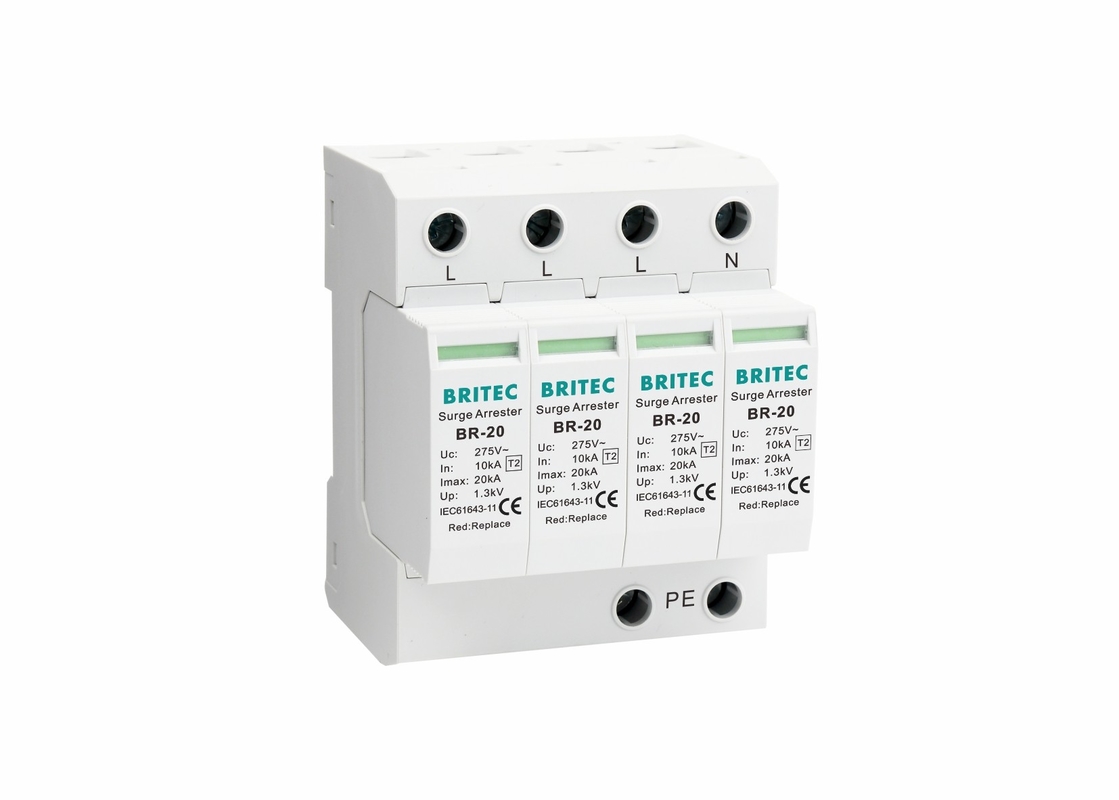

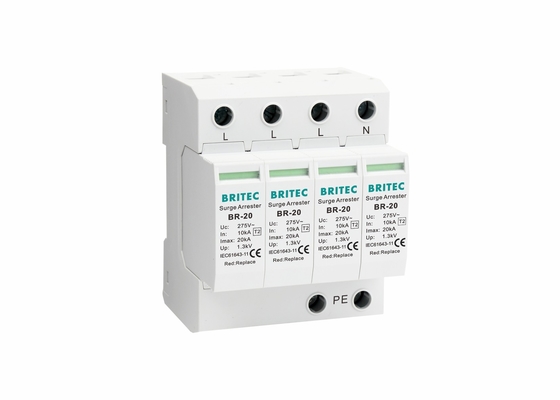

Name: AC 4P Type 2 20kA Lightning Protector Whole House SPD Surge Protection Device
Brand: Britec Electric Co., Ltd.
SKU: BR-20 4P
Price: Negotiable USD
Availability: InStock

Home Products Surge Protection Device

AC 4P Type 2 20kA Lightning Protector Whole House SPD Surge Protection Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE/CB/TUV/ISO9001
Model Number:	BR-20 4P

Payment & Shipping Terms:

Minimum Order Quantity:	100 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Product Name:	Surge Protective Device	Standards:	IEC 61643-11 / EN61643-11
Uc:	150V / 275V / 320V / 385V / 440V	Class:	Type 2
In:	10kA	Imax:	20kA
Poles No.:	4P	TA:	≤25ns
Warranty:	5 Years	Application:	AC Power System
Highlight:	20kA Surge Protection Device , EN61643 Surge Protection Device , 20kA whole house surge protector

AC 4P Type 2 from 10 kA to 20 kA Lightning Protection Surge Protectors Home Energy SPD China Supply

AC 4P Type 2 from 10 kA to 20 kA Lightning Protection Surge Protectors Home Energy SPD Description:

• Consistent pluggability.

• Precisely designed, this surge arrester is generally used in electrical industry.

• Own developed technology to manufacture MOV.

• Application specific design

• Thermal disconnect device for each individual connector.

• Excellent strength

• Optical, mechanical status indication for the individual arresters.

• Second stage in low voltage installations (TT and TN-S installations).

• With or without floating remote indication contact.

• Surge suppressor to IEC standard II and VDE class C.

• Suitable for almost all network configurations.

• It is widely used in home, third industry and industrial fields to protect sensitive lines and protect the surge of lightning and direct lightning or other instantaneous overvoltage.

• Din rail mountable (35 mm)

AC 4P Type 2 from 10 kA to 20 kA Lightning Protection Surge Protectors Home Energy SPD Product Details:

	BR-20 150 4P	BR-20 275 4P	BR-20 320 4P	BR-20 385 4P	BR-20 440 4P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	10kA	10kA	10kA	10kA	10kA
Max. discharge current(8/20μs) Imax	20kA	20kA	20kA	20kA	20kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Max. backup fuse	63A gG	63A gG	63A gG	63A gG	63A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

Dimension:

AC 4P Type 2 20kA Lightning Protector Whole House SPD Surge Protection Device 0

AC 4P Type 2 from 10 kA to 20 kA Lightning Protection Surge Protectors Home Energy SPD Installation:

• Surge protection (type 2) should be fitted at the origin of the supply to the property. This can be installed inside the existing consumer unit, fed from the consumer unit and fitted in its own enclosure, or fed from the supply tails and fitted in its own enclosure.

• The combined length of the conductors in relation to the current path should be <0.5M and not exceed 1M.

AC 4P Type 2 from 10 kA to 20 kA Lightning Protection Surge Protectors Home Energy SPD Structure and Principle:

• SPD is a port, shocking protection, and indoor-mounted installation, voltage-limited.

• SPD hold disconnector inside, when SPD breakdown failure by overheating, the disconnector can remove from the power grid automatically, and show indication signal. When SPD is working properly, visible window display green, it display red when it breakdown and disconnect.

Why Choose Us:

- Professional surge protective device supplier in China for over 21 years, established in 2003;

- Good reputations from clients.

- ISO 9001 Certified.

- High quality products with TUV, CE, CB certificate;

- Powerful and advanced testing equipment;

- OEM, ODM available

Shipping:

About Us:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing city, Zhejiang province, is a comprehensive international manufacturer & trading company for SPD products. Most of our products are sold to Sweden, Denmark, Germany, United Kingdom, French, Italy, Spain, France, Hungary, Slovakia, Croatia, Canada, Mexico, Brazil, Argentina, Australia, New Zealand, South Korea, Hongkong, Japan, Singapore, Malaysia, Thailand, Indonesia, Israel, other countries and regions. Our business principle is to satisfy our customers with honest, surefooted and considerate service. We sincerely and warmly expect customers and friends from the world to cooperate with us for mutual development and more prosperous future.

AC 4P Type 2 20kA Lightning Protector Whole House SPD Surge Protection Device 2

Workshop:

AC 4P Type 2 20kA Lightning Protector Whole House SPD Surge Protection Device 3

Certifications:

AC 4P Type 2 20kA Lightning Protector Whole House SPD Surge Protection Device 4

FAQ:

Q1: What is the MOQ of each item?
A: Usually the MOQ is 100 pcs. If this product we have in stock, there is no limitation for MOQ.

Q2: Do you have any guarantee for products?
A: Yes, sure. All the product have two years guarantee. Any problem feel free to contact us.

Q3: Are you a factory or a trading company?
A: We are a factory with trading lines. We have in SPD field for more than 21 yeas. We have full experience of producing surge protection.

Q4: How to control the quality?

A: Each New product must be test before shipment. Our production line full with professional skills and strict stardars.

Q5: How long does it take to delivery?
A: If have stock, within one week we can finished all the delivery. If no have stock, normally around 2-3 weeks. It is depends on order's quantity.
