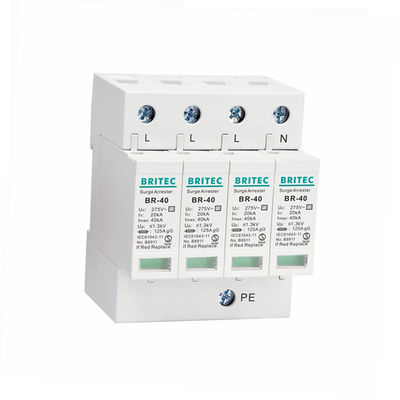

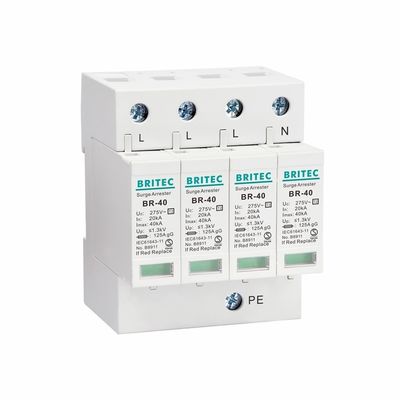

Name: Lightning Protection 4P AC230V 3 Phase Surge Protection Device
Brand: Britec Electric Co., Ltd.
SKU: BR-40 4P
Price: Negotiable USD
Availability: InStock

Home Products Surge Protection Device

Lightning Protection 4P AC230V 3 Phase Surge Protection Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR-40 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Item:	Surge Arrester	Test Standards:	IEC 61643-11 / EN61643-11
Uc:	150V / 275V / 320V / 385V / 440V	In:	20kA
Imax:	40kA	Poles Number:	4P
Mounting On:	35mm Din Rail	IP Degred:	IP20
Highlight:	4P 3 phase surge protection device , AC230V 3 phase surge protector , AC230V three phase surge protector

20ka-40ka 3 Phase Surge Protector SPD Lightning Arrester AC 320V Lightning Protective

20ka-40ka 3 Phase Surge Protector SPD Lightning Arrester Description:

• BR-40 Series surge protective device( hereinafter referred to as SPD) are suitable for AC 50/60Hz, rated voltage up to 440v IT, TT, TN-C, TN-S, TN-C-S and other power supply system

• Failure indication and centralized remote signalling alarm dry contacts.

• It protect to indirect and direct lightning effect or other transient overvoltage

• High discharge capacity and low residual voltage.

• SPD design according with GB18802.1/IEC61643-1 standard.

• Over-temperature protection.

• Class II / Type 2 AC surge arrester.

• IP20, UL94 V0

20ka-40ka 3 Phase Surge Protector SPD Lightning Arrester Product Details:

	BR-40 150 4P	BR-40 275 4P	BR-40 320 4P	BR-40 385 4P	BR-40 440 4P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

Dimension:

Lightning Protection 4P AC230V 3 Phase Surge Protection Device 0

20ka-40ka 3 Phase Surge Protector SPD Lightning Arrester Feature:

- Consisting of a base part and 4 MOV plug-in protection modules.

- Protects electronics from damage or destruction due to overvoltages.

- For using in the lightning protection zones concept at boundary 1-2.

- Supplied with replaceable cartridges.

- The core parts are metal oxide varistor components with high discharge capacity.

- DIN Rail Mounted Fitting

- Low residual voltage and quick response.

- Modular SPD

- Reliable control.

- Special design for saving installation space--- width 18mm/pole.

- With remote signaling contact for control device.

- High discharge current --- Imax 40kA per pole.

- Fault indication via red mark in the inspection window.

- Double thermal disconnection devices, providing more reliable protection

- Protection mode: L1, L2, L3-PE, N-PE

20ka-40ka 3 Phase Surge Protector SPD Lightning Arrester Applicable Scope:

1: BR-40 series SPD is suitably used in the TT, TN-S, TN-C, IT, TN-C-S and etc. power supply system of AC 50/60HZ.

2: AC power line of house, bank, and telecom tower and so on.

3: Suitable for system power protection, such as power distribution cabinet, switch cabinet, switch cabinet, AC distribution board, etc.

4: Applied in modular SPD Class II (Class C) for power supply system.

5: BR-40 SPD to protect from direct and indirect lightning impulse and other transient over voltage.

6: Distribution box with outdoor input in the building and each floor

Our Services:

• 21 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

Installation:

• The type 2 arresters must install into sub-distribution boards after main distribution boards containing type 1 arresters.

• For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.

• In areas where storms are frequent, it is strongly recommended to install additional protection systems.
