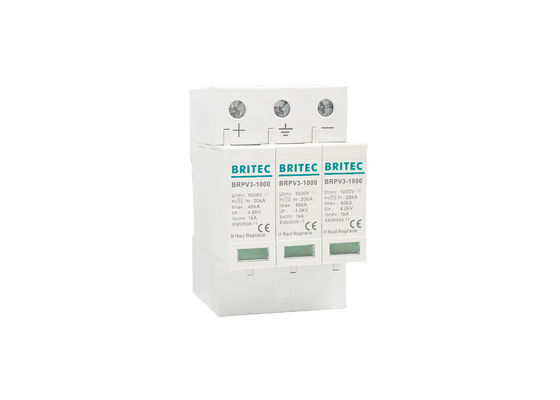

Name: 3P 1000V DC Surge Protection Device SPD Type 2 IP20 Protection
Brand: Britec Electric Co., Ltd.
SKU: BRPV3-1000
Price: Negotiable USD
Availability: InStock

Home Products Power Surge Protection Device

3P 1000V DC Surge Protection Device SPD Type 2 IP20 Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRPV3-1000

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Standard:	IEC61643 / EN50539-11	Module:	3
Max Voltage:	1000V	Imax:	40kA
Up:	≤4.0kV	TA:	≤25ns
Operating State/fault Indication:	Green/red	Degree Of Protection:	IP20
Mounting On:	35mm Din Rail	Cross-section Area:	4—35mm²
Highlight:	1000V dc surge protection device , 3P dc surge protection device , 3P dc spd type 2

PV SPD 3P 1000V Type 2 Low Voltage Surge Arrester 20-40ka for Over Voltage Protection

PV SPD 3P 1000V Type 2 Low Voltage Surge Arrester Description:

• DC Surge protection device to protect your PV installation.

• BRPV3 series PV Surge Protective Device 40KA DC 1000V SPD suitable for the new energy wind power generation system.

• Rated voltage: 1000 V DC.

• It is installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.

• Maximum discharge current: 40KA.

• Module design, convenient installation, with easy electric maintains operation

• High Energy Varistor.

• Built-in over current and over heat, temperature control open circuit technology.

• High effective for lightning protection.

PV SPD 3P 1000V Type 2 Low Voltage Surge Arrester Product Details:

	BRPV3 1000
SPD classification according to EN61643-11	Type 2
SPD classification according to EN50539-11	Class II
Max. continuous operating dc voltage Ucpv	1000V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤4.0kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
Order Code	B8010
Order code(With remote signal)	B8012

Technology characteristic:

3P 1000V DC Surge Protection Device SPD Type 2 IP20 Protection 0

PV SPD 3P 1000V Type 2 Low Voltage Surge Arrester Features:

• Surge Protection Device is specially designed for photo-voltaic applications.

• The DC SPD complies with PV standard EN 50539-11 and future standard IEC 61643-31: Low-voltage surge protective devices-Part 31: Requirements and tests methods for SPDs for photovoltaic applications.

• This SPD is intended for installation at the DC input of PV inverters and provides Type 2 Surge Protection.

PV SPD 3P 1000V Type 2 Low Voltage Surge Arrester Application:

• BRPV3-1000 is a type 2 surge arrester for DC and photovoltaic application.

• Protect the solar equipment like solar panels and solar inverter from surges damage and overvoltage.

• Improve the PV system safety and longer the PV system life.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Company profile:

Wenzhou Britec Electric Co.,Ltd is a company specialized in SPD products for many years; Using the brand for many years exporting of which it's experience enables Britec the ability to know what customers need, what end users need. Top quality and best services is our first and formost belief. welcome to cooperate with us, welcome to join us!

3P 1000V DC Surge Protection Device SPD Type 2 IP20 Protection 1

Workshop show:

Certifications:

FAQ:

1. Who are we?
A: We are based in Yueqing, Zhejiang, China, start from 2003, sell to Europe, South America, Mid East, Southeast Asia, Africa.

2. How can we guarantee quality?
A: Always final Inspection before shipment;

3. What can you buy from us?
A: All kinds of SPDs.

4. Why should you buy from us not from other suppliers?
A: Focus on customer service always!

5. What services can we provide?
A: Accepted Delivery Terms: FOB, CIF, EXW
Accepted Payment Currency:USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, PayPal;
Language Spoken:English, Chinese
