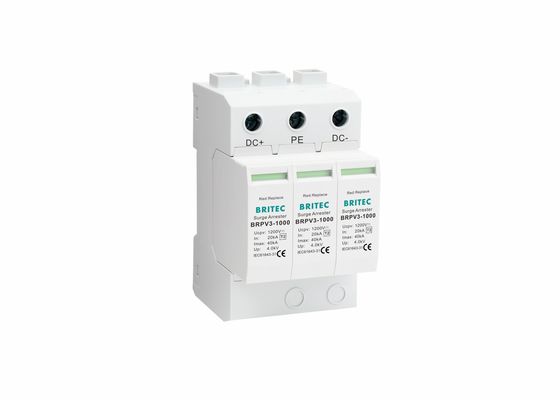

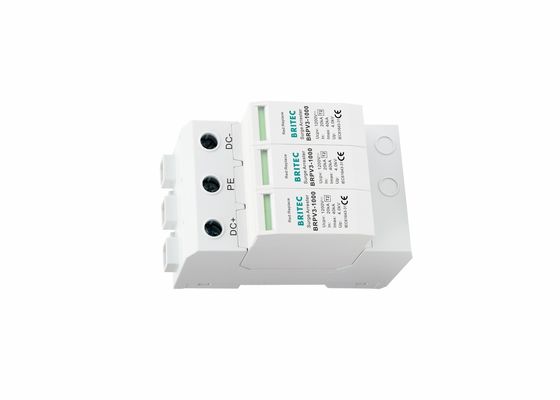

Name: EN61643-31 DC 3P Solar Surge Protection Device High Temperature Resistant
Brand: Britec Electric Co., Ltd.
SKU: BRPV3-1000
Price: Negotiable USD
Availability: InStock

Home Products Surge Protection Device

EN61643-31 DC 3P Solar Surge Protection Device High Temperature Resistant

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE/TUV/CB
Model Number:	BRPV3-1000

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	EN61643-31 / IEC61643-31	Number Of Poles:	3P
Voltage Range DC:	600-1500V DC	Imax:	40kA
Format:	Pluggable	TA:	≤25ns
Operating Temperature:	-40℃...+80℃	Degree Of Protection:	IP20
Mounting On:	35mm Din Rail	Cross-section Area:	4—35mm²
Highlight:	3P solar surge protection device , EN61643-11 solar surge protection device , 3P dc surge protector solar

DC Solar Surge Protection 3P for Photovoltaic System SPD Pluggable Lightning Protective Device

DC Solar Surge Protection 3P for Photovoltaic System SPD Description:

• Rated voltage: 1000 V DC

• It is design according to IEC and GB standard

• Maximum discharge current: 40KA

• It is use for high temperature resistant plastic with excellent tightness, and easy to install wiring.

• High Energy Varistor

• Adopt temperature control circuit technology which has built-in over current breakers and thermal fuse circuit breakers

• High effective for lightning protection

DC Solar Surge Protection 3P for Photovoltaic System SPD Product Details:

	BRPV3 1000
SPD classification according to EN61643-31	Type 2
SPD classification according to IEC61643-31	Class II
Max. continuous operating dc voltage Ucpv	1200V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤4.0kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20
Order Code	B18010
Order code(With remote signal)	B18012

Dimension:
EN61643-31 DC 3P Solar Surge Protection Device High Temperature Resistant 0

DC Solar Surge Protection 3P for Photovoltaic System SPD Application:

• This solar 20KA-40KA SPD is applied to provide fine overvoltage protection of electronic equipment whose power is supplied by direct-current power supply.

• This surge protector is usually installed in distribution-box, protecting PV system devices in photovoltaic generator circuit.

• It is widely used in the DC power lightning protection of solar power systems, mobile communication base stations, microwave communications bureau, telecommunications room, plant, civil aviation, finance, securities and other system.

DC Solar Surge Protection 3P for Photovoltaic System SPD Instruction:

BRPV3-1000 Photovoltaic Surge Protector designed according to IEC 61643-31 / GB 18802.11. And is mainly applied in photovoltaic system, with three-step d.c. switching device, the max. PV voltage up to Ucpv ≤ 1200V dc; Protecting photovoltaic generator and inverter and so on

Our Services:

• 21 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Company profile:

Wenzhou Britec Electric Co.,Ltd is a company specialized in SPD products for many years; Using the brand for many years exporting of which it's experience enables Britec the ability to know what customers need, what end users need. Top quality and best services is our first and formost belief. welcome to cooperate with us, welcome to join us!

EN61643-31 DC 3P Solar Surge Protection Device High Temperature Resistant 1

Workshop show:

Certifications:

FAQ:

1. Who are we?
A: We are based in Yueqing, Zhejiang, China, start from 2003, sell to Europe, South America, Mid East, Southeast Asia, Africa.

2. How can we guarantee quality?
A: Always final Inspection before shipment;

3. What can you buy from us?
A: All kinds of SPDs.

4. Why should you buy from us not from other suppliers?
A: Focus on customer service always!

5. What services can we provide?
A: Accepted Delivery Terms: FOB, CIF, EXW
Accepted Payment Currency:USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, PayPal;
Language Spoken:English, Chinese
