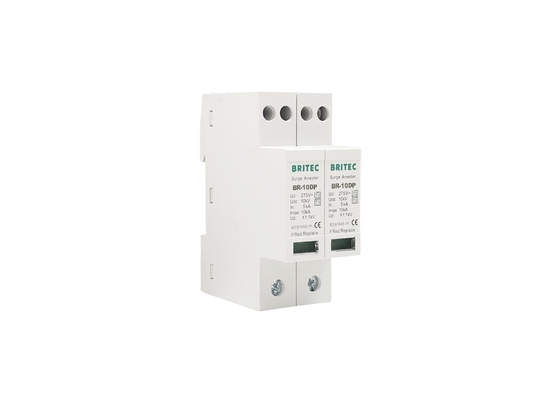

Dinrail 10kA Type 3 Spd Surge Protector Three Phase Remote Lightning Proof

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-10DP 3P+NPE

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Item:	Surge Protective Device	Type:	Class III
Test Standards:	IEC 61643-11 / EN61643-11	Un:	24V / 60V / 120V / 230V
In:	5kA	Uoc:	10kV
Material:	Thermal Plastic UL94-V0	Response Time:	≤25ns
Mounting On:	35mm Din Rail	Warranty:	2 Years
Highlight:	10kA type 3 spd surge protector , Dinrail type 3 spd surge protector , Dinrail 3 phase surge protector

Class III Type 3 Surge Protective Devices 10kA MOV SPD Three Phase Remote & Non Remote

Class III Type 3 Surge Protective Devices 10kA MOV SPD Feature:

• Type 3 surge protective devices shall be installed as close as possible from the sensitive equipment to protect.

• The BR-10DP series of modular surge protection devices provides protection of equipment connected to incoming low voltage AC power supplies against the damaging effects of transient over voltages caused by local lightning strikes, or the switching of electrical inductive or capacitive loads.

• Tested with a 1.2/50 - 8/20 current combination wave generator, they ensure a very low protection level voltage value.

Class III Type 3 Surge Protective Devices 10kA MOV SPD Product Details:

	BR30-10DP 3+1	BR75-10DP 3+1	BR150-10DP 3+1	BR275-10DP 3+1
SPD classification according to EN61643-11	Type 3	Type 3	Type 3	Type 3
SPD classification according to IEC61643-11	Class III	Class III	Class III	Class III
Nominal a.c. voltage Un	24V	60V	120V	230V
Max. continuous operating a.c. voltage Uc	30V	75V	150V	275V
Max. continuous operating d.c. voltage Uc	38V	100V	190V	300V
Nominal discharge current (8/20us) In	5kA	5kA	5kA	5kA
Combined impulse Uoc	10kV	10kV	10kV	10kV
Voltage protection level Up	≤200V	≤500V	≤700V	≤1100V
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red
Cross-section area (Min.)	2.5mm²	2.5mm²	2.5mm²	2.5mm²
Cross-section area (Max.)	16mm²	16mm²	16mm²	16mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20

Dimension:

Dinrail 10kA Type 3 Spd Surge Protector Three Phase Remote Lightning Proof 0

Class III Type 3 Surge Protective Devices 10kA MOV SPD Main benefits:

• Extremely low level of protection voltage value that is suitable for all sensitive terminal equipment.

• Connection bases can be supplied either with, or without, additional remote indication facility

• Good value of Imax 10kA

• The BR-10DP series offers DIN rail mount connection bases

• Common and differential mode of protection

Class III Type 3 Surge Protective Devices 10kA MOV SPD Application:

• Type 3 would be fitted to a final circuit or at an item of equipment to protect locally against switching overvoltages

• It must therefore mandatorily be installed as a supplement to Type 2 SPD and in the vicinity of sensitive loads.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Noted:

• Type 3 surge protective devices are generally installed right in front of the terminal device to be protected.

• Effective surge protection is not just simply installed. It has to be individually coordinated – to the system that is to be protected and the ambient conditions that are prevalent on site. For this reason, the design and concept must be consistent. This means many details must be taken into account, from considering the standards and stipulations right through to classification according to lightning protection zone.

• Surge protection should ensure that surge voltages cannot cause damage to installations, equipment or end devices.
