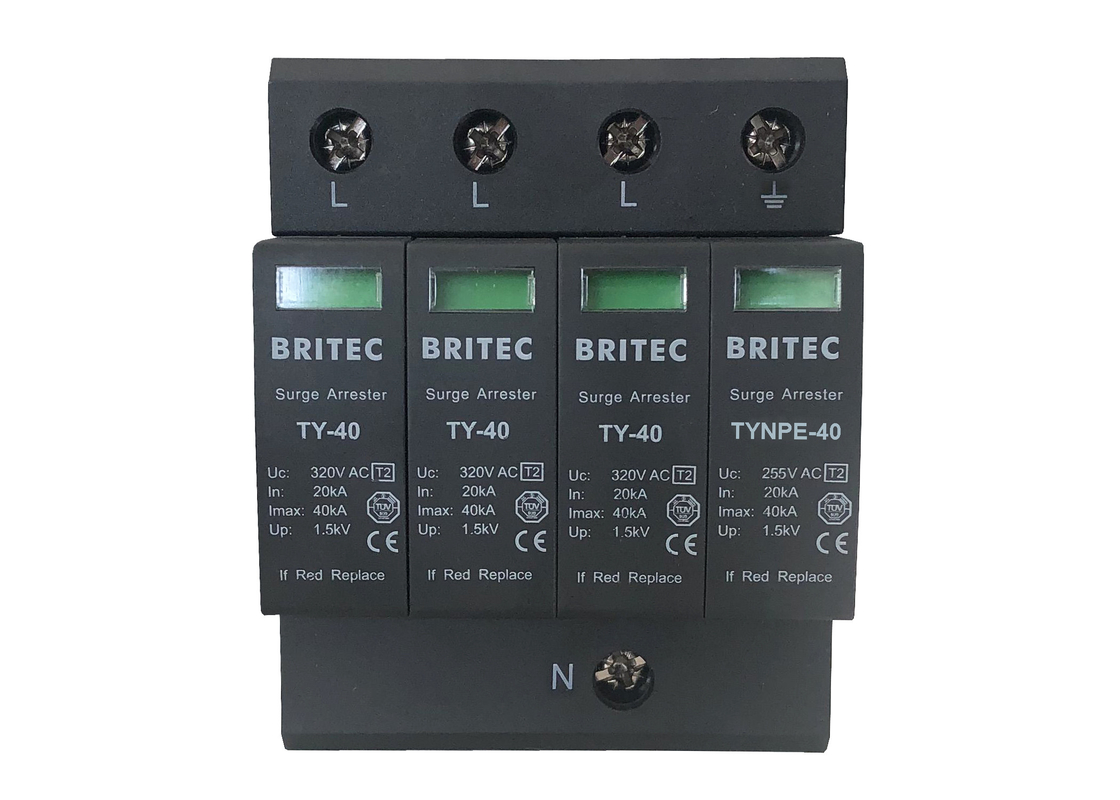

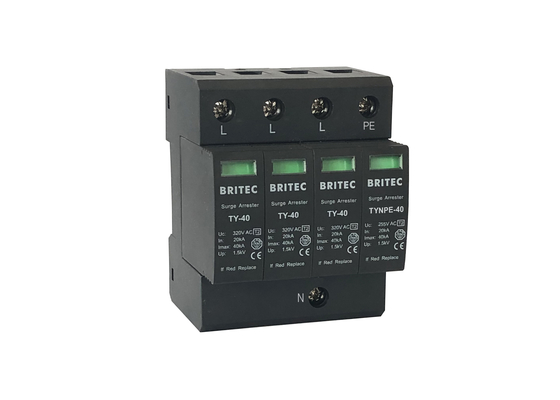

Name: Class C Three Phase Type 2 Surge Arrester AC SPD Surge Protection Device
Brand: Britec Electric Co., Ltd.
SKU: TY-40 3P+NPE
Price: Negotiable USD
Availability: InStock

Home Products Type 2 Surge Protection Device

Class C Three Phase Type 2 Surge Arrester AC SPD Surge Protection Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	TY-40 3P+NPE

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Item:	AC Surge Protection Device
Uc:	150V / 275V / 320V / 385V / 440V	In:	20kA
Imax:	40kA	Uc(N-PE):	255V
TA:	≤25ns	TA(N-PE):	≤25ns
Tu:	-40℃...+80℃	Mounting Support:	35mm Din Rail
Highlight:	Three Phase type 2 surge arrester , Class C type 2 surge arrester , 255V three phase surge arrester

Three Phase AC Surge Protection Device Class 2 Lightning Arrester 40kA Surge Protector Type-II SPD

Three Phase AC Surge Protection Device Class 2 Lightning Arrester Details:

• 40kA 320V Type 2 Class C AC Surge Protection Device, Surge Arrester, AC SPD, Surge Arrester for 3 Phase Supply.

• For using in the lightning protection zones concept at boundary 1-2.

• Surge voltage arrester combination 4-channel (in the 3+1 circuit), for mounting on 35 DIN rail, voltage 230 V AC.

• The core parts are metal oxide varistor components with high discharge capacity.

• Also available in different voltage range

Three Phase AC Surge Protection Device Class 2 Lightning Arrester Product Details:

	TY150 40 3P+NPE	TY275 40 3P+NPE	TY320 40 3P+NPE	TY385 40 3P+NPE	TY440 40 3P+NPE
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Max. continuous operating a.c. voltage[N -PE] Uc	255V	255V	255V	255V	255V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Voltage protection level [N-PE] Up	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV
Follow current extinguishing capability[ N-PE]a.c.Ifi	100Arms	100Arms	100Arms	100Arms	100Arms
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Response time [N-PE] tA	≤100ns	≤100ns	≤100ns	≤100ns	≤100ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

Technology characteristic:

Class C Three Phase Type 2 Surge Arrester AC SPD Surge Protection Device 0

Three Phase AC Surge Protection Device Class 2 Lightning Arrester Features:

• Type 2 Surge arrester.

• Three phase systems.

• Leakage current is small

• Surge arrester suitable for 230V/400 system/ applications

• The response time is fast

• Visual indication of Varistor status - Healthy/Replace.

• The residual pressure is low

• Remote signaling contact of Varistor status

• If circumstances are uncertain and there is a risk of fire from an overload, the internal cut-off unit disconnects the arrestor from the mains if necessary.

• Replaceable modules.

• High arresting capacity

• Complies with EN 61643-11.

• The maintenance is simple

• 35 mm rail (EN 60715) mounting

Installation:

• The line of surge arresters includes a full range of compact protectors for installation on DIN rail

• When the fault indication window turns from green to red please replace the cartridge as soon as possible

• After the installation is complete, check that the protection unit is plug in place, close the automatic circuit breaker (fuse) switch, check the working status is normal.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Packing & Delivery:

Company Information:

Wenzhou Britec Electric Co., Ltd. founded in 2003, has been committed to the field of lightning protection, the company is located in Yueqing, Zhejiang. The company is committed to the development and application of lightning protection. The company has gathered a group of experienced industry elites and marketing management personnel. They have accumulated more than ten years of industry experience, mastered exquisite product development technology and practical application experience, and can provide targeted scientific industry solutions.

Class C Three Phase Type 2 Surge Arrester AC SPD Surge Protection Device 2

Certificate:

Class C Three Phase Type 2 Surge Arrester AC SPD Surge Protection Device 3

FAQ:

1 How long is your products warranty ?

A: The warranty period of our products is 2 years.

2 How about inspection?

A: We have the whole inspection system from raw material to end products.

3 What do you have for certificate?

A: Our products are passed through IEC61643-11 standarded.

4 What is payment terms?

A: T.T, Paypal is acceptable.

5 What is the service offered by company?

A: We have the professional enginer team which can design and develop the mold to arrive different customer nequirement. We also have the sales team to offer good service from pre-sale to after-sale.

6 How to become the agents for Britec?

A: It is OK! We will depend on the sales turn over and also do research on your market. If your have interest, let us discuss more !
