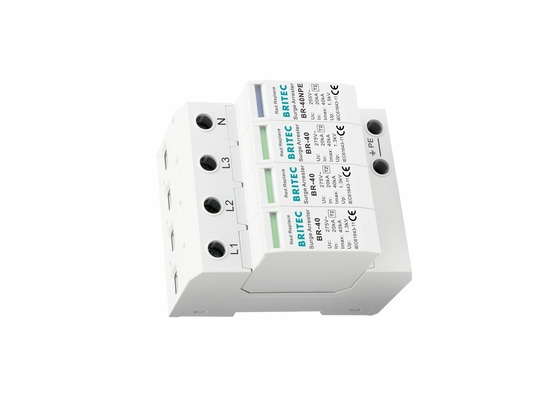

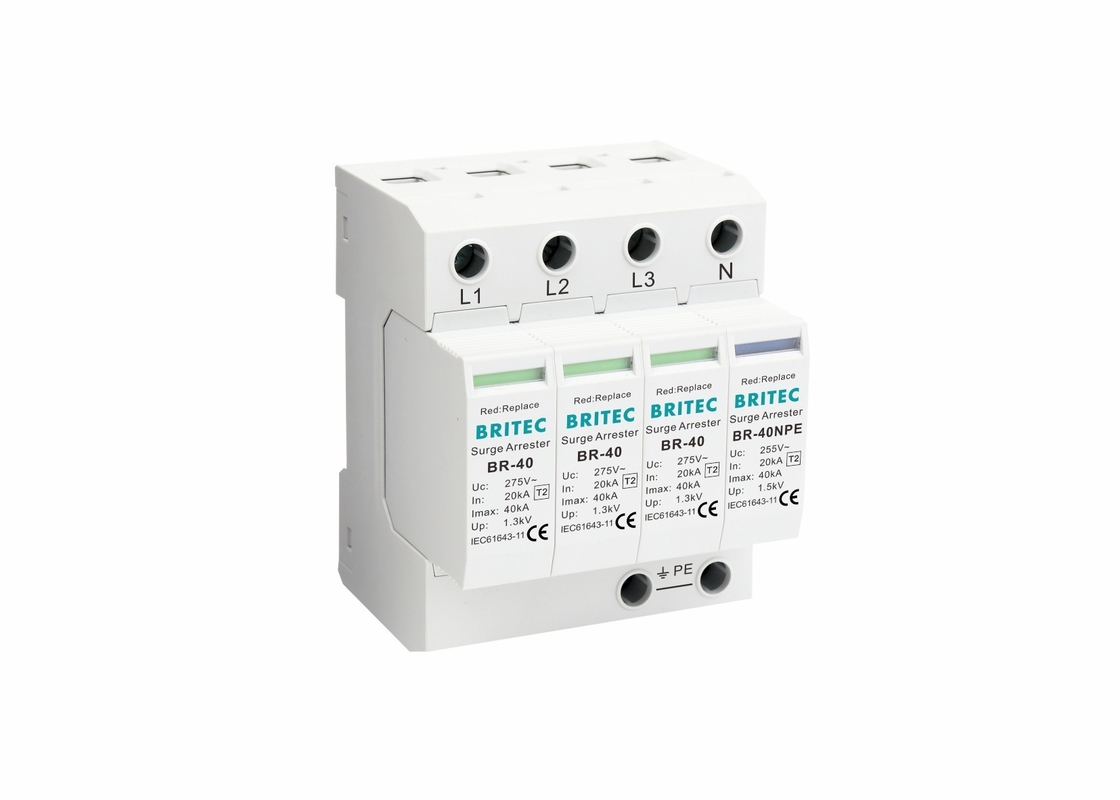

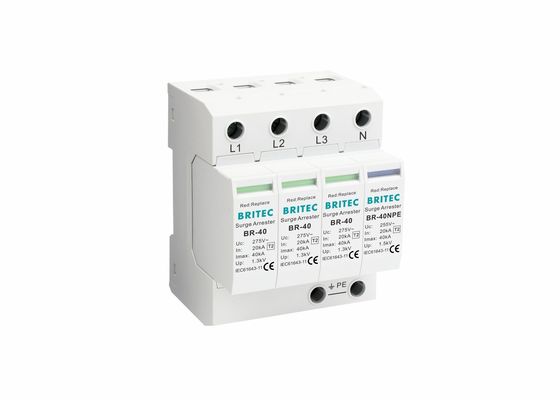

Name: 40kA Pluggable MOV SPD Type 2 Surge Protection Visual Status Display
Brand: Britec Electric Co., Ltd.
SKU: BR-40 3+1
Price: Negotiable USD
Availability: InStock

Home Products Surge Protection Device

40kA Pluggable MOV SPD Type 2 Surge Protection Visual Status Display

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE/TUV/CB
Model Number:	BR-40 3+1

Payment & Shipping Terms:

Minimum Order Quantity:	100 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Item:	AC Surge Protection Device
Uc:	150V / 275V / 320V / 385V / 440V	Uc(N-PE):	255V
Nominal Discharge Current:	20kA	Max. Discharge Current:	40kA
TA:	≤25ns	TA(N-PE):	≤25ns
Tu:	-40℃...+80℃	Transport:	By Air, By Sea Or Express
Highlight:	Pluggable type 2 surge protector , 20kA type 2 surge protector , Pluggable type 2 SPD

20-40kA Pluggable SPD Type 2 Surge Protective Device MOV Lightning Protective AC Surge Protection

20-40kA Pluggable SPD Type 2 Surge Protective Device Product Description:

• BR-40 3+1 surge protective device (SPD) is suitable for TN-S and TT etc. power supply system of AC 50/60Hz.

• The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current

• It's designed according to IEC61643-1 GB18802.1

• Available with optional remote signalling

• It adopts 35mm standard rail, there is a failure release mounted on the module of surge protective device.

• Visual status display

• When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric device separate from the power system and give the indication signal, green means normal, red means abnormal.

20-40kA Pluggable SPD Type 2 Surge Protective Device Product Details:

	BR-40 150 3P+NPE	BR-40 275 3P+NPE	BR-40 320 3P+NPE	BR-40 385 3P+NPE	BR-40 440 3P+NPE
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Max. continuous operating a.c. voltage[N -PE] Uc	255V	255V	255V	255V	255V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.3kV	≤1.5kV
Voltage protection level [N-PE] Up	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV
Follow current extinguishing capability[ N-PE]a.c.Ifi	100Arms	100Arms	100Arms	100Arms	100Arms
Max. backup fuse	100A gG	100A gG	100A gG	100A gG	100A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Response time [N-PE] tA	≤100ns	≤100ns	≤100ns	≤100ns	≤100ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

Technology characteristic:

40kA Pluggable MOV SPD Type 2 Surge Protection Visual Status Display 0

20-40kA Pluggable SPD Type 2 Surge Protective Device Features:

• Inside over-current and over-heat protection, temperature control open circuit.

• Simple standard din rail mounting

• Module design, convenient installation, could be replaced online.

• Labelled connections

• Smallness leak current, response quickly, less residual voltage.

• Usable in systems with lightning protection class 2

• Signal indication device, green (normal), red (abnormal).

• DIN Rail AC Surge Protective Devices are connected in parallel and use an MOV to clamp high-voltage surges.

• New technology, highly energy, clearance discharge pole (N-PE)

20-40kA Pluggable SPD Type 2 Surge Protective Device Application Scope and Installation Position:

BR-40 series surge protective device applied in C grade surge protection, installed on the joint of LPZ1 and LPZ2, usually installed in household distribution boards, computer equipment, information equipment, electronic equipment and in the socket box in front of control equipment or near the control equipment.
