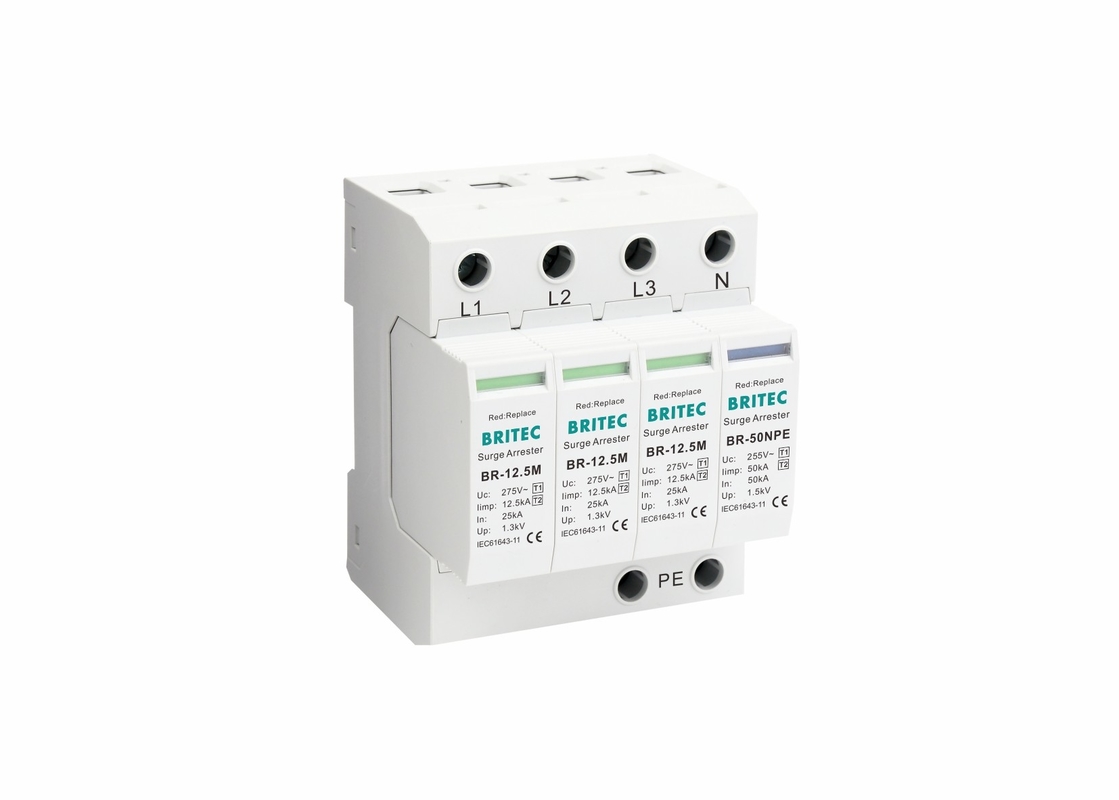

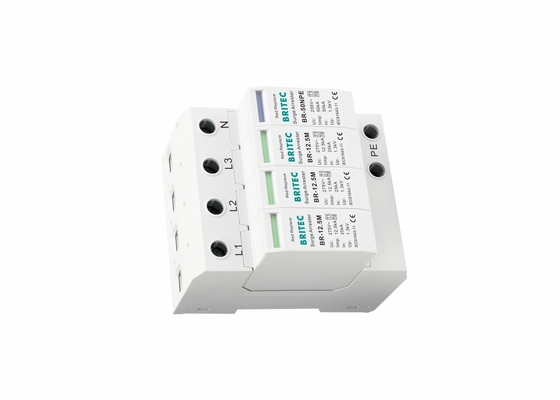

Name: 12.5kA Class B + C Three Phase IEC Standards Lightning Protection Surge Protector
Brand: Britec Electric Co., Ltd.
SKU: BR-12.5M 3+1
Price: Negotiable USD
Availability: InStock

Home Products Surge Protection Device

12.5kA Class B + C Three Phase IEC Standards Lightning Protection Surge Protector

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-12.5M 3+1

Payment & Shipping Terms:

Minimum Order Quantity:	100 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Item Name::	SPDs	Classification:	Type 1+2
Class:	B+C	Pole Number::	3P+NPE
Rated Voltage:	230V	Uc:	150V/275V/320V
Iimp:	12.5kA	Standard::	IEC61643-11 / EN 61643-11
Size:	Small	Installation:	Parallel Arrester
Highlight:	12.5kA Lightning surge protector , IEC Standards Lightning surge protector , 12.5kA lightning surge protection device

12.5kA New Class B+C Lightning surge protector Three Phase IEC Standards SPD

12.5kA New Class B+C Lightning surge protector Main Characteristic:

• Three phases type 1+2 surge suppressor for TT and TN-S system protection.

• Class B+C surge protection devices offer solution with combined performance over 8/20 µs and 10/350 µs waveform to withstand against lightning and switching surges.

• Double thermal disconnection device, providing higher protection.

12.5kA New Class B+C Lightning surge protector Parameter:

	BR-12.5M-275 3+1
SPD classification according to EN 61643-11	Type 1 + Type 2
SPD classification according to IEC 61643-11	Class I + Class II
Max. continuous operating a.c. voltage Uc	275V/255V
Lightning impluse current (10/350us) Iimp	12.5kA/50kA
Nominal discharge current (8/20us) (L-N / N-PE) In	25kA / 50kA
Max. discharge current (8/20us) (L-N / N-PE) Imax	60kA / 100kA
Voltage protection level (L-N / N-PE) Up	≤1.3kV / ≤1.5kV
Voltage protection level 5kA (L-N / N-PE) Up	≤1.0kV / ≤1.5kV
Max. backup fuse	125A gG
Response time (L-N / N-PE) tA	≤25ns / ≤100ns
Operating temperature range Tu	-40℃—80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Protection degree	IP20
Enclosure material	Thermoplastic UL94-V0

Technology characteristic:
12.5kA Class B + C Three Phase IEC Standards Lightning Protection Surge Protector 0

12.5kA New Class B+C Lightning surge protector Installation instructions:

• When installed according to the installation diagram shows the connection, where l (L1, L2, L3) for the line, n is neutral, PE ground wire, do not mistake. After the installation is complete, check that the protection unit is plugging in place, close the automatic circuit breaker (fuse) switch, check the working status is normal.

• Protector in use during the fault display window should periodically verify and view state when red fault display window or remote Terminal outputs alarm signals, the protector fails, should be repaired or replaced in a timely manner.

Certification:

Shipping:

About us:

Wenzhou Britec Electric Co., Ltd. has been committed to low voltage surge arrester products’ designing, R&D, manufacturing and marketing for 21 years. Britec factory locates in Wenzhou, Zhejiang, China. We own well-trained workers, rich experience production and R&D engineers. With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as CE, CB, TUV. Our team can develop and test new products to meet variable markets’ tailored demands. Britec branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 50+ countries and districts.

12.5kA Class B + C Three Phase IEC Standards Lightning Protection Surge Protector 3

FAQ:

Q1: We have our own design, do you offer OEM & ODM servies?
A: Yes, please share with us your detailed requirements and drawing.

Q2: How about the MOQ requirement for surge protection?
A: 100pcs.

Q3: If sample fee can be free or refundable?
A: Sample fee (wihin USD150) can be refunded after receiving firm order.
