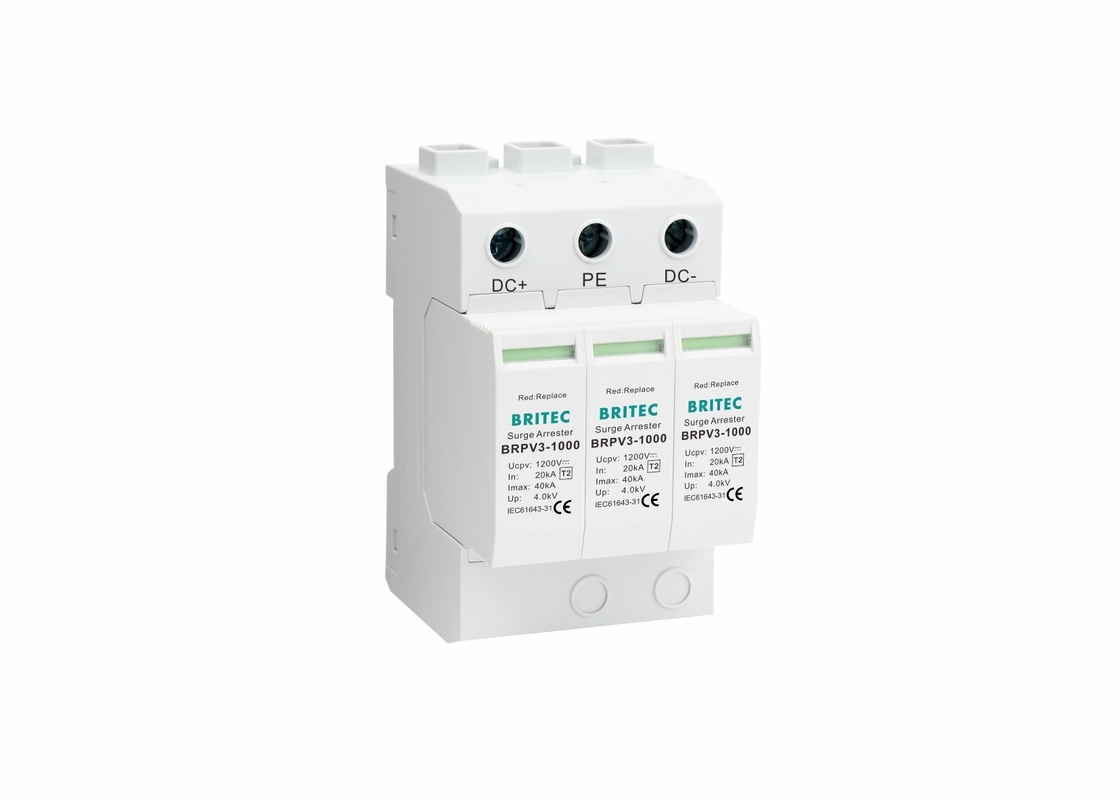

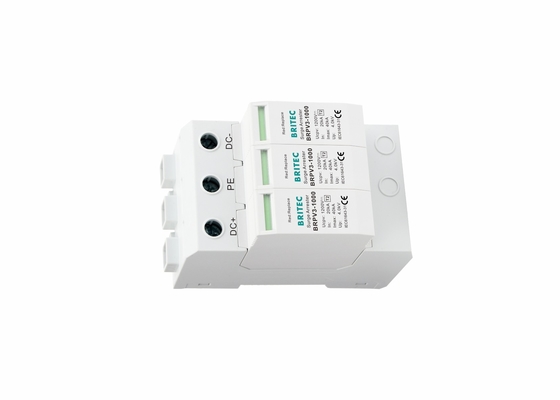

Name: 1000VDC 3P Solar Photovoltaic Surge Protection PV System SPD 35mm Din Rail Mounting
Brand: Britec Electric Co., Ltd.
SKU: BRPV3-1000
Price: Negotiable USD
Availability: InStock

Home Products Surge Protection Device

1000VDC 3P Solar Photovoltaic Surge Protection PV System SPD 35mm Din Rail Mounting

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE/TUV/CB
Model Number:	BRPV3-1000

Payment & Shipping Terms:

Minimum Order Quantity:	100 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Product Name:	Surge Protection Device	Standard:	EN61643-31 / IEC61643-31
Material:	Thermoplastic UL94-V0	Max Voltage:	1200VDC
In:	20kA	Max Discharge Current(Ka):	40kA
Protection Level(20ka,8/20µs):	No More Than 4.0kv	Remote Signaling:	Optional
Degree Of Protection:	IP20	Mounting On:	35mm Din Rail
Highlight:	1000VDC pv surge protector , 1000VDC pv surge arrester , 3P pv surge arrester

PV 1000VDC Surge Protection Device 3P Surge Arrestor for Solar Photovoltaic System

DC Surge protection device to protect your PV installation:

• Rated voltage: 1000 V DC

• Consisting of a base part and plug-in protection modules

• Maximum discharge current: 40KA

• Combined disconnection and short-circuiting device with safe electrical isolation in the protection module prevents fire damage resulting from d.c. switching arcs

• High Energy Varistor

• Safe replacement of protection modules without arc formation.

• High effective for lightning protection

PV 1000VDC Surge Protection Device 3P Surge Arrestor Parameters:

	BRPV3-1000
SPD classification according to EN61643-31	Type 2
SPD classification according to IEC61643-31	Class II
Max. continuous operating dc voltage Ucpv	1200V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤4.0kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20
Order Code	B18010
Order code(With remote signal)	B18012

Technology characteristic:
1000VDC 3P Solar Photovoltaic Surge Protection PV System SPD 35mm Din Rail Mounting 0

PV 1000VDC Surge Protection Device 3P Surge Arrestor Applications:

• PV combiner box

• DC power system

• DC distribution box

• DC switchboard
