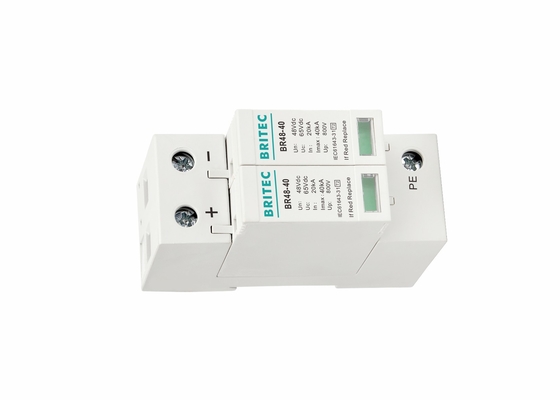

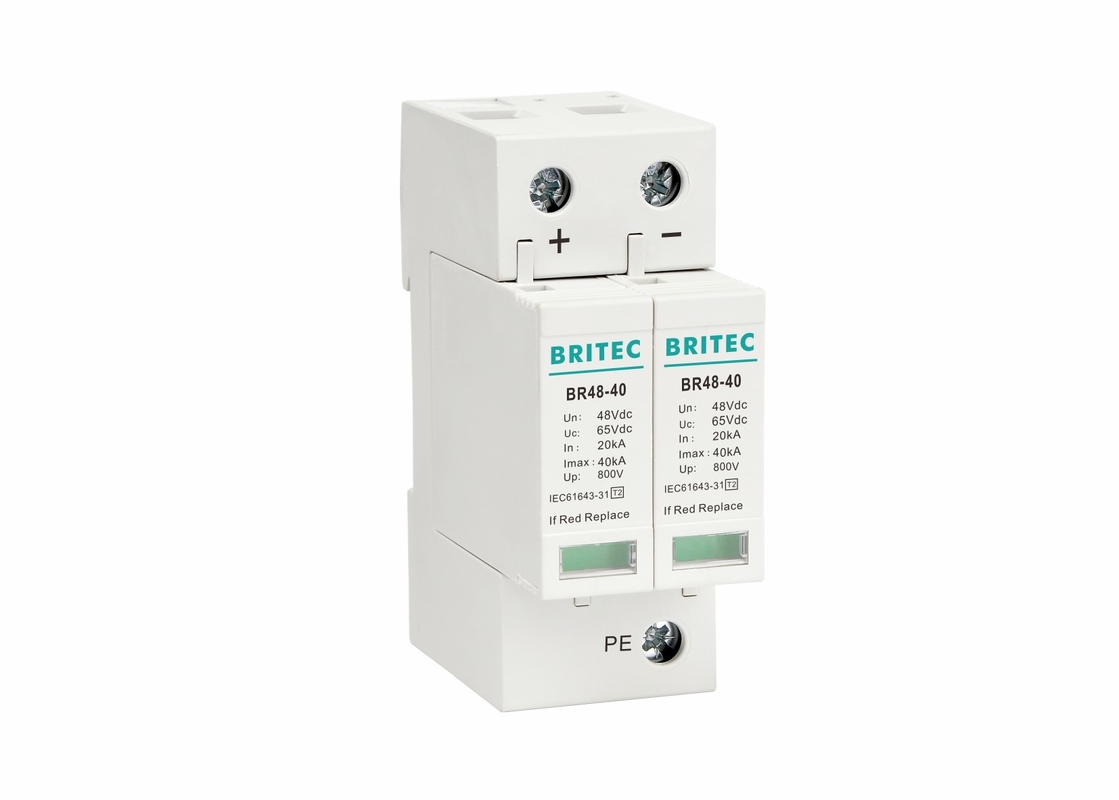

DC 48V 40kA SPD 2P Surge arrester Surge Protector

DC 48V 40kA SPD 2P Surge arrester Surge Protector

  • DC 48V 40kA SPD 2P Surge arrester Surge Protector
  • DC 48V 40kA SPD 2P Surge arrester Surge Protector
DC 48V 40kA SPD 2P Surge arrester Surge Protector
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR48-40
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Type: DC Surge Protection Item Name: DC Surge Protector
Standard: IEC61643-31 Un: 48V DC
Uc: 65V DC Nominal Discharge Current In: 20kA
Pole Number: 2P Tu: -40℃-80℃
Material: Thermoplastic UL94-V0 Protective Class: IP20
Highlight:

SPD 2P surgearrest surge protector

,

DC 48V surgearrest surge protector

,

UL Certified short surge protector

DC 48V Surge Protection 40kA SPD 2P Surge Protector UL Certified Power Surge Protective Device​



DC 48V Surge Protection 40kA SPD 2P Surge Protector Application:

It is mainly applicable for the Direct Current surge protection and over voltage protection in the fields of low voltage DC power supply.
It is installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.



DC 48V Surge Protection 40kA SPD 2P Surge Protector Product detail:



2 Mod BR48-40
SPD classification according to IEC61643-31 Class II
Operating Voltage                                                  Un 48V DC
Max. Continuous Operating Voltage                       Uc 65V DC
Nominal discharge current (8/20us)                         In 20kA
Max. discharge current (8/20us)                         Imax 40kA
Suggest Fuse 63A
Technology MOV
Response time                                                        tA ≤25ns
Operating temperature range                                 Tu -40℃-80℃
Operating state / fault indication green / red
Protection Mode +/PE,-/PE
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20
Remote Signalling                  with remote signalling contact



Dimension:



DC 48V 40kA SPD 2P Surge arrester Surge Protector 0



DC 48V Surge Protection 40kA SPD 2P Surge Protector Features:

a. Module design, convenient installation, with easy electric maintains operation
b. Built-in over current and over heat, temperature control open circuit technology
c. Small creepage current, fast response time, remnant low voltage
d. With remote connection, can realize remote control

DC 48V Surge Protection 40kA SPD 2P Surge Protector Installation:

• When installed, in and out terminal of SPD will be corresponding connected with"+","-"pole of the DC power; " PE " is connected with grounding line;Connection way is by screwing tightly.
• After installation finished, check the wires if correct, switch on, then the SPD can be put into use.



Certifications:



DC 48V 40kA SPD 2P Surge arrester Surge Protector 1



Company profile:



Wenzhou Britec Electric Co., Ltd. is a professional SPD manufacturer, located in Yueqing, Zhejiang, China, Britec is the specialized manufacturer of low voltage surge protection device. With the advanced facility and technology, we make the first-grade products for our customs. At present, Britec has export and import rights, and our products has been sold to more than 50 countries in the world.



DC 48V 40kA SPD 2P Surge arrester Surge Protector 2



Workshop:



DC 48V 40kA SPD 2P Surge arrester Surge Protector 3



Test:



DC 48V 40kA SPD 2P Surge arrester Surge Protector 4



Shipping:



DC 48V 40kA SPD 2P Surge arrester Surge Protector 5



FAQ:



Q1: Can you make new mold if needed?
  A: Yes we are open to new models. Our technician is very experienced. Please talk to our sales team for details.



Q2: How do I request for a quotation?
  A: You can send us messages directly. Usually we will get back to you within 24 hours. If you prefer to contact us via email. Please send us a message with your email address, we will get back to you ASAP.



Q3: Do you accept small order quantity?
  A: We are SORRY but in general we do not accept orders below the Minimum Order Quantity since our company applies low inventory policy. However, please do not hesitate to ask in case we happen to be manufacturing what you need. We can simply add your order along with it if you do not need any customization.



Q4: Do you provide free samples for quality check before placing the order?
  A: We charge sample fees accordingly but the expense is always RETURNABLE as long as you place the order. In general, We will prepare and send the samples within 7-10 days with tracking numbers.



Q5: How do you control the quality of your products?
  A: We have quality inspectors to walk around and inspect to ensure the quality of the products from the very beginning to the very end of the production process.
