| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS |
| Model Number: | BR-12.5M 3P |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | 50kA Surge Protective Device | Model Numbers: | BR-12.5M 3P |
|---|---|---|---|
| Suitable For: | To Protect The Systems Against The Transient Overvoltage (lightning) | EN Type: | T1 |
| Configuration: | 3p | Place Of Origin: | Zhejiang |
| MOQ: | 5PCS | ||
| Highlight: | 12.5kA type 1 surge arrester,3p type 1 surge arrester,12.5kA type 1 surge protector |
||

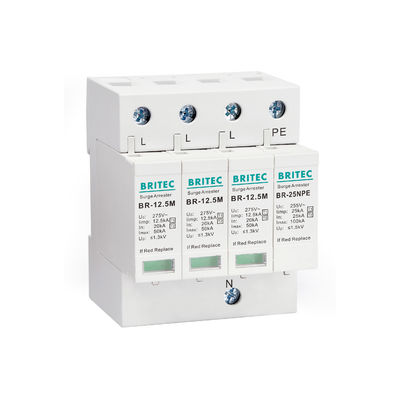

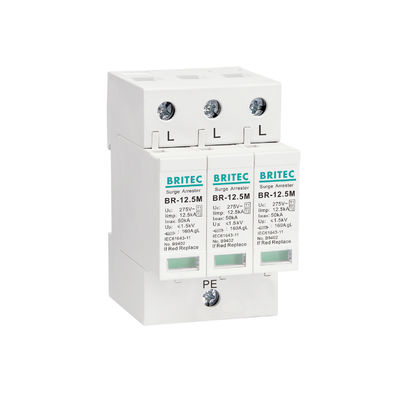

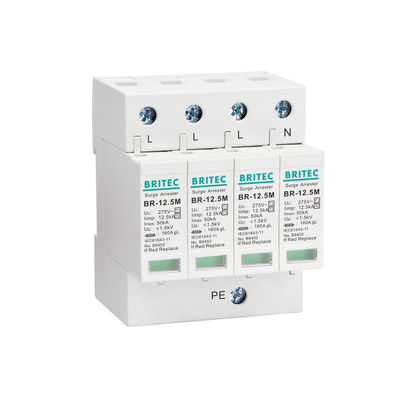

3p 12.5kA type1 surge arrester 50kA Surge Protective Device lightning arrester
T1 surge arrester Features:
1. Indicator window is obvious (green is OK, red indicates failure)
2. Fully enclosed terminal
3. The shell is made of PC flame retardant material, fire insulation
4. Replaceable module
Benefits
Easy installation
DIN rail mounting
Max nominal discharge phase 50 kA
Excellent protection for electrical panel
T1 surge arrester Technology characteristic:
| BR-12.5M 3P | |
| Max. continuous operating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350us) Iimp | 12.5kA |
| Nominal discharge current (8/20us) In | 20kA |
| Maximum discharge current (8/20us) Imax | 50kA |
| Voltage protection level Up | ≤1.3kV |
| Response time tA | ≤25ns |
| Max. backup fuse | 160A |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Test standards |
IEC 61643-11, EN 61643-11 |
3p surge arrester Dimension:
3p surge arrester Application:
Application-optimized and prewired combined lightning current.
Particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (e.g.: buildings equipped with lightning rods).
CB, CE, TUV,RoHS Certificate:
Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
