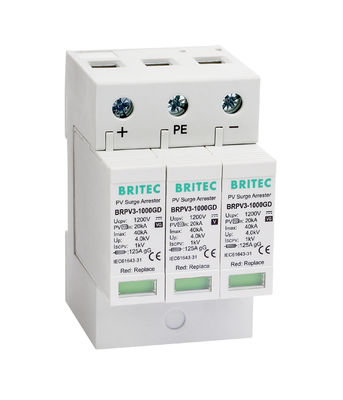

Name: BRPV3-1000GD GDT 1000V Solar Dc Spd PV surge protection device
Brand: Britec Electric Co., Ltd.
SKU: BRPV3-1000GD
Price: Negotiable USD
Availability: InStock

Home Products DC Surge Protection Device

BRPV3-1000GD GDT 1000V Solar Dc Spd PV surge protection device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/UL/CB/CE/ROHS/ISO9001
Model Number:	BRPV3-1000GD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-20 days after payment
Supply Ability:	10000 per week

Contact Now

Detailed Product Description

Item:	GDT 1000V Solar Surge Protector	Certificate:	CE,CB,IEC
Enclosure Material:	Thermoplastic	Mounting Type:	DIN Rail: 35 Mm
Packaging Details:	Standard Export Box Package	Usage:	Solar Power
MOQ:	2 Pc	Warranty:	3 Years
Highlight:	1000V solar dc spd , Thermoplastic Enclosure solar dc spd , DC1000V solar surge protection device

GDT 1000V Solar SPD BRPV3-1000GD DC surge protection device surge protector

GDT 1000V Solar SPD Feature:

Type 2 / Class II PV Lightning protection.

Configurations to support 600V DC operating voltages.

Max. discharge current with 8/20 waveform: 40kA per phase.

Conform to IEC61643-31 and EN50539.

Design with pluggable modules.

Status indication.

High discharge capacity via zinc oxide varistors and gas dischargers.

Compact equipment for photovoltaic installations.

GDT 1000V Solar SPD Product Details:

	BRPV3 1000 GD
SPD classification according to EN61643-31	Type 2
SPD classification according to EN50539-11	Class II
Max. continuous operating dc voltage Ucpv	1000V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤4.0kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20

GDT 600V Solar SPD Dimension:

BRPV3-1000GD GDT 1000V Solar Dc Spd PV surge protection device 1

GDT 1000V Solar SPD Advantage:

● For equipotential bonding of positive and negative busbars of photovoltaic systems and elimination of transient

overvoltage that originates during the atmospheric discharges or switching processes.

● For Photovoltaic protection against surges at the boundaries from lightning protection.

Our Services:

• 20 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Why need surge arrester?

Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility. The use of adapted surge protections is then highly recommended.

Installation instruction:

• Mount the SPD on 35 mm DIN rail.

• The SPD is placed in parallel between the energized conductors and ground.

• The selected SPD must be specifically designed, rated and approved for application on dc PV voltages.

Company profile:

Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
BRPV3-1000GD GDT 1000V Solar Dc Spd PV surge protection device 2

Our certificate:
We got CB, CE, TUV,RoHS Certificate:

Payment:

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment.
		FOB
		CIF	30% T/T in advance, paid the balance against copy of B/L.
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight.
	Paypal	Amount lower than 5000usd.
Delivery Time	15-30 days after receiving deposit.

BRPV3-1000GD GDT 1000V Solar Dc Spd PV surge protection device 5

Factory:

FAQ:

Q1: How long is your products warranty?
A: The warranty period of our products is 5 Years.

Q2: How about inspection?
A: We have the whole inspection system from raw material to end products.

Q3: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
