| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE/CB/TUV |
| Model Number: | BR-40 4P |
| Minimum Order Quantity: | 100 piece / pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pieces per month |
| Item: | Surge Protector | Test Standards: | IEC 61643-11 / EN61643-11 |
|---|---|---|---|
| Classified Test: | Class II | Voltage Rating: | 150V / 275V / 320V / 385V / 440V |
| In: | 20kA | Imax: | 40kA |
| Pole: | 4P | Mounting On: | 35mm Din Rail |
| Highlight: | 4P SPD AC Surge Protector,320V AC Surge Protector,4P SPD Surge arrester |
||

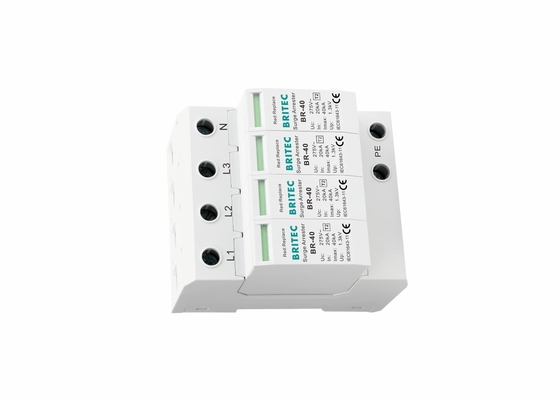

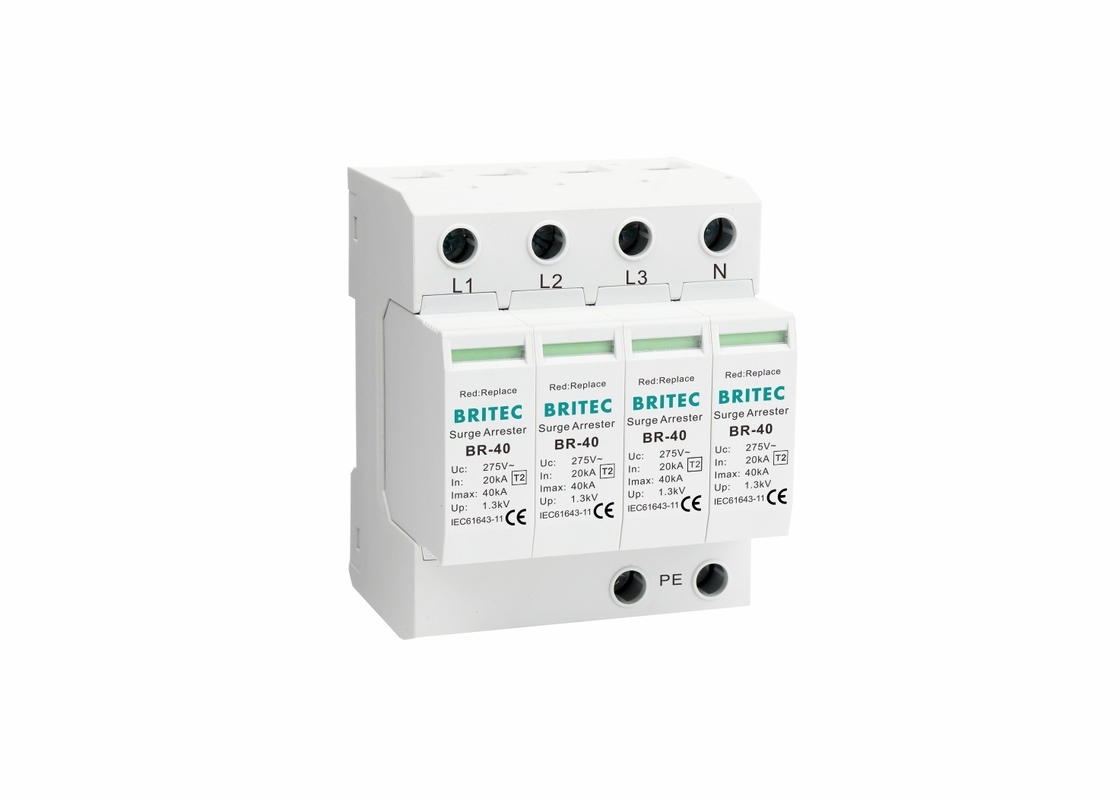

20ka-40ka AC Surge Protector Lightning Protection Class II Surge Arrester 4P SPD
20ka-40ka AC Surge Protector Lightning Protection Product Details:
| BR-40 150 4P | BR-40 275 4P | BR-40 320 4P | BR-40 385 4P | BR-40 440 4P | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V | 440V |
| Nominal discharge current (8/20us) In | 20kA | 20kA | 20kA | 20kA | 20kA |
| Max. discharge current(8/20μs) Imax | 40kA | 40kA | 40kA | 40kA | 40kA |
| Voltage protection level Up | ≤0.8kV | ≤1.3kV | ≤1.5kV | ≤1.8kV | ≤2.0kV |
| Voltage protection level 5kA Up | ≤0.6kV | ≤1kV | ≤1.2kV | ≤1.4kV | ≤1.6kV |
| Max. backup fuse | 125A gG | 125A gG | 125A gG | 125A gG | 125A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail | ||||
| Enclosure material | Thermoplastic UL94-V0 | ||||
| Degree of protection | IP20 | IP20 | IP20 | IP20 | IP20 |
Dimension:
Shipping:
Workshop:
FAQ:
Q1: What is the MOQ of each item?
A: Usually the MOQ is 100 pcs. If this product we have in stock, there is no limitation for MOQ.
Q2: Do you have any guarantee for products?
A: Yes, sure. All the product have two years guarantee. Any problem feel free to contact us.
Q3: Are you a factory or a trading company?
A: We are a factory with trading lines. We have in SPD field for more than 21 yeas. We have full experience of producing surge protection.
Q4: How to control the quality?
A: Each New product must be test before shipment. Our production line full with professional skills and strict stardars.
Q5: How long does it take to delivery?
A: If have stock, within one week we can finished all the delivery. If no have stock, normally around 3 weeks. It is depends on order's quantity.
