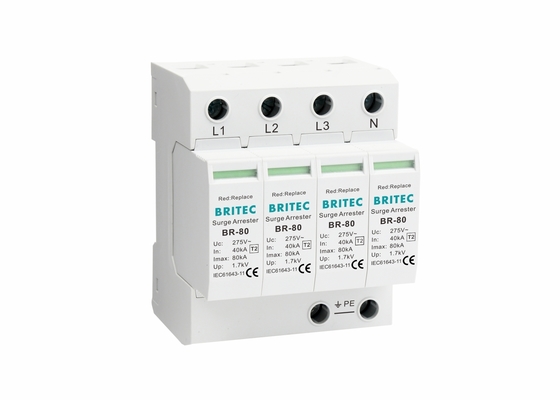

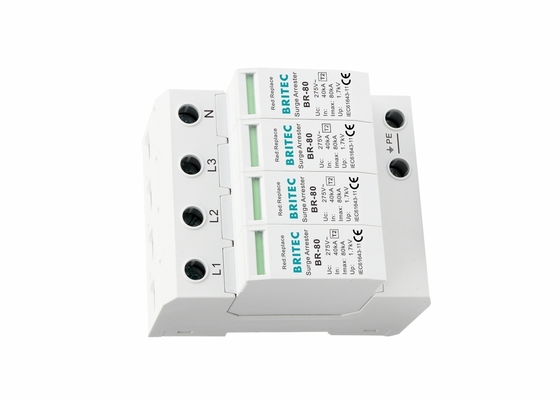

Name: 70kA Type 2 Surge Protection Device ， BRITEC 4P Surge Protector
Brand: Britec Electric Co., Ltd.
SKU: BR-70 4P
Price: Negotiable USD
Availability: InStock

Home Products Type 2 Surge Protection Device

70kA Type 2 Surge Protection Device ， BRITEC 4P Surge Protector

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-70 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Uc:	150V / 275V / 320V / 385V
In:	40kA	Imax:	70kA
Material:	Thermal Plastic UL94-V0	TA:	≤25ns
Up:	0.5kV/0.9kV/1.1kV/1.3kV	Type:	4P
Class:	Type 2	Item:	Surge Protection Device
Highlight:	70kA 4P Surge Protector , UL94-V0 Type 2 Surge Protection Device , UL94-V0 4P Surge Protector

Type 2 70kA Surge Protection Device BRITEC 4P Surge Protector SPD Surge Protective Device (BR-70 4P)

Type 2 70kA Surge Protection Device BRITEC 4P Surge Protector Feature:

• Surge protection devices (SPDs) are suitable for the TN-S power supply system of 50/60Hz.

• For installation at LPZ 1-2, protecting low voltage equipment from surge damages.

• Protecting them from indirect lightning impulse and other transient overvoltage.

• Three-phase protection

• With max. discharge current of 70kA.

• Pluggable module, easy for installation and maintenance

• The SPD is designed in accordance with IEC Class II.

• High discharge capacity, quick response

• Reliable performance and low price.

Type 2 70kA Surge Protection Device BRITEC 4P Surge Protector Product Details:

	BR150 70 4P	BR275 70 4P	BR320 70 4P	BR385 70 4P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V
Nominal discharge current (8/20us) In	40kA	40kA	40kA	40kA
Max. discharge current(8/20μs) Imax	70kA	70kA	70kA	70kA
Voltage protection level Up	≤1.0kV	≤1.7kV	≤2.0kV	≤2.3kV
Voltage protection level 5kA Up	≤0.5kV	≤0.9kV	≤1.1kV	≤1.3kV
Max. backup fuse	200A gG	200A gG	200A gG	200A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20
Order Code	B8260	B8262	B8264	B8266
Order Code (With remote signaling)	B8261	B8263	B8265	B8267

Dimension:

70kA Type 2 Surge Protection Device ， BRITEC 4P Surge Protector 0

What is a surge protection device?

The surge protection device (SPD) is an electronic device that provides a protection for electrical equipment, communication network etc. from the effect of surges. When a current spike or voltage surge suddenly occurs in an electrical circuit or a communication line due to external interference, the SPD can conduct the shunt in a very short time, thereby avoiding the damage of the surge to other equipment in the circuit.

Surge protective devices are designed to minimize the effects of the indirect and direct lightning or other transient overvoltage surges, suitable for surge protection in residential, tertiary industrial and other industrial applications. SPD has several protection modes: L-L, L-G, L-N, N-G and its combinations.

The SPD surge protector is an indispensable device for lightning protection in the electronic equipment. Its role is to restrict the transient overvoltage that enters the power line and signal transmission line to the voltage range that the device or system can withstand, or to discharge powerful lightning current into the ground, thus to protect the equipment or systems from shocks.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

Company information:

Our company has been in surge protector manufacture and export more than 17years with good quality and nice price, CE certificate has gained. OEM servie is welcomed. We're happy to service each customer the best in the future.

70kA Type 2 Surge Protection Device ， BRITEC 4P Surge Protector 1

Our workshop:

Our certificate:

FAQ:

Q1. Your company is a manufacturer or a trade company?
A: We are a manufacturer in the design and processing of all types of surge arrester products.

Q2. Which payment can offer?
A: We accept 30% payment in advance, the balance payment before shipping. We can accept the payment by T/T, Paypal and others.

Q3. Your shipment?
A: By Express: DHL, FEDEX, UPS, TNT and EMS etc. By Air: We can ship from Ningbo, Shanghai. By Sea: We can offer you FOB Ningbo, FOB Shanghai. We also can send to your forwarder or agent in China, who can arrange shipment for you.
