Name: 20kA 6kv LED Driver SPD Surge Protection Device AC 275V Type 2+3
Brand: Britec Electric Co., Ltd.
SKU: BR-LED-20RL/INS/NG
Price: Negotiable USD
Availability: InStock

Home Products LED Surge Protection Device

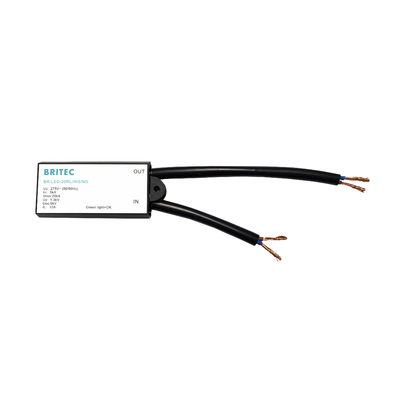

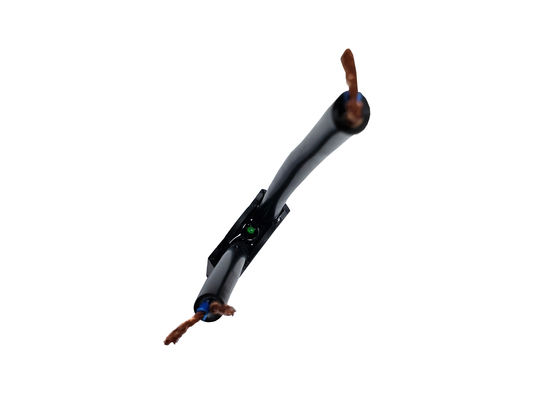

20kA 6kv LED Driver SPD Surge Protection Device AC 275V Type 2+3

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-LED-20RL/INS/NG

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Item Name::	LED Surge Protection	Type:	Type 2+3
Material::	Thermal Plastic UL94-V0	Un:	230V
Uc:	AC 275V	In:	5kA
Imax:	20kA	Up:	≤1.3kV
Business Type:	Manufacturer	Standard::	IEC61643-11 / EN 61643-11
Highlight:	LED Driver SPD Surge Protection Device , 20kA SPD Surge Protection Device , Led Module SPD Surge Protection Device

20kA 6kv LED Driver SPD Surge Protector Lighting Arrester SPD for LED Street Light

20kA 6kv LED Driver SPD Surge Protector Lighting Arrester SPD Product Description:

1. BR-LED series surge protective device is specially designed to be used in outdoor led lighting system fixtures for transient overvoltage protection.

2. New designed surge protection module for LED Street light.

3. Inside over-current and over-heat protection, temperature control open circuit.

4. With LED failure indicator.

5. Time of response <100ns

6. Imax 20kA lightning surge protection.

7. Surge Protector for Led Module

20kA 6kv LED Driver SPD Surge Protector Lighting Arrester SPD Product Details:

	BR-LED-20RL/INS/NG
SPD classification according to EN61643-11	Type 2+3
SPD classification according to IEC 61643-11	Class II+III
Nominal a.c. voltage Un	230V
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	5kA
Max. discharge current (8/20us) Imax	20kA
Nominal current IL	10A
Voltage protection level Up	≤1.3kV
Combined impulse Uoc	6kV
Response time tA	≤100ns
Operating temperature range Tu	-40℃—80℃
Operating state / fault indication	green/non
Section of cables	1.5mm²
Length of cables	110mm/150mm
Degree of protection	IP65

Dimension:

20kA 6kv LED Driver SPD Surge Protection Device AC 275V Type 2+3 0

20kA 6kv LED Driver SPD Surge Protector Lighting Arrester SPD Application:

Speciﬁcally for outdoor and commercial LED lighting applications, LED signage and traﬃc light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traﬃc lighting, ﬂood lighting, digital signage, street lightning, and tunnel lighting.

Why need LED surge protector?

LED lamp posts can be directly struck by lightning since they are usually in an exposed position. In some cases, this can affect entire streets, since the lights are interconnected within the power grid. If there are no suitable protective devices in place, the lightning current quickly can be dispersed across the entire installation and incur significant damage. Accordingly, suitable surge protection should be used as protection against damage from lightning or surge voltages.

Certifications:

Company information:

Wenzhou Britec Electric Co., Ltd., founded in 2003, is located in Yueqing city, Zhejiang, China. The enterpriseis dedicated in research and production of surge protection, which is always in with high-tech driven, customer requirement guided, professional, concentrate, supplying high quality, cost-efficient products. Now products are well-received in domestic and oversea market, product quality and after-sales service has got highly praise from customers.

20kA 6kv LED Driver SPD Surge Protection Device AC 275V Type 2+3 2

Workshop:

FAQ:

Q1. What Certificates Have You Got?
A1: Our company is verified by ISO9001, and products approved by CE, CB, TUV etc.

Q2. What is your terms of payment?
A2: T/T 30% as deposit, 70% before delivery.

Q3. What is your terms of delivery?
A3: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A4: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A5: Yes, we could produce by your samples or technical drawings. We are power in R&D.
