| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/UL/CB/CE/ROHS/ISO9001 |
| Model Number: | BR385-60 1P |
| Minimum Order Quantity: | 20 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protect Device | Color: | White |
|---|---|---|---|
| In(8/20μS): | 30kA | Package: | Carton Package |
| Type: | Type 2 | Standard: | IEC Standard |
| Supplier Type: | Original Manufacturer | In: | 30kA |
| Customized: | Yes | ||
| Highlight: | 60kA Surge Protection Device,Single Phase Type2 Surge Device,IEC Standard Surge Protection Device |
||

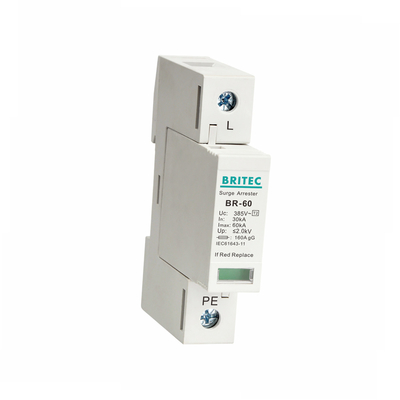

BRITEC SPD 60kA Type 2 Surge Protection Device surge protect Device
Application
Secondary level protection of the power supply system, applying in the floor distribution electrical systems, protect the secondary electrical equipment.
• Complete unit consisting of upper part and base, pre-mounted and ready for connection
• Plug-in upper part; upper part can be separated from base without tools
Product description
1. For installation at LPZ1 or higher, protecting low voltage equipment from surge damages.
2. Applied in modular SPD Class II (Class C) for TNS power supply system.
3. Designed according to IEC 61643-11.
BRITEC Type 2 Class C Surge Protection Parameters:
| Model Name | BR385-60 1P |
| Brand | BRITEC |
| Product Type | Surge Protection Device |
| SPD dassification according to EN61643-11 | Type 2 |
| SPD dassification according to IEC61643-11 | Class II |
| Max. Continuous Voltage Uc | 385V |
| Max. discharge current (8/20µs) Imax | 60kA |
| Norminal discharge current (8/20µs) In | 30kA |
| Voltage protection level Up | ≤2.0kV |
| Max. backup fuse | 160A gG |
| Response time tA | ≤25ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Manufacturer Guarantee | 2 Years Guarantee |
| No. of Phases | Single-Phase |
| Number of Poles | one pole |
| Operation temperature range | -40 ~ +80 degree |
| Remote control contacts | Optional |
Dimension:
BRITEC Type 2 Class C Surge Protection Application:
Protecting low-voltage consumers' installations against indirect lightning discharges
High performance varistor with thermal disconnection tripping device
Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
Protection class: Type 2,Class II

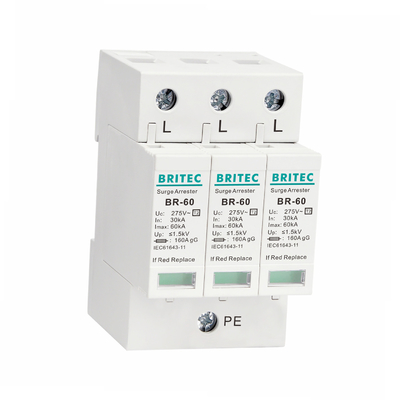

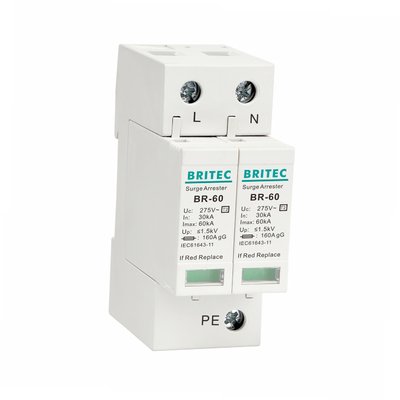

Pole number:1P,2P,3P,4P,1+1,3+1 optional
surge protectors are used to guard sensitive equipments from voltage spike
Company profile:
Wenzhou Britec Electronic Co., Ltd. is a professional engaged in SPD products research and development, design, production and service in the integration of modern professional surge protection production enterprises, production base is located in Yueqing, Zhejiang, China. With OEM/ODM high standard production workshop, has a new standard of high-end production equipment, perfect supporting factory layout is reasonable, the spacious production workshop, according to the international surge protector factory standard production design, is the domestic strong r & d manufacturers.
Our certificate:
Workroom:
FAQ:
Q1: What is the MOQ of each item?
A: Usually the MOQ is 1 pcs. If this product we have in stock, there is no limitation for MOQ.
Q2: Do you have any guarantee for products?
A: Yes, sure. All products have two years guarantee.
Q3: Are you a factory or a trading company?
A: We are a factory with trading lines. We have in SPD field for more than 17 yeas. We have full experience of producing surge protection device.
Q4: How to control the quality?
A: Each product must be test before shipment. Our production line full with professional skills and strict stardars.
Q5: How long does it take to delivery?
A: If have stock, within 1 week we can finished all the delivery. If no have stock, normally around 3 weeks, depends on order.
