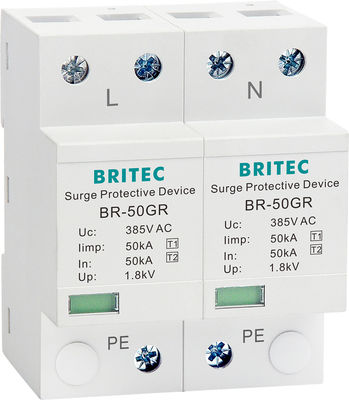

Name: BRITEC BR-50GR 275 2P Spd 50kA Type 1 Surge Protection Device Ac Din Rail Surge Arrester thunder protector
Brand: Britec Electric Co., Ltd.
SKU: BR-50GR 275 2P
Price: Negotiable USD
Availability: InStock

Home Products Type 1 Surge Protection Device

BRITEC BR-50GR 275 2P Spd 50kA Type 1 Surge Protection Device Ac Din Rail Surge Arrester thunder protector

Product Details:

Place of Origin:	China Zhejiang
Brand Name:	BRITEC
Certification:	TUV/CB/CE/ROHS/ISO9001
Model Number:	BR-50GR 275 2P

Payment & Shipping Terms:

Minimum Order Quantity:	10 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Thunder Protector	Type:	Ac Surge Protector
Place Of Origin:	Zhejiang, China	Imax:	160KA
Mounting:	DIN Rail 35 Mm.	Current Wave:	10/350 µs
Color:	White	Status Display:	Normal Or Fault Indicator
Technology:	Spark Gap Technology	Housing Material:	UL94V-0 Standard
Highlight:	Ac Din Rail Surge Arrester , Spd 50kA Type 1 Surge Arrester , DIN rail 35 mm Surge Arrester

50 kA Surge Protection Devices single surge protector type 1 SPD

Surge Protection Devices Features:

Product Feature:

surge protection, large current capacity, low residual voltage, fast response time, standard guide rail design, convenient installment, module deterioration indication, the thermal automatic release function, it can auto recovered after the faults remove, and do not affect the normal power supply.

Surge Protection Devices Technology characteristic:

Specification	BR-50GR 2P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1 + Type 2
SPD dassification according to IEC61643-11	Class I + Class II
Max continuous 0perating a.c. voltage Uc	275V
Lightning impulse current (10/350µs) limp	50kA
Norminal discharge current (8/20µs) In	50kA
Maximun discharge current (8/20µs) Imax	160kA
Voltage protection level Up	≤1.8V
Follow current extinguishing capability a.c. lifi	3kA rms
Max. backup fuse	500A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Payment term	30% deposit in advance,70% before shipment,100% T/T in advance
Certificate	CB/CE/ROHS/ISO9001
Logo	Customized logo available
Design ability	We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

Application:

• For protecting low-voltage consumer's installations against indirect lightning discharges.

• Protect electrical and electronic equipment against transients, originating from lightning, switching of

transformers, lighting, and motors.

Advantage:

• Unique designing, patent technology.

• High discharge capacity.

• Low residual voltage.

• DIN rail mountable and ease of installation.

• Quick thermal response self-protected design.

Our Services:

• 20 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Installation:

• Installed at the entrance point of the building, in the main distribution board of this installation.

• It should be used as part of lightning protection systems i.e. when lightning rods or meshed cages are

installed.

• Must install SPD strictly according to the wiring diagram provided.

• Better to under the guidance of professional electrician.

• Green tab, normal work status, Red tab, failure status, need to be replaced Rapidly.

Shipping:

Company information:

Britec Electric Wenzhou Co., Ltd. is located in the Yueqing city. Britec is dedicated to development,

manufacture, marketing and service of low voltage surge arrester products. The rapidly-developed

regional economy and friendly investment environment ensure Britec’s sustainable developments and

continuous innovations. It is professional in producing SPD.

FAQ:

Q1. Are you manufacturer or trading office?

A: We are manufacturer in Wenzhou, with the ability to export by ourselves.

Q2: Do you support OEM or ODM?

A: Yes, we support OEM & ODM.

Q3: How's your product markets?

A: Our products are welcomed among Europe, South America, Asia and certain countries in Africa, win

us a good reputation.

Q4. How’s your warranty?

A: All our products are 2-5 years warranted.
