| Place of Origin: | China Zhejiang |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BR-50GR 385 3P |
| Minimum Order Quantity: | 10 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protection Arrester | Type: | Surge Protection Arrester |
|---|---|---|---|
| Place Of Origin: | Zhejiang, China | Operating Temperature: | -40°C - 80°C |
| IP Degred: | IP20 | Condition: | 100% Original |
| Customized: | Yes | SPD According: | Type 1 |
| Up: | ≤ 1.8kV | Warranty: | 5 Years |
| Highlight: | Ac Surge Protection Arrester,50kA Type 1 Surge Protection Arrester,Spd Surge Protection Arrester |
||

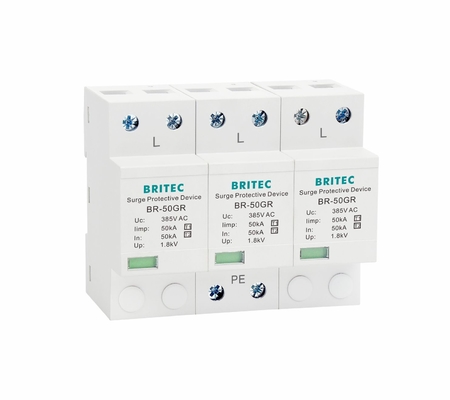

50 kA Surge Protection Devices single surge protector type 1 SPD
BRITEC is a real AC&DC surge protection device (SPD) manufacturer, also provide OEM/ODM service. some of the products approved by TUV, CB, CE, EAC according to IEC 61643-11:2011 and EN 61643-11:2012.
T1, Class B, Class I, Iimp(10/350μs): 25kA/50kA
T1+T2, Class B+C, Class I+II, Iimp(10/350μs): 12,5kA/25kA
T2, Class C, Class II, Imax(8/20μs): 20/40/80/100/120/200kA
T3, Class D, Class III, Uoc(1.2/50μs): 10kV, In(8/20μs): 5kA, Imax(8/20μs): 10kA
We have 20 years of experience in the lighting and surge protection field and provide 5 years limited warranty.
We got CB, CE, TUV,RoHS Certificate.
Our products are tested to international standards.
Surge Protection Devices Technology characteristic:
| Specification | BR-50GR 3P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 + Type 2 |
| SPD dassification according to IEC61643-11 | Class I + Class II |
| Max continuous 0perating a.c. voltage Uc | 385V |
| Lightning impulse current (10/350µs) limp | 50kA |
| Norminal discharge current (8/20µs) In | 50kA |
| Maximun discharge current (8/20µs) Imax | 160kA |
| Voltage protection level Up | ≤1.8V |
| Follow current extinguishing capability a.c. lifi | 3kA rms |
| Max. backup fuse | 500A gG |
| Response time tA | ≤100ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Certificate | CB/CE/ROHS/ISO9001 |
| Logo | Customized logo available |
| Design ability | We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
Surge Protection Devices Dimension:
Application:
Q1. Are you manufacturer or trading office?
A: We are manufacturer in Wenzhou, with the ability to export by ourselves.
Q2: Do you support OEM or ODM?
A: Yes, we support OEM & ODM.
Q3: How's your product markets?
A: Our products are welcomed among Europe, South America, Asia and certain countries in Africa, win
us a good reputation.
Q4. How’s your warranty?
A: All our products are 5 years warranted.
