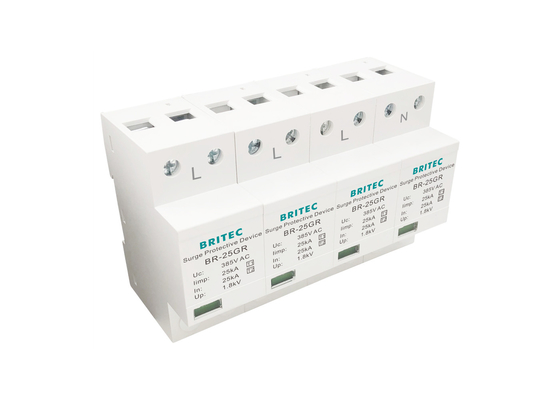

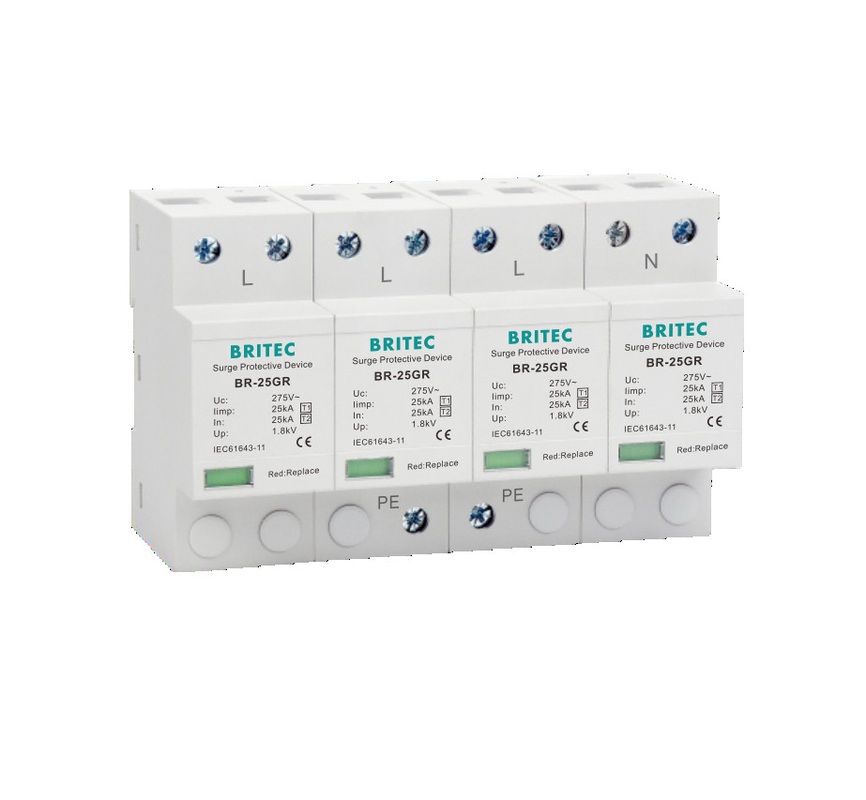

Name: CE TUV 50KA 4 Pole AC Surge Protector Lightning Arrester Surge Suppressor
Brand: Britec Electric Co., Ltd.
SKU: BR-25GR 4P
Price: Negotiable USD
Availability: InStock

Home Products Surge Protection Device

CE TUV 50KA 4 Pole AC Surge Protector Lightning Arrester Surge Suppressor

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR-25GR 4P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Suppressor	Type:	Ac Power Supply Protection
Class:	Class I	Uc:	150V/275V/350V
Iimp:	25kA	Pole Number:	4P
Material:	Thermoplastic UL94-V0	Protection:	IP20
Certificate:	TUV/CE/ROHS/ISO9001	Tu:	-40℃-80℃
Highlight:	Solar PV DPS Surge Protector , 500V DPS Surge Protector , TUV DPS Surge Arrester

25kA Surge Suppressor Product Description:

BR-25GR series surge protectors are suitable for ordinary AC power supply lightning and surge protection systems. The installation position is in the entire power supply system of the AC circuit to protect the impact of indirect lightning current, or other transient overvoltage and transient surges.

25kA Surge Suppressor Product capability parameter:

Specification	BR-25GR 4P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1
SPD dassification according to IEC61643-11	Class I
Max continuous 0perating a.c. voltage Uc	275V
Lightning impulse current (10/350µs) limp	25kA
Nominal discharge current (8/20µs) In	25kA
Maximum discharge current (8/20µs) Imax	100kA
Voltage protection level Up	≤1.8kV
Max. backup fuse	315A gG
Response time tA	≤100ns
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20

Dimension:

CE TUV 50KA 4 Pole AC Surge Protector Lightning Arrester Surge Suppressor 0

25kA Surge Suppressor Application range:

BR-25GR series are applied to equipotential bonding of the main low voltage distribution boxes in the building, providing overvoltage protection arising from the class B lightning strike to power supply system or disoperation. (Option from standard IEC61643- 1 and GB50343).

25kA Surge Suppressor Main Feature:

1. Easy maintenance;

2. Build-in temperature control circuit breaker, high security performance;

3. Red indicates broken, replacement notice, which is clear and easy distinguished;

4. Optional telesignalling monitoring interface, realizable remote monitoring;

5. External bus-bar wire, single module free assembled, easy project construction;

6. Assembled 1P, 2P, 3P, 4P etc modes, applied to various electric network systems.

Our Service:

1. We can provide samples, accept online orders.

2. Welcome OEM and ODM.

3. If you want to import some products for market testing, we can reduce the minimum order quantity.

4. Welcome to contact us.

Installation:

• Used in the lightning protection zones concept at boundary LPZ0B-LPZ1.

• Suitable as the first step of protection in incoming power supply panels and areas with greater exposure to the atmosphere, where installations are usually provided with an external lightning protection system.

• Type 1 is placed at the entrance point of the installation, in the main distribution board for a global protection of this installation.

Our company:

Britec is located in Yueqing city with beautiful scenery and developed science and education. It is specialized in power surge protection devices. A high-tech enterprise integrating product development, production and sales. The company's products have independent intellectual property rights and have passed the test of national professional institutions, which also obtained the state. The company has passed the ISO9001 International Quality Management System.

Certificatte:

Shipping:

Our factory:

FAQ:

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples .

Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample fee and courier cost.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.We will be the best quality and most affordable value for your service.

Q8: Can your price be discounted?
A : Our products are good of high quality, but if you order more, then we can give a discount, please inquiry .

Q9: Can we print our logo/website/company name on products?
A: Yes, we according to your advice to complete this batch of products.
