| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV |
| Model Number: | BR-50GR 1+1 |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Uc: | 150V/275V/320V | Origin: | Wenzhou, Zhejiang, China |
|---|---|---|---|
| Custom: | OEM | Item Name: | Surge Protective Device |
| Type: | Ac Surge Protector | Class: | Type 1 |
| Material: | Plastic | Pole Number: | 1+1 |
| Iimp: | 50kA | Protection: | IP20 |
| Highlight: | OEM Surge Protective Device Iimp,1.8 kV Surge Protective Device Iimp,50kA Surge Protective Device Iimp |
||

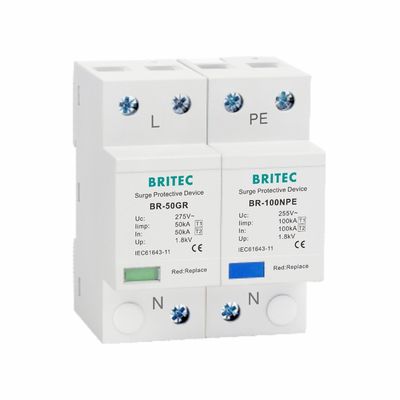

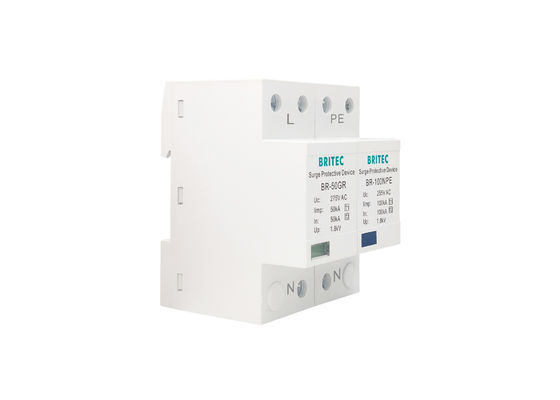

Iimp 50kA Class B Surge Protector Features:
Protect equipment from damage caused by surge pulse and transient overvoltage
With indication window.
Cable: 4 to 35mm²
1 phase, Spark gap based.
Installation form 35mm din rail
Uc=150V, 275V, 320V
Service temperature -40℃~+80℃
High performance varistor with thermal disconnection tripping device.
Iimp 50kA Class B Surge Protector Technology characteristic:
| Specification | BR-50GR 1+1 |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 |
| SPD dassification according to IEC61643-11 | Class I |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350µs) limp | 50kA |
| Norminal discharge current (8/20µs) In | 50kA |
| Voltage protection level Up | ≤1.8kV |
| Short-circuit current rating lsccr | 25kA rms |
| Max. backup fuse | 350A gG |
| Response time tA | ≤100ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm² |
| Cross-section area (Max.) | 35mm² |
| Enclosure material | Thermoplastic UL94-V0 |
Dimension:
Iimp 50kA Class B Surge Protector Application:
• Applied to low voltage AC power distribution system
• The BR-50GR 1P+NPE coordinated NPE lightning current arresters hold a special position among total current arresters. Due to their low voltage protection level, they can be directly coordinated with N-PE surge arresters of the BR-50GR surge arresters without additional decoupling coil.
• Protect equipment from damage caused by surge pulse and transient overvoltage
• Widely used in mobile communication base stations, microwave communication bureaus/stations, telecommunication rooms, industrial mining, civil aviation, financial securities and other power systems.
• Parallel between the AC power supply and the system equipment
• It is used in power supply systems such as TT and TN-S
Certification:
Company profile:
We have own factory. Most of staff have worked for our company for over 3 years. We have own designer, accept OEM & ODM, we can offer design service, high quality picture, video and so on. Our sale team members have several years' experience on the global trading. We have our own models of over hundreds until now.
FAQ:
Q1: Are you Factory?
A: Yes, we are a 17 year factory with SPDs.
Q2: What’s the MOQ and Lead Time?
A: Our MOQ is 100pcs/Model. And the lead time is 20 days after confirmed the payment.
Q3: What is the payment and shipping?
A: We accept T/T, Paypal, L/C etc. And the shipping: DHL, FedEx, TNT, EMS, UPS ect.
Q4: What should I do if I can not find the model in your shop?
A: We have more than 100+ models including AC surge arrester, solar surge protector, data lightning protector and LED lightning arrester. Please contact our team for more models.
Q5: How about the after sale service?
A: If any crack on delivering, we would try best to help to solve it, refund, resend goods, or other ways.
