| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV |
| Model Number: | BR-50GR 275 2P |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protection Device | Type: | Type 1 Spd |
|---|---|---|---|
| Standard: | IEC Standard | Protection Level Up: | 1.8 KV |
| Operating Temperature: | -40°C - 80°C | OEM/ODM: | Available |
| Protection Class: | IP20 | Condition: | 100% Original |
| Delivery Time: | 3-7days | Customized: | Yes |
| Fault Indication: | Green / Red | ||
| Highlight: | Type 1 Spd Surge Protective Device,Type 1 Surge Protective Device Arrester,1.8kV Type 1 Surge Protective Device |
||

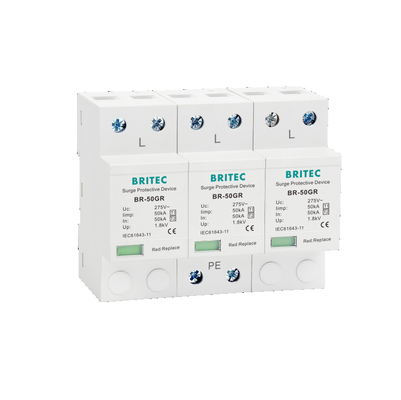

50kA three phase Type 1 Surge Protection Device TUV certificated BR-50GR 3+1
Ac Lighting Type 1 Surge Protection Device
A ac surge arrester is a device to protect electrical equipment from over-voltage transients caused by external (lightning) or internal (switching) events.
The main job of a power surge protection device system is to protect electronic devices from "surges."
Simply put, a lightning surge protector for electrical panel protects all the appliances in your home from voltage spikes, limiting excess electrical current by blocking its flow or shorting it to ground, much like a pressure relief valve.
Quality:
With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as RoHS, CE, CB, SEMKO, TUV etc.
Ac Lighting Type 1 Surge Protection Device Technology characteristic:
| Specification | BR-50GR 2P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 |
| SPD dassification according to IEC61643-11 | Class I |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350µs) limp | 50kA |
| Norminal discharge current (8/20µs) In | 50kA |
| Voltage protection level Up | 1.8kV |
| Follow current extinguishing capability a.c. lifi | 3kA rms |
|
Max. backup fuse |
500A gG |
|
Response time tA |
≤100ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm² |
| Cross-section area (Max.) | 35mm² |
|
Enclosure material |
Thermoplastic UL94-V0 |
Dimension:
Application:
For electrical installations.
Suitable for lightning protection of power supply system in areas with high risk of lightning strike (LPZ0B or interface between LPZ0B and LPZ1).
Can handle lightning currents and protect sensitive electronic equipment.
Application-optimized and prewired combined lightning current.
Particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (e.g.: buildings equipped with lightning rods).
Q1. Does your products listed for safety?
A: Yes, we have TUV, CE, CB these certifications.
Q2. What is the lead time for sample and mass order?
A: Samples is 10 days, and 20 days for mass order.
Q3. Do you accept the OEM / ODM order?
A: Yes.
Q4. Do you have MOQ for order?
A: General our MOQ is 100piece, but we can accept 1 piece as sample order.
Q5. Can we visit your factory before we cooperate with you?
A: Of course. Welcome to your visiting to our factory.
