| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV |
| Model Number: | BR-25GR 1+1 |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Uc: | 150V/275V/320V | Brand: | BRITEC |
|---|---|---|---|
| Origin: | Yueqing, Wenzhou, China | Item Name: | Surge Protective |
| Type: | Ac Surge Protector | Pole Number: | 1+1 |
| Iimp: | 25kA | In: | 25kA |
| Protection: | IP20 | Tu: | -40℃-80℃ |
| Highlight: | T1 Surge Protective Device,1.8kV Type 1 Surge Protector 275V,T1 Surge Protective Device 10/350us |
||

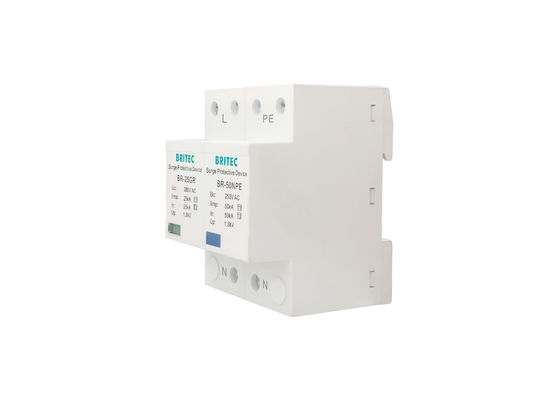

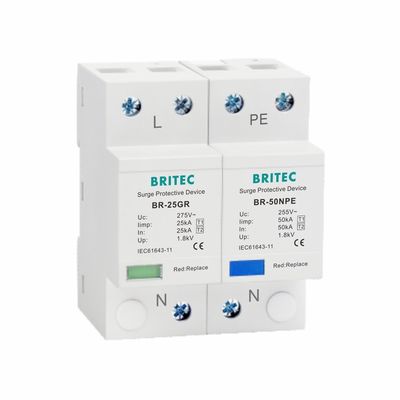

25kA Type 1 Surge Protector Features:
25kA Type 1 Surge Protector characteristic:
| Specification | BR-25GR 1+1 |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 |
| SPD dassification according to EN61643-11 | Class I |
| Max continuous 0perating a.c. voltage Uc | 275V/255V |
| Lightning impulse current (10/350µs) limp | 25kA/50kA |
| Norminal discharge current (8/20µs) In | 25kA/50kA |
| Voltage protection level Up | ≤1.8kV |
| Short-circuit current rating a.c. lsccr | 25kA rms / 100A rms |
| Max. backup fuse | 315A gG |
| Response time tA | ≤100ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm² |
| Cross-section area (Max.) | 35mm² |
| Enclosure material | Thermoplastic UL94-V0 |
Dimension:
Certification:
Company information:
Holding over 17 Years of Experience. Wenzhou Britec Electric Co. Ltd has been developing, producing and marketing SPDs for more than 17 years. Our product range includes AC surge protector, DC solar surge protection device, data SPDs, Led lightning arrester etc. We have designers to keep our catalog updated. Our experienced designs are the reasons why retailers and distributors from the Europe come to us. Orders Delivered in 20 Days. We deliver your off-the-shelf and OEM orders in 30 days. We have QC inspectors to assure quality. In fact, our products passed TUV and CE standards. Send us an inquiry today to learn more.
Test laboratory:
Packaging & Shipping:
FAQ:
1. What is your MOQ?
A: Usually our MOQ is 100pcs. But we accept lower quantity for your trial order. Please feel free to tell us how many pieces you need, we will calculate the cost correspondingly, hoping you can place large orders after checking quality of our products and know our service.
2. Can I get samples?
A: Sure. We usually send samples by FEDEX, UPS, TNT or DHL. If you have carrier account, it will be fine to ship with your account, if not, you can pay the freight charge to us, we will ship with our account. It takes about 7 days to reach.
3. How long is the sample lead time?
A: For existing samples, it takes 7 days. Anyway, we will response fast to your request.
4. How long is the production lead time?
A: It takes 20 days. We have large production capacity, which can ensure fast delivery time even for large quantity.
5. What format of the file do you need if I want my own design logo?
A: We have our own designer in house . So you can provide JPG,cdr or PDF, etc. We will make 3D drawing for mold or printing screen for your final confirmation based on technique.
6. Which kinds of certificate would you have?
A: TUV, CE, CB etc.
7. What is your payment term?
A: Our normal payment term is TT 30% deposite after order signed and 70% before shipping.
