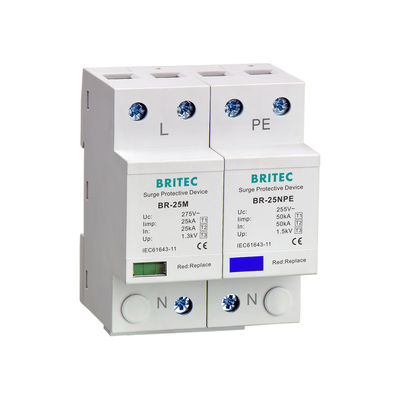

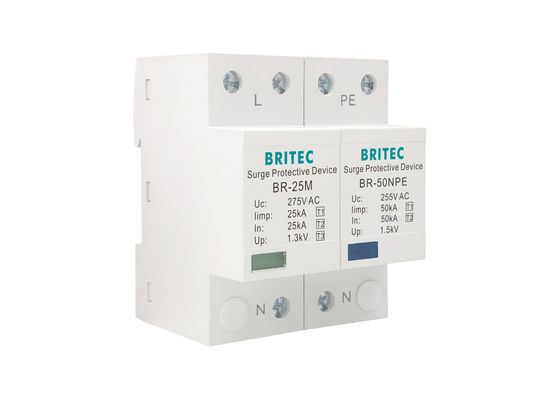

25kA Power Type 1 Surge Protector BR-25M 1+1 Low Voltage 275V/255V

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-25M 1+1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Rated Voltage:	230V	Uc:	275V/255V
Brand:	BRITEC	Item Name:	SPD
Type:	Type 1 + Type 2 + Type 3	Material:	Thermal Plastic
Type Item:	Surge Protection	Operation Voltage:	Low Voltage
Delivery Time:	20Days	Application:	AC System
Highlight:	25kA Power Type 1 Surge Protector , BR-25M 1+1 Type 1 Surge Protector , 255V Type1 Surge Protector Device

Type 1 Surge Protector 25kA Power Surge Protection Feature:

• Response time: ≤25ns/≤100ns

• Nominal discharge current (8/20us): 25kA

• Temperature range: -40℃—80℃

• Class I+II+III / Type 1+2+3 surge protection.

• Part number: BR-25M 1+1

• It consists of high performance varistor with thermal disconnection tripping device.

• Number of poles: 1P+NPE

• With temperature control circuit breaker and built-in over-current protective circuit, the modular SPD can release automatically to avoid fire danger when it breaks down.

• OEM support

• Surge protection device (SPD) is an indispensable device for lightning protection of electronic equipment.

• Maximum operating voltage: 275V/255V

• It is used of limit the instantaneous overvoltage of the power line to the voltage range that the equipment or system can withstand, or a powerful lightning current drains into the ground to protect the protected equipment or system from impact and damage.

• Enclosure material: Thermoplastic UL94-V0

Type 1 Surge Protector 25kA Power Surge Protection Products detail:

	BR-25M 1+1
SPD classification according to EN61643-11 with 5M	Type 1 + Type 2 + Type 3
SPD classification according to IEC61643-11 with 5M	Class I + Class II + Class III
Rated voltage Un	230V AC 50~60Hz
Max. continuous operating a.c. voltage (L-N / N-PE) Uc	275V/255V
Lightning impulse current (10/350us) (L-N / N-PE) Iimp	25kA / 50kA
Nominal discharge current (8/20us) (L-N / N-PE) In	25kA / 50kA
Maximum discharge current (8/20us) (L-N / N-PE) Imax	100kA
Voltage protection level (L-N / N-PE) Up	≤1.3kV / 1.5kV
Max. backup fuse	315A gG
Response time tA	≤25ns/≤100ns
Failure indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Operating temperature range Tu	-40℃—80℃
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20
Remote alarm	Optional
Color	White, Grey

Dimension:
25kA Power Type 1 Surge Protector BR-25M 1+1 Low Voltage 275V/255V 0

Type 1 Surge Protector 25kA Power Surge Protection Application:

• The Type 1 surge protector is usually installed at the junction of LPZ0B and LPZ1

• It can be installed in the low voltage power distribution cabinet/box of building.

• It is suitable for distribution cabinets and distribution boxes with outdoor access lines in buildings.

• Can handle lightning currents and protect sensitive electronic equipment.

• Widely used in communication equipment, power, security, traffic, industrial control and other fields of power protection.
