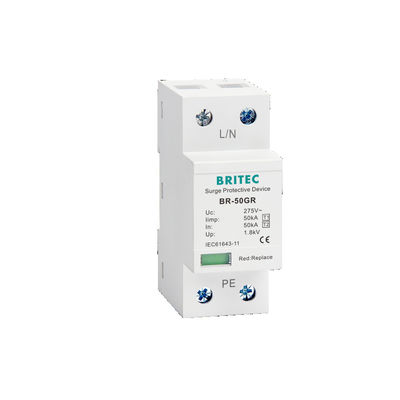

1P 50kA Type 1 Surge Protection Device Lightning Arresters Thunder Protector

Product Details:

Place of Origin:	China Zhejiang
Brand Name:	BRITEC
Certification:	TUV/CB/CE/ROHS/ISO9001
Model Number:	BR-50GR 275 1P

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Protection Device	Class:	Type 1
Material:	Thermoplastic UL94-V0	Place Of Origin:	Zhejiang, China (Mainland)
Mounting Type: DIN Rail:	DIN Rail 35 Mm	Brand Name:	BRITEC
Certificate:	TUV/CE/ROHS/ISO9001	Tu:	-40℃-80℃
Type Of Current:	AC	Function:	Lighting Protection
Uc:	275V
Highlight:	Type1 Surge Protection Lightning Arresters , 1P 50kA Type1 Surge Protection Device , ISO9001 Type1 Surge Thunder Protector

50 kA Surge Protection Devices single surge protector type 1 SPD

Surge Protection Devices Features:

Benefits

The impulse current of 50kA per pole (10/350 µs wave) satisfies all requirements for overvoltage surge protection

The early creation of the electric arc by its electronic ignition device reduces the protection level Up to an optimum value of 1.8kV

surge protector, also called a lightning arrester, is an electronic device that provides safety protection for various electronic devices, instruments, and communication lines.

Surge protection device(SPD) is an indispensable device for lightning protection of electronic equipment. It is used to limit the instantaneous overvoltage of the power line and signal transmission line to the voltage range that the equipment or system can withstand, or a powerful lightning current drains into the ground to protect the protected equipment or system from impact and damage.

Surge Protection Devices Technology characteristic:

Specification	BR-50GR 1P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1 + Type 2
SPD dassification according to IEC61643-11	Class I + Class II
Max continuous 0perating a.c. voltage Uc	275V
Lightning impulse current (10/350µs) limp	50kA
Norminal discharge current (8/20µs) In	50kA
Maximun discharge current (8/20µs) Imax	200kA
Voltage protection level Up	≤1.8kV
Follow current extinguishing capability a.c. lifi	3kA rms
Max. backup fuse	500A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Payment term	30% deposit in advance,70% before shipment,100% T/T in advance
Certificate	CB/CE/ROHS/ISO9001
Logo	Customized logo available
Design ability	We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

Surge Protection Devices Dimension:

1P 50kA Type 1 Surge Protection Device Lightning Arresters Thunder Protector 1

Products features:

1. Pluggable module, easy for installation and maintenance

2. High discharge capacity, quick response

3. Double thermal disconnection devices, providing more reliable protection

4. Green window will change when fault and also provide remote alarm control at the same time

Other type for choose:
1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA

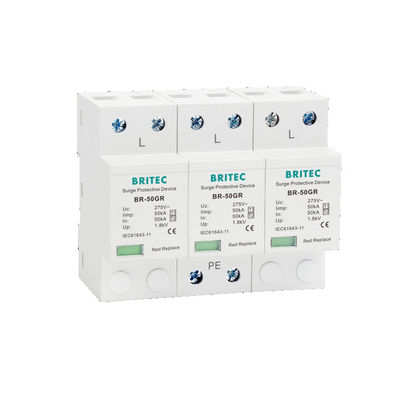

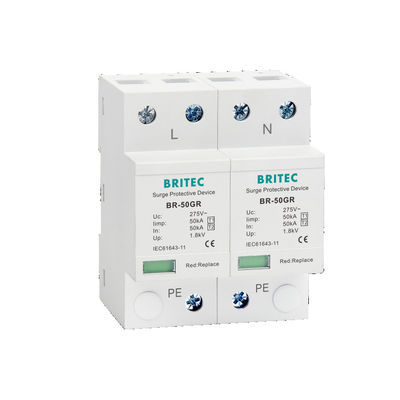

2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P
3,Maximum continuous operating voltage: 275V,320V,385V ,440V,550V,800V,1000V
Our Main Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.

Advantage:

• Unique designing, patent technology.

• High discharge capacity.

• Low residual voltage.

• DIN rail mountable and ease of installation.

• Quick thermal response self-protected design.

Our Services:

• 20 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Installation:

• Installed at the entrance point of the building, in the main distribution board of this installation.

• It should be used as part of lightning protection systems i.e. when lightning rods or meshed cages are

installed.

• Must install SPD strictly according to the wiring diagram provided.

• Better to under the guidance of professional electrician.

• Green tab, normal work status, Red tab, failure status, need to be replaced Rapidly.

Shipping:

Company information:

Britec Electric Wenzhou Co., Ltd. is located in the Yueqing city. Britec is dedicated to development,

manufacture, marketing and service of low voltage surge arrester products. The rapidly-developed

regional economy and friendly investment environment ensure Britec’s sustainable developments and

continuous innovations. It is professional in producing SPD.

FAQ:

Q1. Are you manufacturer or trading office?
A: We are manufacturer in Wenzhou, with the ability to export by ourselves.

Q2: Do you support OEM or ODM?
A: Yes, we support OEM & ODM.

Q3: How's your product markets?
A: Our products are welcomed among Europe, South America, Asia and certain countries in Africa, win
us a good reputation.

Q4. How’s your warranty?
A: All our products are 5 years warranted.
