| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CB/S |
| Model Number: | BR-40 3P |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Packaging Details: | Export packaging |
| Delivery Time: | 30 days after receipt of deposit |
| Payment Terms: | T/T |
| OEM: | YES | Brand: | BRITEC |
|---|---|---|---|
| Nominal Discharge Current: | 20kA | Maximum Discharge Current: | 40kA |
| Maximum Continuous Operating Voltage: | 150V/275V/320V/385V/440V | Dimensions: | 90mm X 54mm X 70mm |
| Response Time: | 25ns | Weight: | 375g |
| Rated Voltage: | 230V/400V | Protection Mode: | L-PE |
| Highlight: | OEM Type2 Power Surge Protector,20kA Type2 Surge Protector,3P Class Type2 Surge Protector |
||
This Type 2 Surge Protection Device is designed to provide reliable protection against electrical overvoltage events in commercial and industrial systems up to 230V/400V. With a maximum discharge current of 40kA and a 375g weight, this surge protection device is suitable for a range of applications.
This Type 2 surge protector is designed to meet IP20 protection level standards. The device is also designed to help prevent electric shock and provide reliable protection from incoming electric surges.
| BR150 40 3P | BR275 40 3P | BR320 40 3P | BR385 40 3P | BR440 40 3P | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V | 440V |
| Nominal discharge current (8/20us) In | 20kA | 20kA | 20kA | 20kA | 20kA |
| Max. discharge current(8/20μs) Imax | 40kA | 40kA | 40kA | 40kA | 40kA |
| Voltage protection level Up | ≤0.8kV | ≤1.3kV | ≤1.5kV | ≤1.8kV | ≤2.0kV |
| Voltage protection level 5kA Up | ≤0.6kV | ≤1kV | ≤1.2kV | ≤1.4kV | ≤1.6kV |
| Max. backup fuse | 125A gG | 125A gG | 125A gG | 125A gG | 125A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail | ||||
| Enclosure material | Thermoplastic UL94-V0 | ||||
| Degree of protection | IP20 | IP20 | IP20 | IP20 | IP20 |
| Order Code | B8301 | B8303 | B8305 | B8307 | B8309 |
| Order Code (With remote signaling) | B8302 | B8304 | B8306 | B8308 | B8310 |

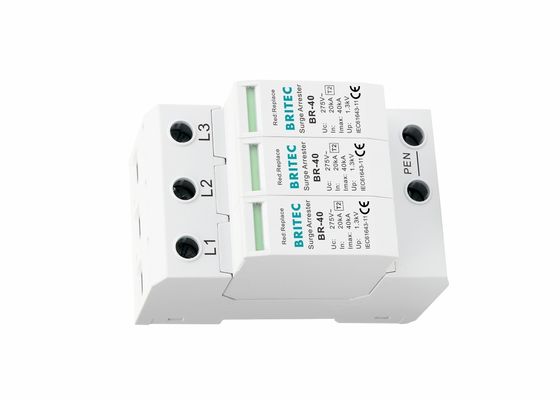

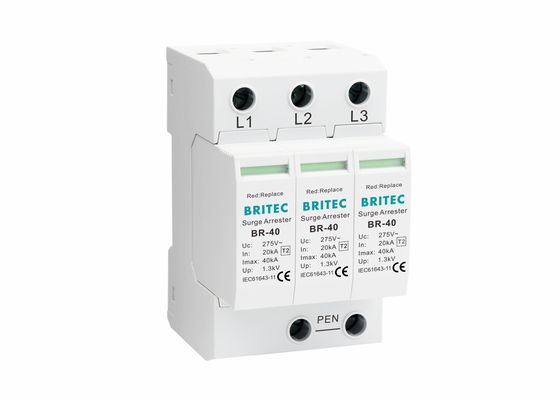

BRITEC BR-40 3P Type 2 Surge Protection Device can provide reliable overvoltage protection for low voltage power distribution systems, and is certified by CB/S. It is an ideal choice for effective protection from overvoltage in power distribution systems where Type 2 Surge Protection is required.
Packaging and Shipping for Type 2 Surge Protection Device:
The Type 2 Surge Protection Device will be packaged in a secure cardboard box designed to protect it from damage during shipment. The box will also include informational material, such as product instructions and safety warnings. The box will be sealed with adhesive tape.
The Type 2 Surge Protection Device will be shipped using a reliable and secure shipping service. The package will be tracked and insured to ensure it reaches its destination safely. We use a variety of shipping methods, including ground, air, and express delivery.
A1: The Brand Name is BRITEC and the Model Number is BR-40 3P.
A2: This product is from China.
A3: The certification for this product is CB/S.
A4: The minimum order quantity is 200pcs.
A5: The packaging is export packaging. The delivery time is 30 days after receipt of deposit.
