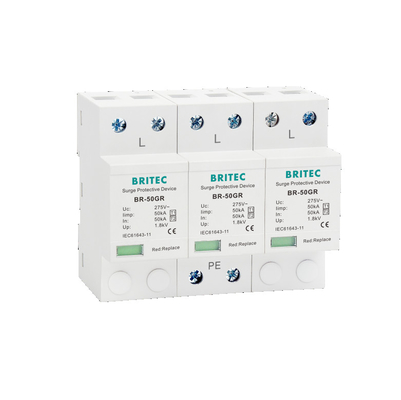

Name: BRITEC BR-50GR 275 4P T1 China type 1 surge protection device 275 Ac 3 Phase Spd Lightning Arrester Protector
Brand: Britec Electric Co., Ltd.
SKU: BR-50GR 275 4P
Price: Negotiable USD
Availability: InStock

Home Products Type 1 Surge Protection Device

BRITEC BR-50GR 275 4P T1 China type 1 surge protection device 275 Ac 3 Phase Spd Lightning Arrester Protector

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR-50GR 275 4P

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Lightning Protection	Type:	Class 1 Spd
Response Time::	≤100 Ns	Pole Number:	4P
Color:	White	Mounting Type:	DIN Rail 35 Mm
Technology:	Spark Gap Technology	OEM/ODM:	Available
Operating Temperature:	-40°C - 80°C	Standard:	IEC Standard
Highlight:	Surge Spd Lightning Arrester Protector , 4P T1 Type1 Surge Protective Device , DIN rail 35mm Surge Protective Device

50kA three phase Type 1 Surge Protection Device TUV certificated

Ac Lighting Type 1 Surge Protection Device Features:

With a thorough understanding of standards and regulations, BRITEC manufactures millions of surge protection devices (SPDs) every year.

There are three different types of surge protection device SPD according to IEC 61643-11:2011 and EN 61643-11:2012+A11:2018.

Type 1 / Class I / Class B

Type 2 / Class II / Class C

Type 3 / Class III / Class D

Ac Lighting Type 1 Surge Protection Device Technology characteristic:

Specification	BR-50GR 4P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1
SPD dassification according to IEC61643-11	Class I
Max continuous 0perating a.c. voltage Uc	275V
Lightning impulse current (10/350µs) limp	50kA
Norminal discharge current (8/20µs) In	50kA
Voltage protection level Up	1.8kV
Follow current extinguishing capability a.c. lifi	3kA rms
Max. backup fuse	500A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermoplastic UL94-V0

Dimension:

BR25R 3+1 1+1.jpg

Benefits

Easy installation

DIN rail mounting

Max nominal discharge phase 160 kA

Excellent protection for electrical panel

Ac Lighting Type 1 Surge Protection Device Advantage:

• Competitively priced against other brands.

• High current.

• High speed action response time.

• With overheat protection.

• high reliability.

• Large flow capacity, low residual pressure.

• The structure is rigorous, the installation is convenient, and the maintenance is simple.

Our Services:

• 20 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Ac Lighting Type 1 Surge Protection Device Installation and note:

• Usually installed in the low-voltage main distribution cabinet of the building incoming line.

• In the normal use of this surge protector, especially during the thunderstorm season, the grounding system of the surge protector should be checked in time to keep it in good grounding condition, otherwise the protection effect of the surge protector will be affected to varying degrees.
