Name: BR-80 275 2P SPD Surge Protector Arrester AC Class II Lightning Protection
Brand: Britec Electric Co., Ltd.
SKU: BR-80 275 2P
Price: Negotiable USD
Availability: InStock

Home Products Surge Protection Device

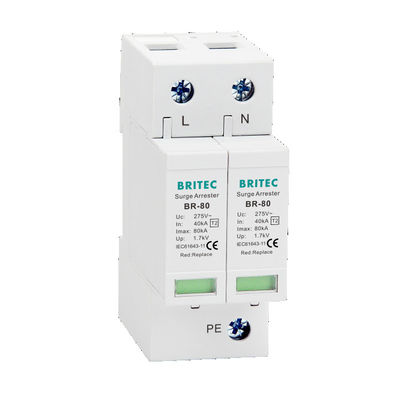

BR-80 275 2P SPD Surge Protector Arrester AC Class II Lightning Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE/ROHS/ISO9001
Model Number:	BR-80 275 2P

Payment & Shipping Terms:

Minimum Order Quantity:	20 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Protection Device	Type:	Surge Protection Device
Phase:	Single Phase	Rated Frequency:	50/60Hz
In:	40kA	Imax:	80kA
AC:	275V	Material:	Thermoplastic UL94-V0
Mounting:	DIN Rail 35 Mm.	Type Of Current:	AC
Certificate:	TUV,CE,CB,IEC Etc
Highlight:	Surge Protector Arrester , 275V Surge Protector Arrester Device , BR-80 275 Surge Protector Arrester

80ka 2P 275V AC Class II Surge Protection Device SPD for Industrial Power Lightning Protector

80ka 2P 275V AC Class II Surge Protection Device SPD Description:

AC power Surge Protective Devices (SPD) are designed to

meet all your surge protection needs for any low voltage installation.

These DIN rail mounted surge protectors are easy to install in any

standardized distribution panel or control cabinets. The SPDs are

equipped with a thermal disconnection device and provide real-time

fault indicators thus allowing complete operational safety.

80ka 2P 275V AC Class II Surge Protection Device SPD Parameters:

Model Name	BR-80 275 2P
Brand	BRITEC
Product Type	Surge Protection Device
SPD dassification according to EN61643-11	Type 2
SPD dassification according to EN61643-11	Class II
Max. Continuous Voltage Uc	275V
Max. discharge current (8/20µs) Imax	80kA
Norminal discharge current (8/20µs) In	40kA
Voltage protection level Up	≤1.7kV
Max. backup fuse	250A gG
Response time tA	≤25ns
For mounting on	35mm Din rail
Degree of protection	IP20
Manufacturer Guarantee	5 Years Guarantee
No. of Phases	Single-Phase
Number of Poles	two poles
Operation temperature range	-40 ~ +80 degree
Remote control contacts	Optional

Product detail:

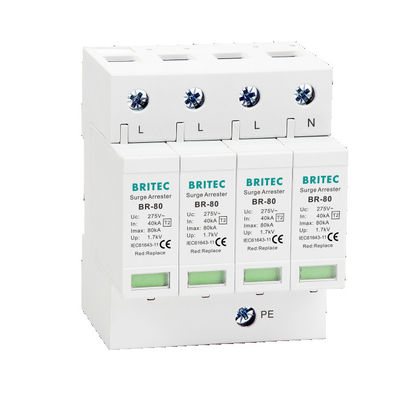

BR-80 275 2P SPD Surge Protector Arrester AC Class II Lightning Protection 0

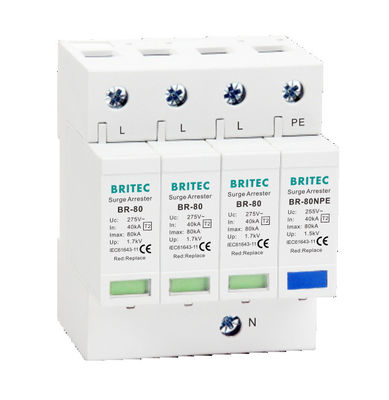

BR-80 275 2P SPD Surge Protector Arrester AC Class II Lightning Protection 1

80ka 2P 275V AC Class II Surge Protection Device SPD Application:

FAILED Indicator
18mm Width
35mm DIN Rail Mounting
High Discharge Capacity
Replacement Insert Modules

Selection of surge protector:

The grading of the surge protector (commonly known as lightning protection) is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition. Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.

Our Services:

1) Reply inquiry in 24 hours.

2) Answer your question detailed.

3) Freight forwarder: faster, safer, and convenient.

4) Please kindly inform us which items you are interested & the reasonable price will be provided you upon.

Company profile:

Wenzhou Britec Electronic Co., Ltd. is a professional engaged in SPD products research and development, design, production and service in the integration of modern professional surge protection production enterprises, production base is located in Yueqing, Zhejiang, China. With OEM/ODM high standard production workshop, has a new standard of high-end production equipment, perfect supporting factory layout is reasonable, the spacious production workshop, according to the international surge protector factory standard production design, is the domestic strong r & d manufacturers.

BR-80 275 2P SPD Surge Protector Arrester AC Class II Lightning Protection 2

Our certificate:

BR-80 275 2P SPD Surge Protector Arrester AC Class II Lightning Protection 3

Packing&Shipping:

Our products will be packed as follow: box inside, carton outside~
Shipping: By sea, by air or by express up to customer

BR-80 275 2P SPD Surge Protector Arrester AC Class II Lightning Protection 4

FAQ:

Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer.

Q: How long is your delivery time?
A: Generally it is 10-20 days if the goods are in stock. Or it is 15~30 days if the goods are not in stock, it is according to quantity.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.
