| Place of Origin: | China |
| Brand Name: | BRITEC |
| Model Number: | BR-60 4P |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Export packaging |
| Delivery Time: | 20 days after receipt of deposit |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 per month |
| Brand: | BRITEC | Max. Discharge Current: | 60kA |
|---|---|---|---|
| Dimension: | 90*72*70mm | Operating Temperature: | -40℃~+80℃ |
| Response Time: | 25ns | Rated Voltage: | 230V/400V |
| Protection Level: | IP20 | Rated Frequency: | 50/60Hz |
| Material: | Thermoplastic | ||
| Highlight: | DIN Rail Surge Protector Lightning Arrester,BR-60 IP20 Lightning Surge Protector,4P 60KA Home Lightning Arrester |
||
Type 2 Surge Protection Device is a reliable and effective device for protecting against voltage surges and spikes. It is designed to provide an efficient, reliable and cost-effective solution to protect electrical and electronic equipment from the damaging effects of overvoltage transients. It is a high-performance device with a response time of 25ns, a humidity of ≤95%RH, a protection level of IP20, a model number of BR-60 4P, and a weight of 0.5kg. It provides superior surge protection and is suitable for a wide range of applications, such asresidential, commercial, industrial, and medical. It is easy to install and maintain, and provides excellent protection against surges and spikes. It is a cost-effective solution for protecting your electrical and electronic equipment from damage due to voltage transients.
| BR150 60 4P | BR275 60 4P | BR320 60 4P | BR385 60 4P | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V |
| Nominal discharge current (8/20us) In | 30kA | 30kA | 30kA | 30kA |
| Max. discharge current(8/20μs) Imax | 60kA | 60kA | 60kA | 60kA |
| Voltage protection level Up | ≤1.0kV | ≤1.6kV | ≤1.8kV | ≤2.2kV |
| Voltage protection level 5kA Up | ≤0.5kV | ≤0.6kV | ≤1kV | ≤1.2kV |
| Max. backup fuse | 160A gG | 160A gG | 160A gG | 160A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail | |||
| Enclosure material | Thermoplastic UL94-V0 | |||
| Degree of protection | IP20 | IP20 | IP20 | IP20 |

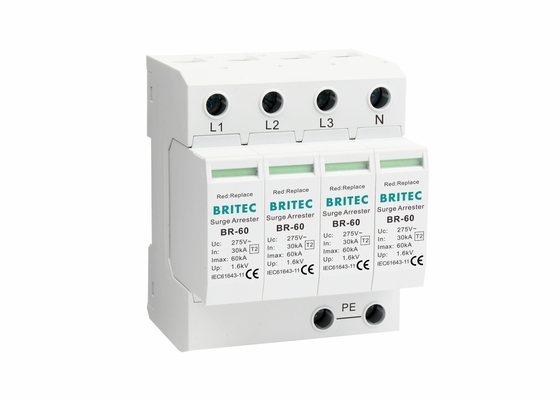

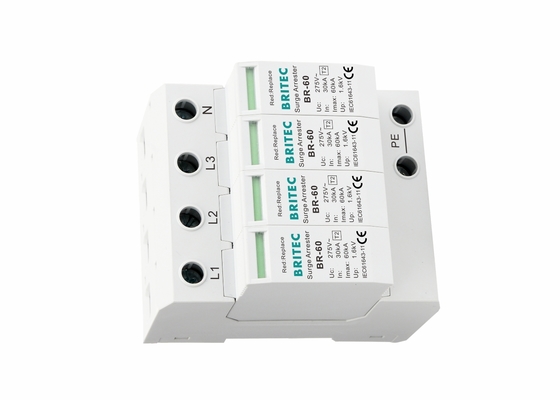

The BRITEC Type 2 Surge Protection Device (BR-60 4P) is a specially designed device that provides reliable protection against high voltage surges.
We offer customized service for BRITEC's Type 2 Surge Protection Device (BR-60 4P) with logo and packing requirements.
We provide technical support and service for Type 2 Surge Protection Device. Our experienced technical team can help you with any issue you might have with the product.
You can reach out to us via phone, email or chat for any questions or concerns you may have.
We also offer a warranty for Type 2 Surge Protection Device. If you experience any issues with the product, we will repair or replace it free of charge.
If you have any questions about our technical support and service for Type 2 Surge Protection Device, please don't hesitate to contact us. We look forward to hearing from you!
Packaging and Shipping for Type 2 Surge Protection Device
The Type 2 Surge Protection Device is packaged in a sturdy cardboard box to ensure safe delivery. The box also includes a label with the product name, model number, and other important details.
The device is shipped via a reliable courier service. Tracking information is provided to the customer so they can monitor the progress of their shipment.
Q1: What is the brand name and model number of the Type 2 Surge Protection Device?
A1: The brand name of the Type 2 Surge Protection Device is BRITEC and the model number is BR-60 4P.
Q2: Where is the Type 2 Surge Protection Device manufactured?
A2: The Type 2 Surge Protection Device is manufactured in China.
Q3: What is the minimum order quantity for the Type 2 Surge Protection Device?
A3: The minimum order quantity for the Type 2 Surge Protection Device is 100pcs.
Q4: How long is the delivery time for the Type 2 Surge Protection Device?
A4: The delivery time for the Type 2 Surge Protection Device is 20 days after receipt of deposit.
