| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR-60 3P |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Export packaging |
| Delivery Time: | 20 days after receipt of deposit |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 per month |
| Application: | It Is Mainly Used To Protect The Stable And Safe Operation Of Electrical Equipment In Thunderstorm Weather | Nominal Discharge Current: | 30kA |
|---|---|---|---|
| Dimension: | 90*54*70mm | Operating Temperature: | -40℃~+80℃ |
| Rated Frequency: | 50/60Hz | Material: | Thermoplastic |
| Weight: | 0.375kg | Response Time: | 25ns |
| Product Name: | Type 2 Surge Protection Device | OEM: | Yes |
| Highlight: | 3P Type 2 Surge Protector Device,T2 ClassII Type2 Surge Protector,Thermoplastic Type2 Surge Protector |
||
The Type 2 Surge Protection Device is a reliable and robust solution to protect your electrical equipment from high voltage surges. It is made from durable thermoplastic material and has a rated voltage of 230V/400V. It is suitable for DIN Rail installation and features a response time of 25ns and a screw terminal connection type.
| BR150 60 3P | BR275 60 3P | BR320 60 3P | BR385 60 3P | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V |
| Nominal discharge current (8/20us) In | 30kA | 30kA | 30kA | 30kA |
| Max. discharge current(8/20μs) Imax | 60kA | 60kA | 60kA | 60kA |
| Voltage protection level Up | ≤1.0kV | ≤1.6kV | ≤1.8kV | ≤2.2kV |
| Voltage protection level 5kA Up | ≤0.5kV | ≤0.6kV | ≤1kV | ≤1.2kV |
| Max. backup fuse | 160A gG | 160A gG | 160A gG | 160A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail | |||
| Enclosure material | Thermoplastic UL94-V0 | |||
| Degree of protection | IP20 | IP20 | IP20 | IP20 |

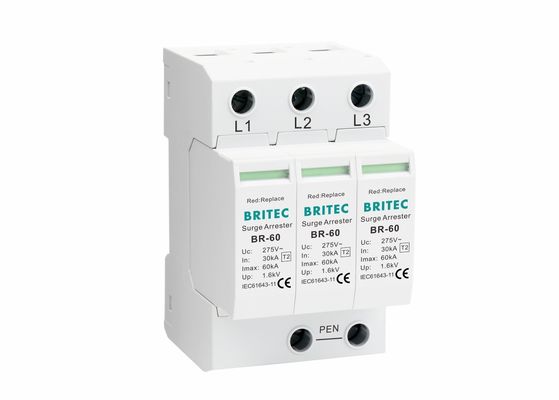

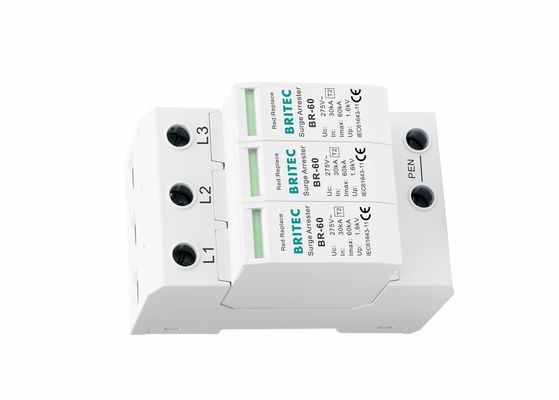

BRITEC BR-60 3P Type 2 Surge Protection Device is the perfect solution for protecting your electrical systems from voltage spikes. It is mainly used to protect the stable and safe operation of electrical equipment in thunderstorm weather.
We provide outstanding technical support and service for our Type 2 Surge Protection Device. Our customer service team is available to provide pre-sales advice, technical troubleshooting, and after-sales support.
Our customer service team is available to answer all your questions about our Type 2 Surge Protection Device. We provide comprehensive product information including product specifications, features, and pricing. We also provide installation and configuration advice to ensure the product meets your needs.
If you experience any technical issues with our Type 2 Surge Protection Device, our customer service team is available to help.
Our customer service team is available to provide after-sales support. We provide advice on product use and maintenance, as well as replacement parts and accessories.
Packaging and Shipping of Type 2 Surge Protection Device:
The Type 2 Surge Protection Device shall be securely packaged in a strong cardboard box or carton, labelled with the type of product, supplier's name, and other relevant information. The package should be sufficiently robust to ensure that the product is not damaged during transit.
The Type 2 Surge Protection Device shall be shipped in accordance with the applicable international and national regulations.
A1: A Type 2 Surge Protection Device is an electrical device designed to protect electrical circuits from transient overvoltage. BRITEC's BR-60 3P device is designed to provide surge protection for three-phase power supply systems.
A2: The minimum order quantity for BRITEC's BR-60 3P Type 2 Surge Protection Device is 100pcs.
A3: BRITEC's BR-60 3P Type 2 Surge Protection Device is packaged in export packaging.
A4: The delivery time for BRITEC's BR-60 3P Type 2 Surge Protection Device is 20 days after receipt of deposit.
A5: The payment terms for BRITEC's BR-60 3P Type 2 Surge Protection Device is T/T.
