| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR-60 1P |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Export packaging |
| Delivery Time: | 20 days after receipt of deposit |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 per month |
| Origin: | Wenzhou | Brand: | BRITEC |
|---|---|---|---|
| Maximum Continuous Operating Voltage: | 150V/275V/320V/385V | Voltage Rating: | 230V/400V |
| Weight: | 125g | OEM: | Yes |
| Protection Level: | Type 2 | Product Name: | Type 2 Surge Protection Device |
| Maximum Discharge Current: | 60kA | Model: | BR-60 1P |
| Highlight: | Type2 Surge Protection Device 60kA,1P Lightning Arrester Surge Protector,400V Lightning Arrester Surge Protector |
||
BRITEC Type 2 Surge Protection Device is designed to protect against transient overvoltage. It can respond to surges within 25ns, which ensures its rapid response to transient overvoltage. The operating temperature ranges from -40℃ to +80℃, and the relative humidity is below 95%RH, making it suitable for various harsh environments. The Type 2 Surge Protection Device provides reliable protection against surges and helps to ensure the stability of the power system. It is a perfect choice for protecting against transient overvoltage.
| BR150 60 1P | BR275 60 1P | BR320 60 1P | BR385 60 1P | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V |
| Nominal discharge current (8/20us) In | 30kA | 30kA | 30kA | 30kA |
| Max. discharge current(8/20μs) Imax | 60kA | 60kA | 60kA | 60kA |
| Voltage protection level Up | ≤1.0kV | ≤1.6kV | ≤1.8kV | ≤2.2kV |
| Voltage protection level 5kA Up | ≤0.5kV | ≤0.6kV | ≤1kV | ≤1.2kV |
| Max. backup fuse | 160A gG | 160A gG | 160A gG | 160A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail | |||
| Enclosure material | Thermoplastic UL94-V0 | |||
| Degree of protection | IP20 | IP20 | IP20 | IP20 |

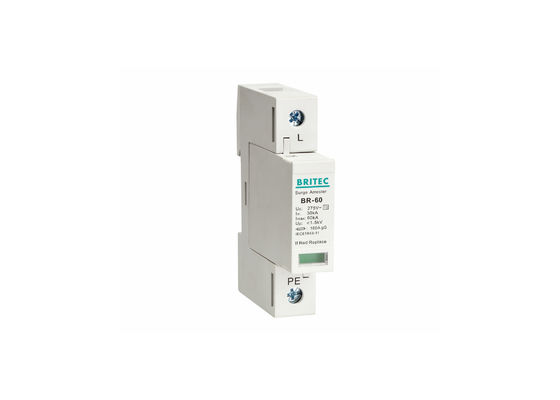

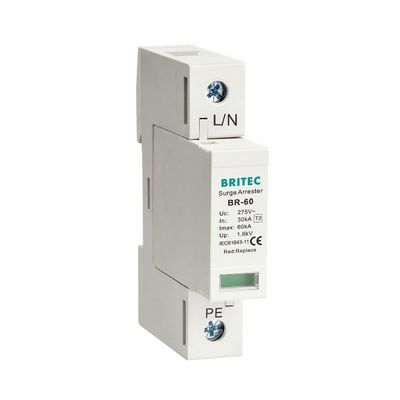

BRITEC Type 2 Surge Protection Device BR-60 1P is designed to protect your electronic devices from damage caused by power surges, providing an effective protection for your home and office appliances.
Type 2 Surge Protection Device will be packaged in a secure and durable box to protect it during transit. Additionally, the box should be labeled with the product name, model number, and a brief description of its contents.
We recommend shipping Type 2 Surge Protection Device with a reliable delivery service such as UPS or FedEx. The shipment should also be properly labeled with the customer's name and address, as well as the package contents.
Q1: What is the Brand Name of this Type 2 Surge Protection Device?
A1: The Brand Name of this Type 2 Surge Protection Device is BRITEC.
Q2: What is the Model Number of this Type 2 Surge Protection Device?
A2: The Model Number of this Type 2 Surge Protection Device is BR-60 1P.
Q3: Where is this Type 2 Surge Protection Device manufactured?
A3: This Type 2 Surge Protection Device is manufactured in China.
Q4: What is the minimum order quantity for this Type 2 Surge Protection Device?
A4: The minimum order quantity for this Type 2 Surge Protection Device is 100pcs.
